Home >> Mercedes Benz >> 2005 >> C 230 CL (203.740) L4-1.8L SC (271.948) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Timing Components >> Variable Valve Timing >> Variable Valve Timing Solenoid >> Service and Repair

Variable Valve Timing Solenoid: Service and Repair



AR05.20-P-7295PK Remove/install solenoid camshaft

Component Identification:

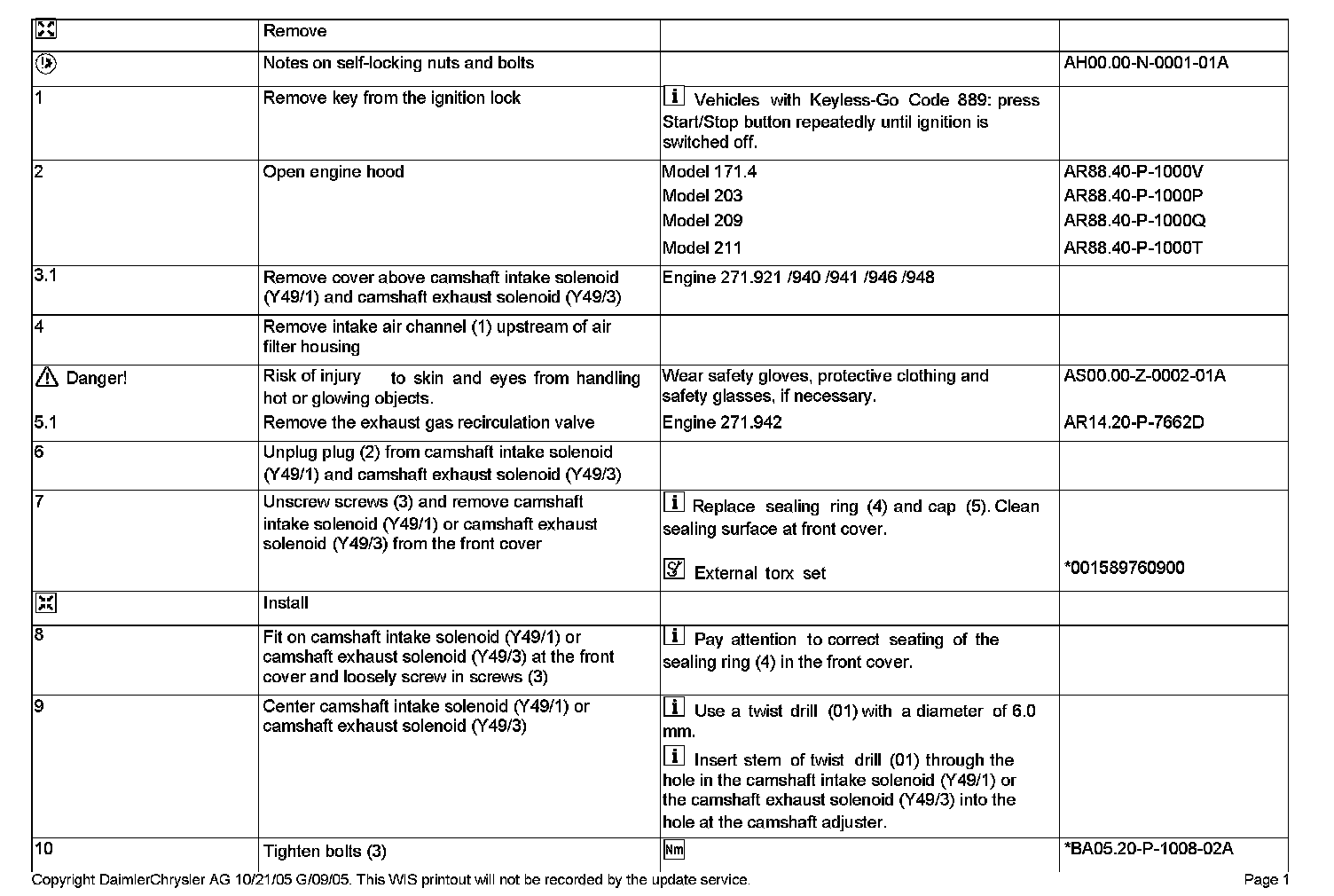

Steps 1-10:

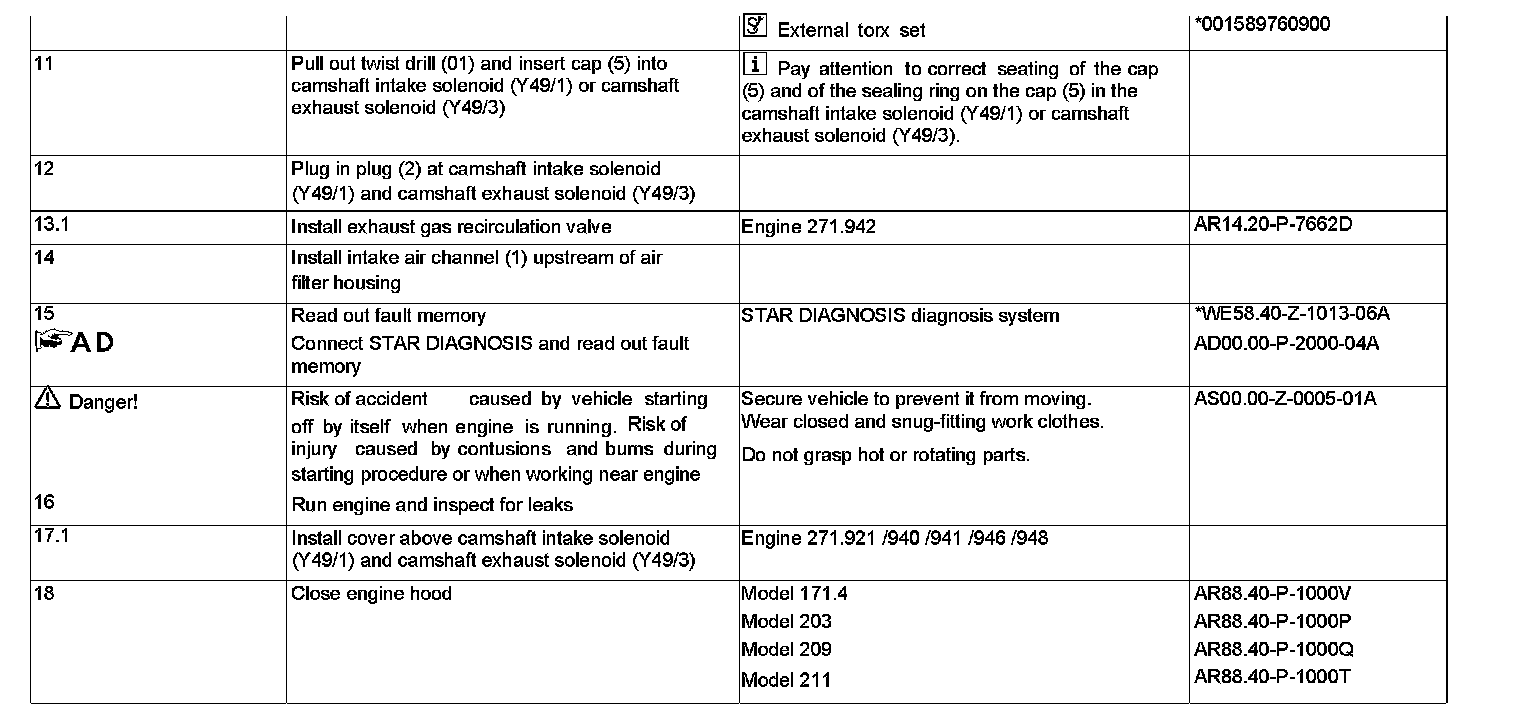

Steps 11-18:

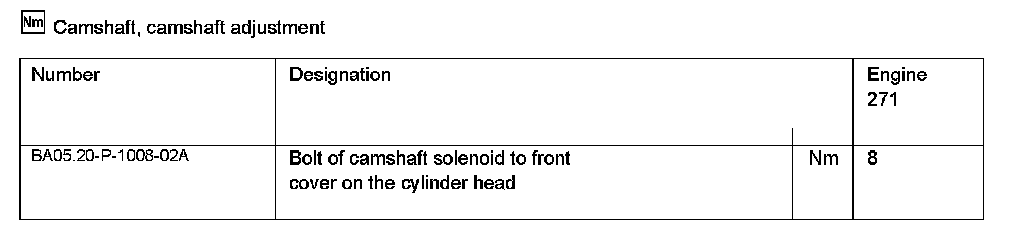

Camshaft, Camshaft Adjustment:

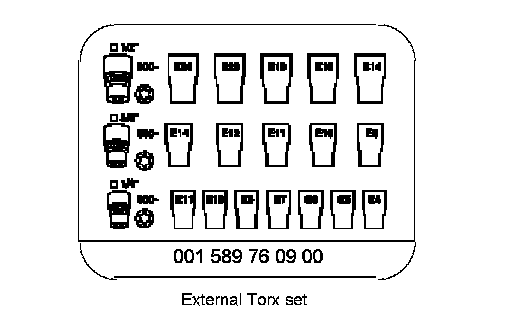

Special Tools:

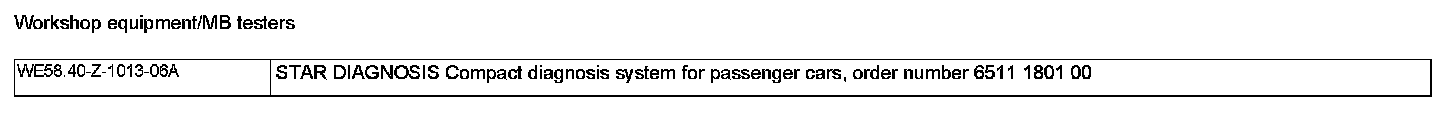

Workshop Equipment/MB Testers:
