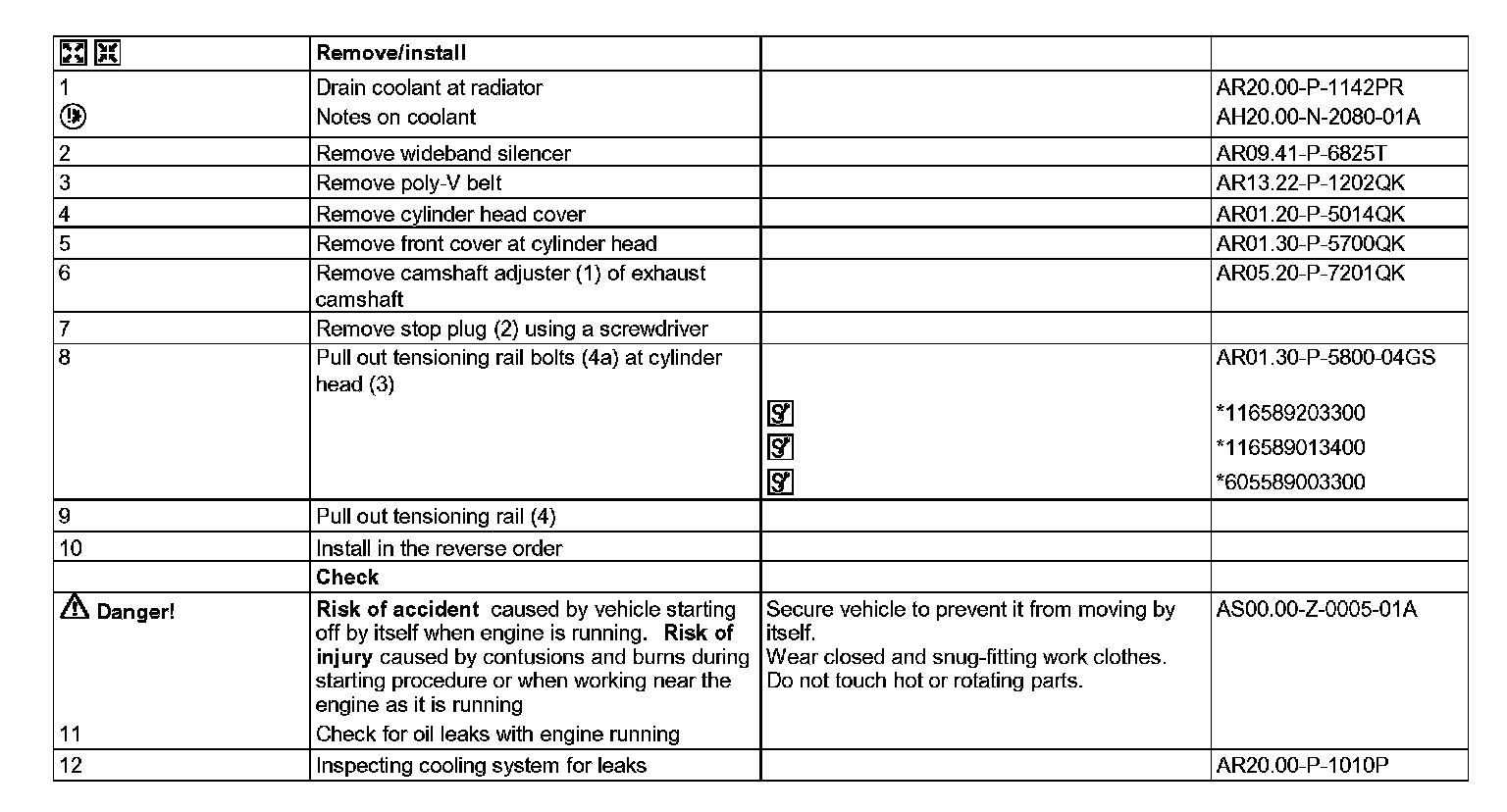

AR05.10-P-8127QK Remove, Install Tensioning Rail

AR05.10-P-8127QK Remove, Install Tensioning Rail






1 Camshaft adjuster of exhaust camshaft
2 Plug
3 Cylinder head
4 Tensioning rail
4a Tensioning rail bolts








116 589 20 33 00
Impact extractor





116 589 01 34 00
Threaded stud





605 589 00 33 00
Puller
