AR05.10-P-8432QK Remove/Install Slide Rail In Cylinder Head
AR05.10-P-8432QK Remove/Install Slide Rail In Cylinder Head

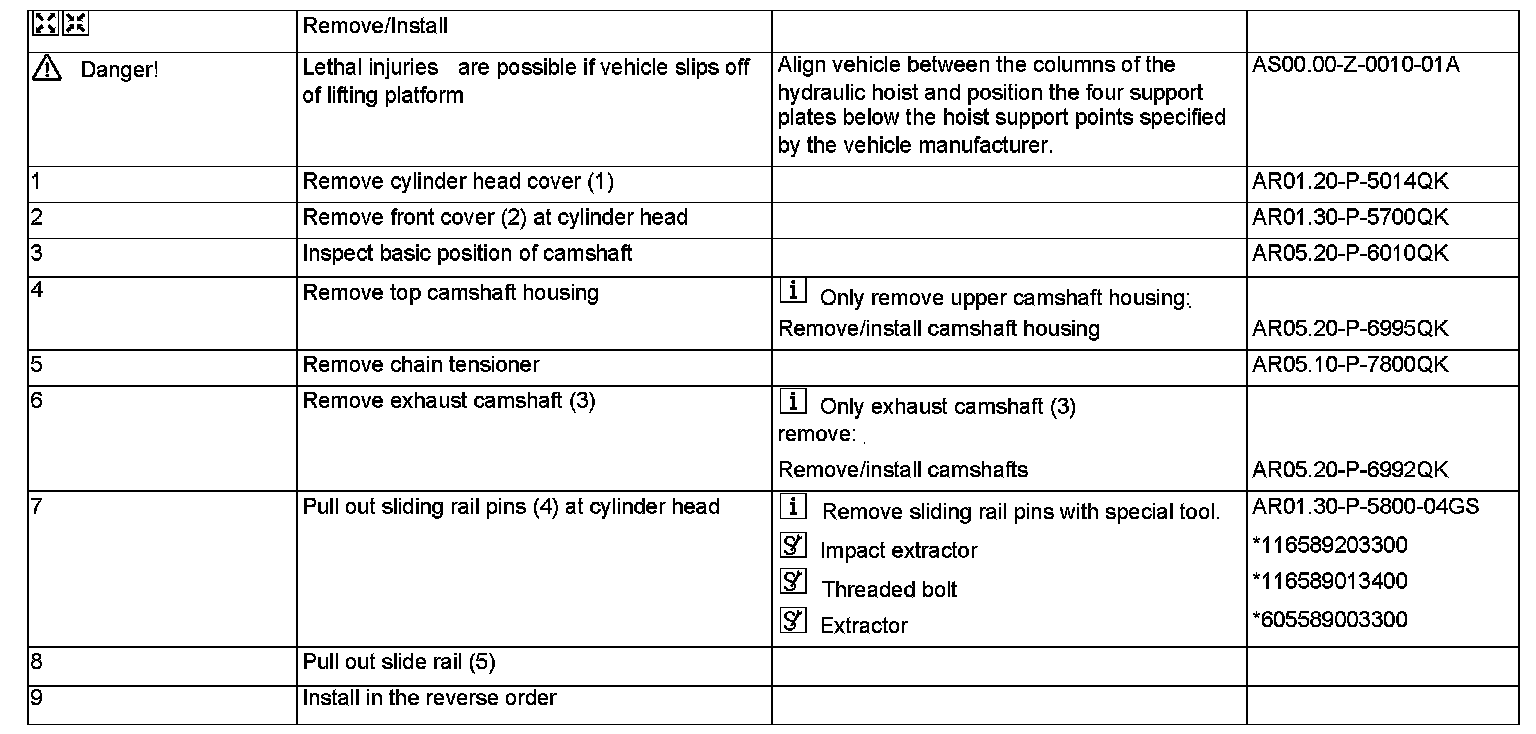

Remove/install slide rail in cylinder head
