Home >> Mercedes Benz >> 2005 >> C 230 CL (203.740) L4-1.8L SC (271.948) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Timing Components >> Balance Shaft Chain >> Service and Repair >> AR03.20-P-1200Q Remove/Install Timing Chain of Lanchester Balancer

AR03.20-P-1200Q Remove/Install Timing Chain of Lanchester Balancer

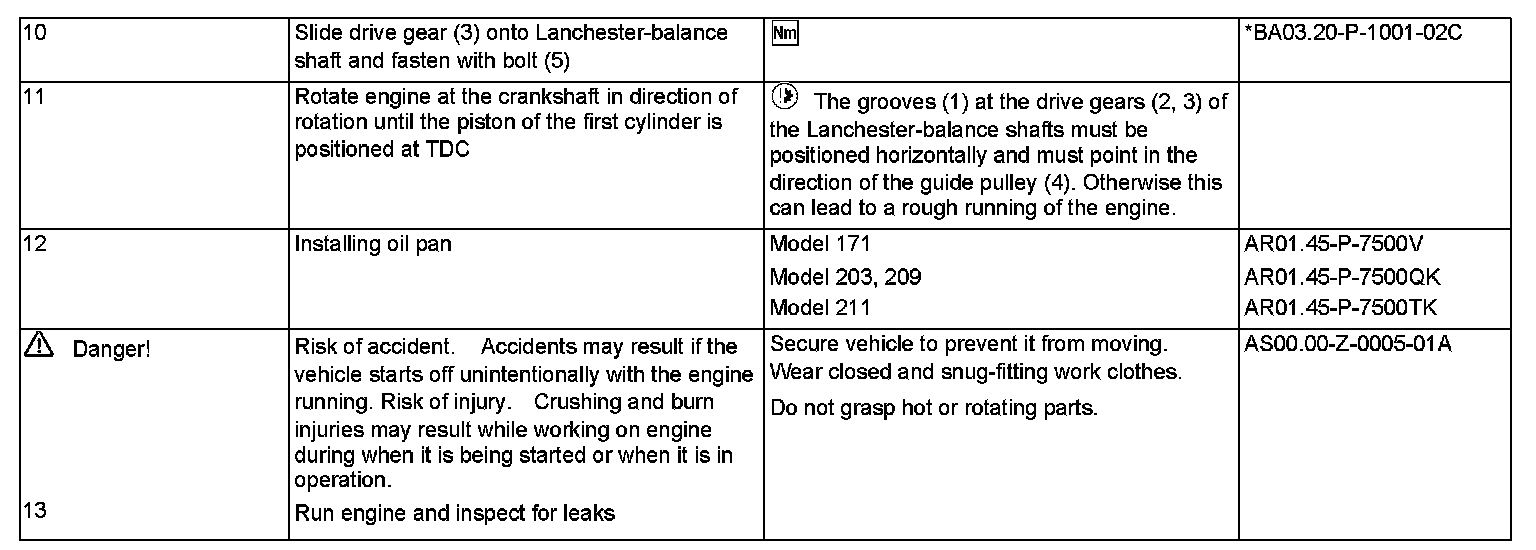

Remove/install timing chain of Lanchester balancer
