Home >> Mercedes Benz >> 2005 >> C 230 CL (203.740) L4-1.8L SC (271.948) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Cylinder Head Assembly >> Service and Repair >> Removal and Replacement >> AR01.30-P-5700QK Remove/Install Front Cover on Cylinder Head

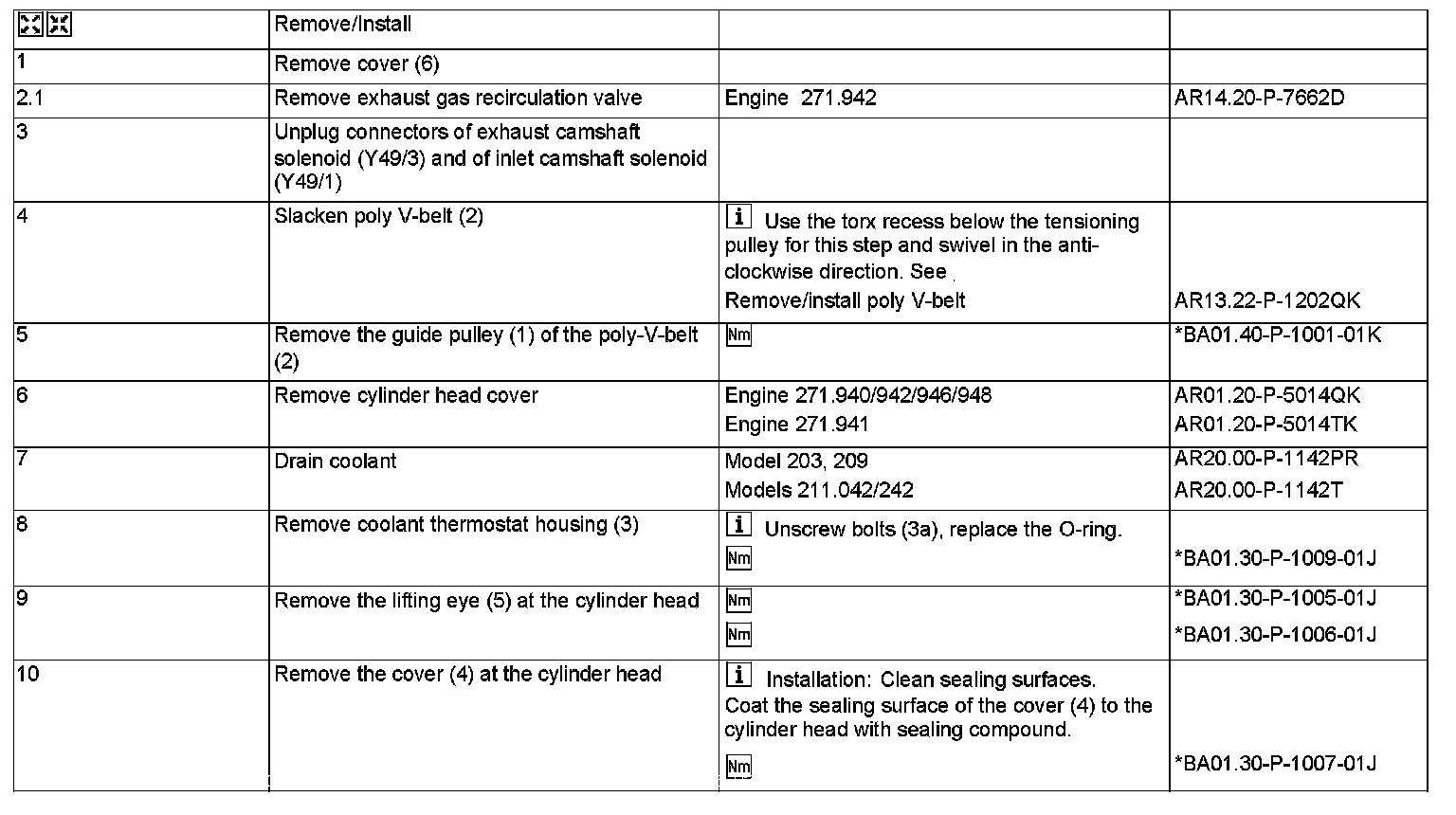

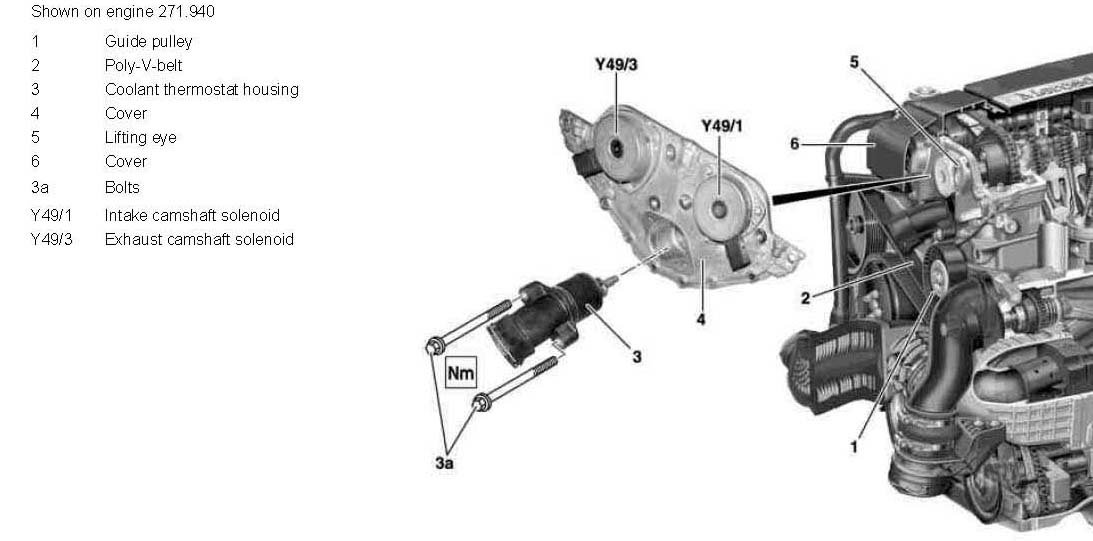

AR01.30-P-5700QK Remove/Install Front Cover on Cylinder Head




Remove/install front cover on cylinder head
