Passenger Seat Control Module PE91.29-U-2105FA




Passenger Seat Control Module PE91.29-U-2105FA

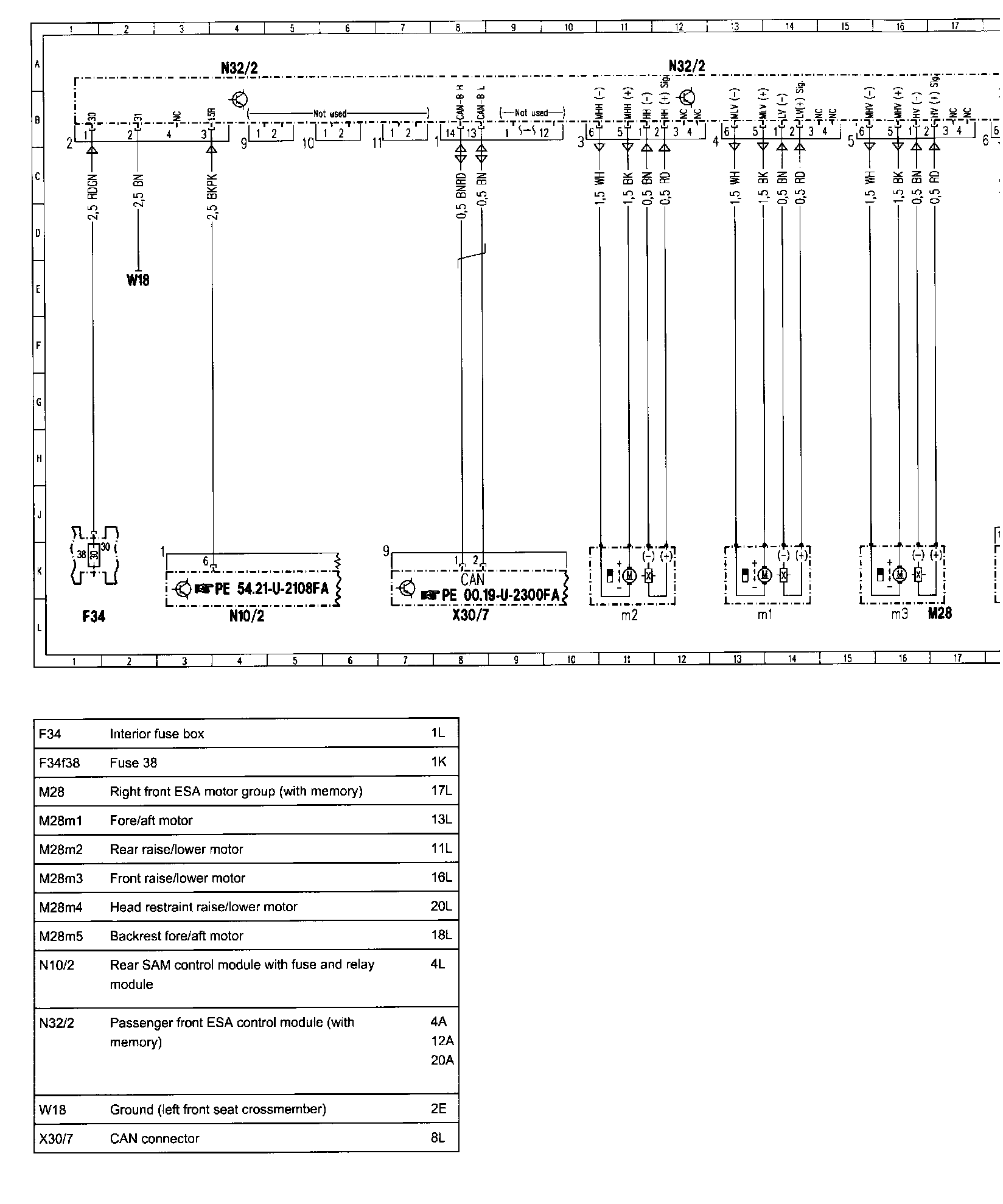

c�~fWiring Diagram PE91.29-U-2102FA:

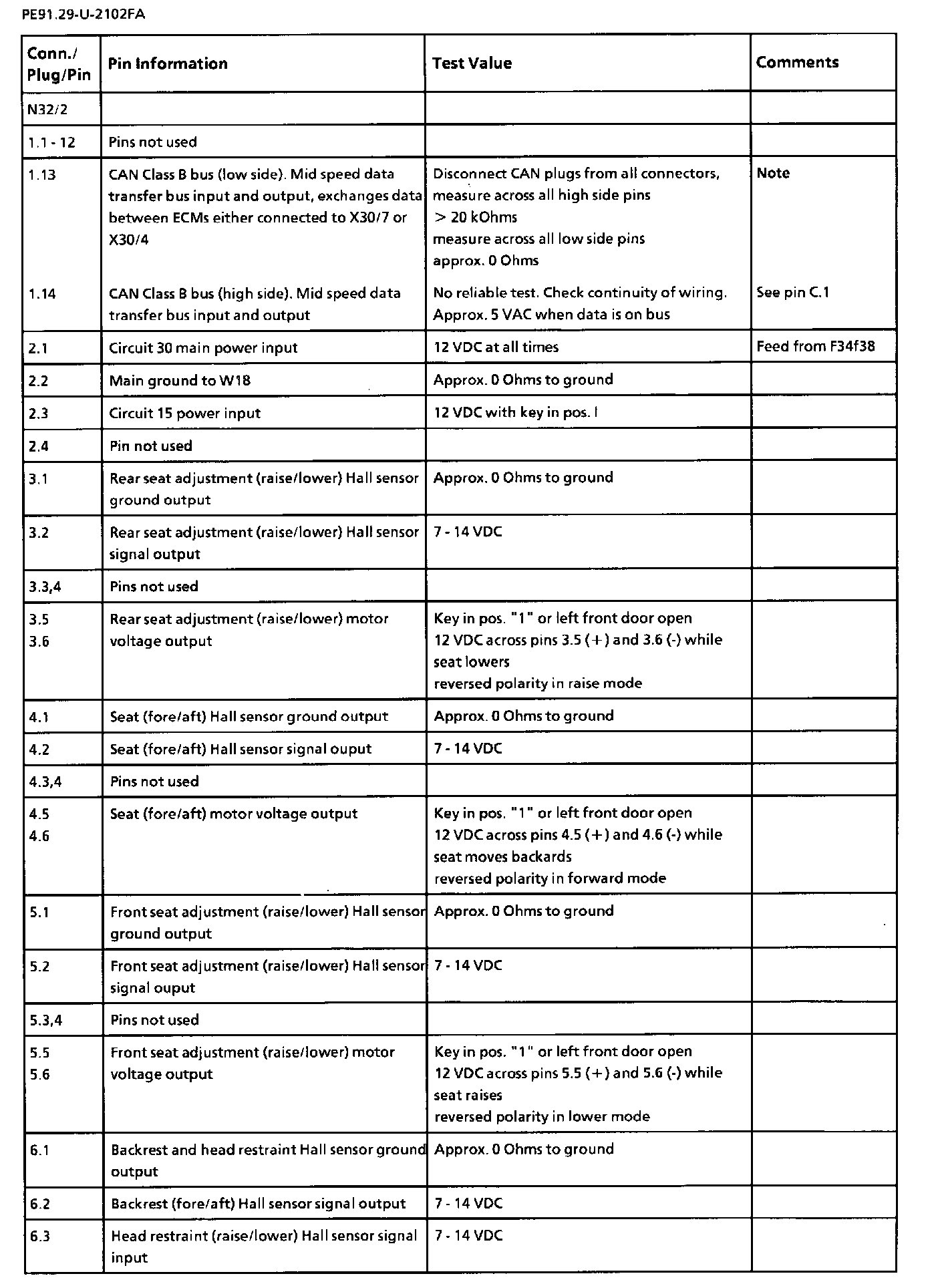

Pin Information, Part 1:

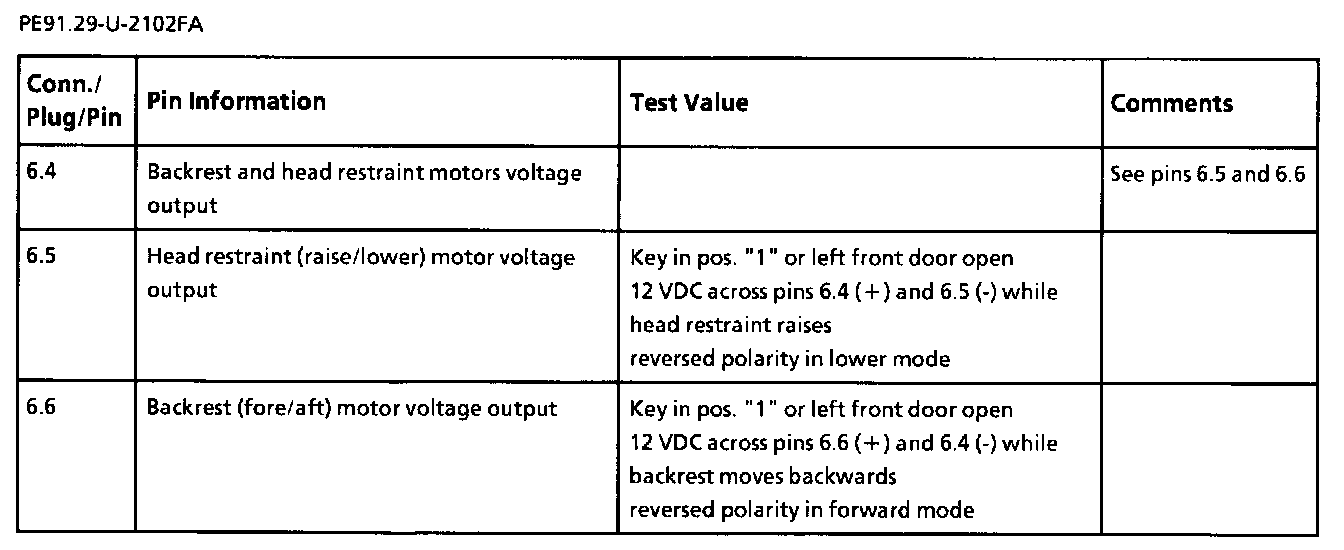

Pin Information, Part 2:






Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
