Driver's Seat Control Module PE91.29-U-2104FA

Driver's Seat Control Module PE91.29-U-2104FA

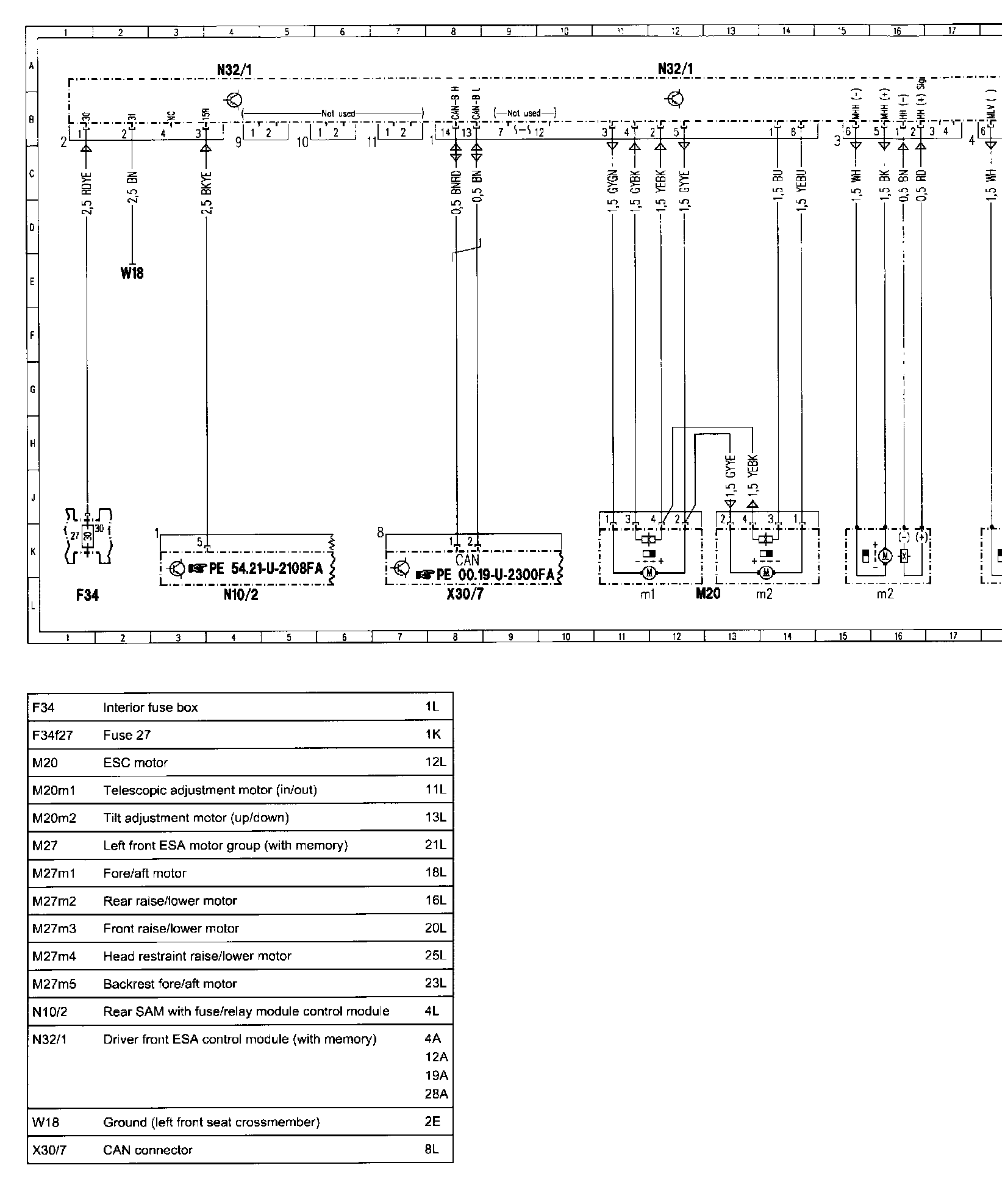

��|fWiring Diagram PE91.29-U-2101FA:

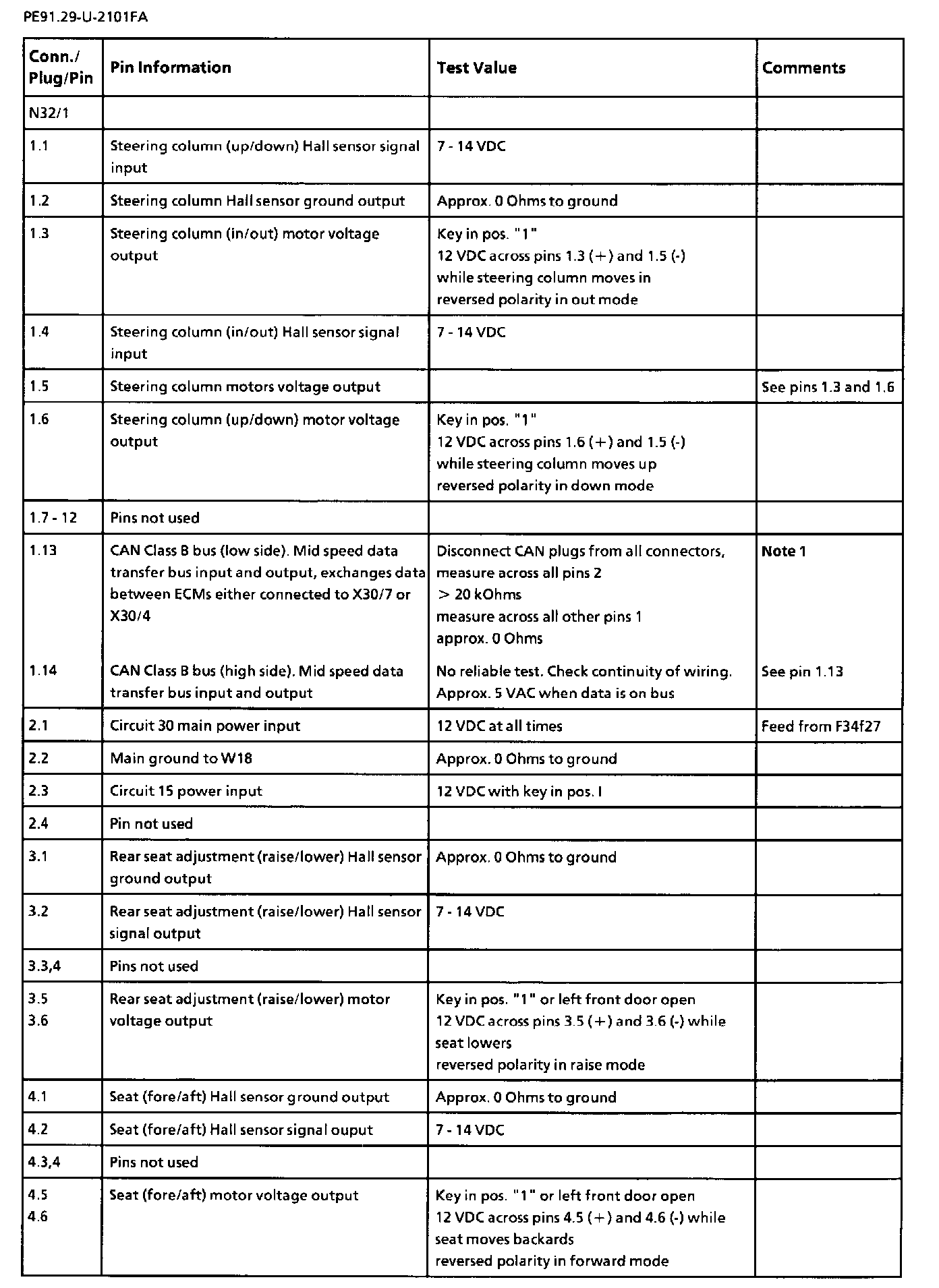

Pin Information, Part 1:

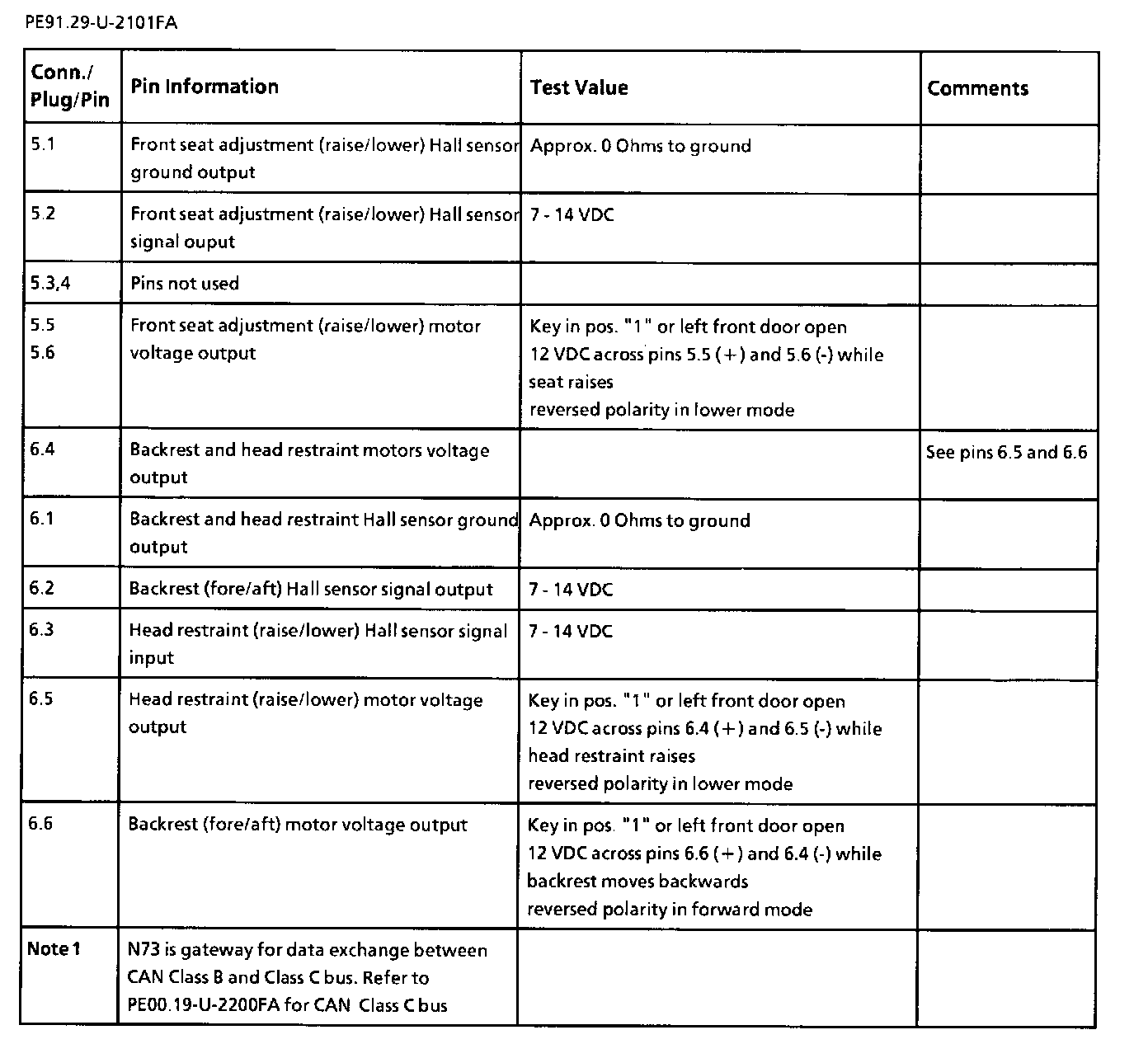

Pin Information, Part 2:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
