Trunk / Liftgate: Adjustments

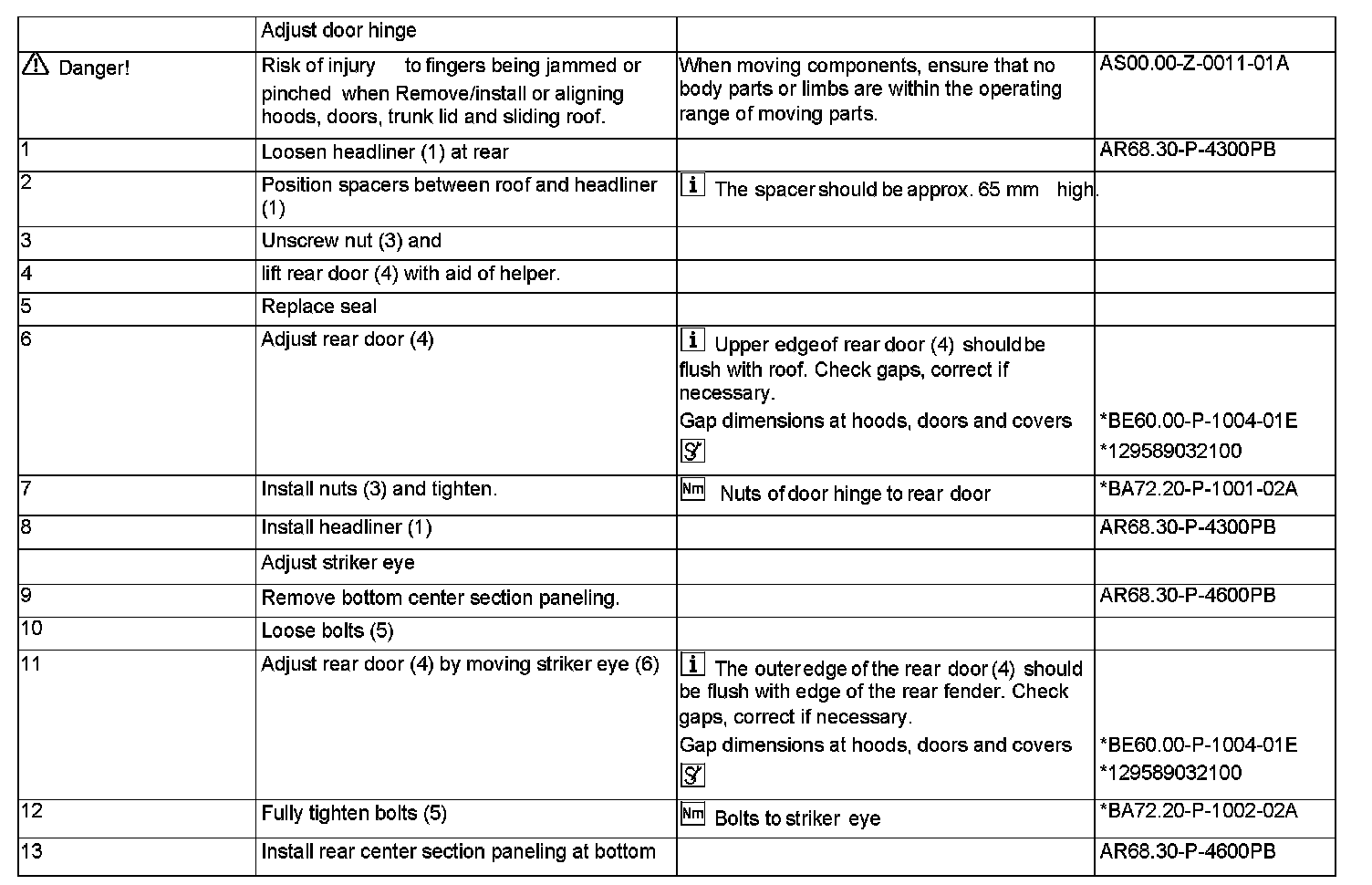

AR72.20-P-3510PB Adjust Rear-End Door
Test Values For Gaps On Hoods, Doors and Lids:
Rear Door:
