Home >> Mercedes Benz >> 2004 >> SLK 230 (170.449) L4-2.3L SC (111.983) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Cylinder Head Assembly >> System Specifications >> Inspection Data of Valves

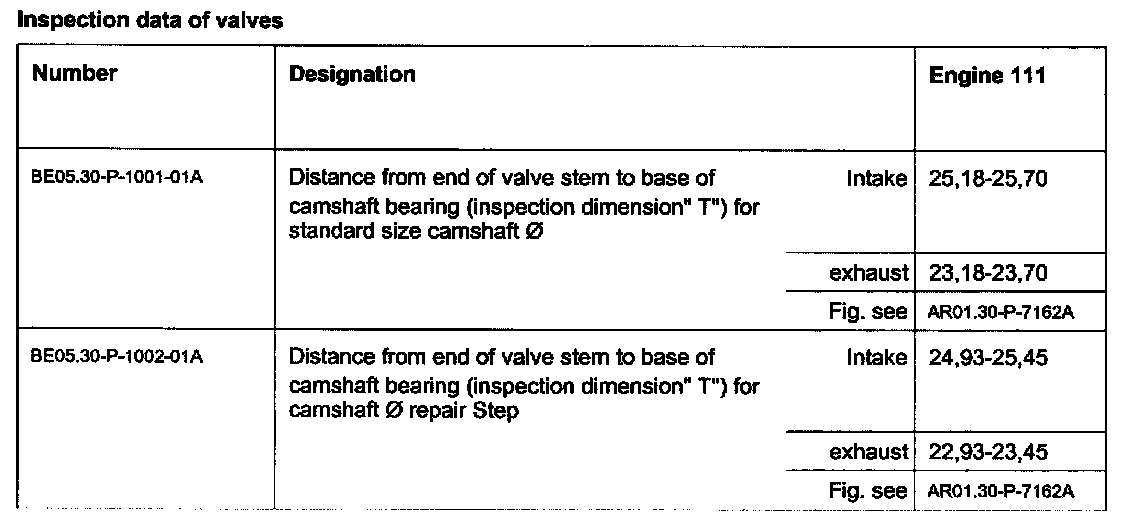

Inspection Data of Valves




Inspection Data Of Valves

Inspection Data Of Valves:
