Relay Module: Diagrams



Fuse and Relay Module (K40)

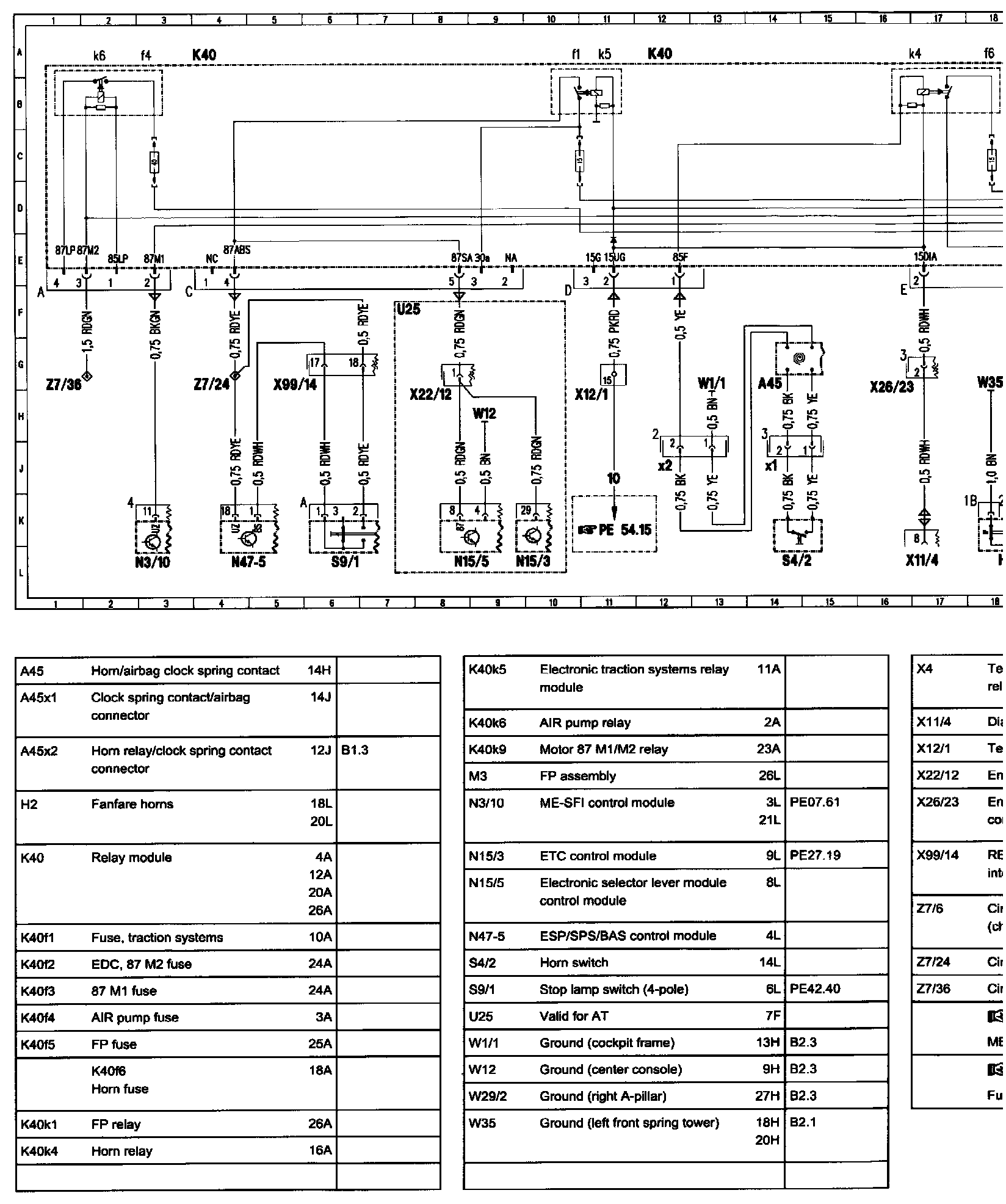

K mWiring Diagram:

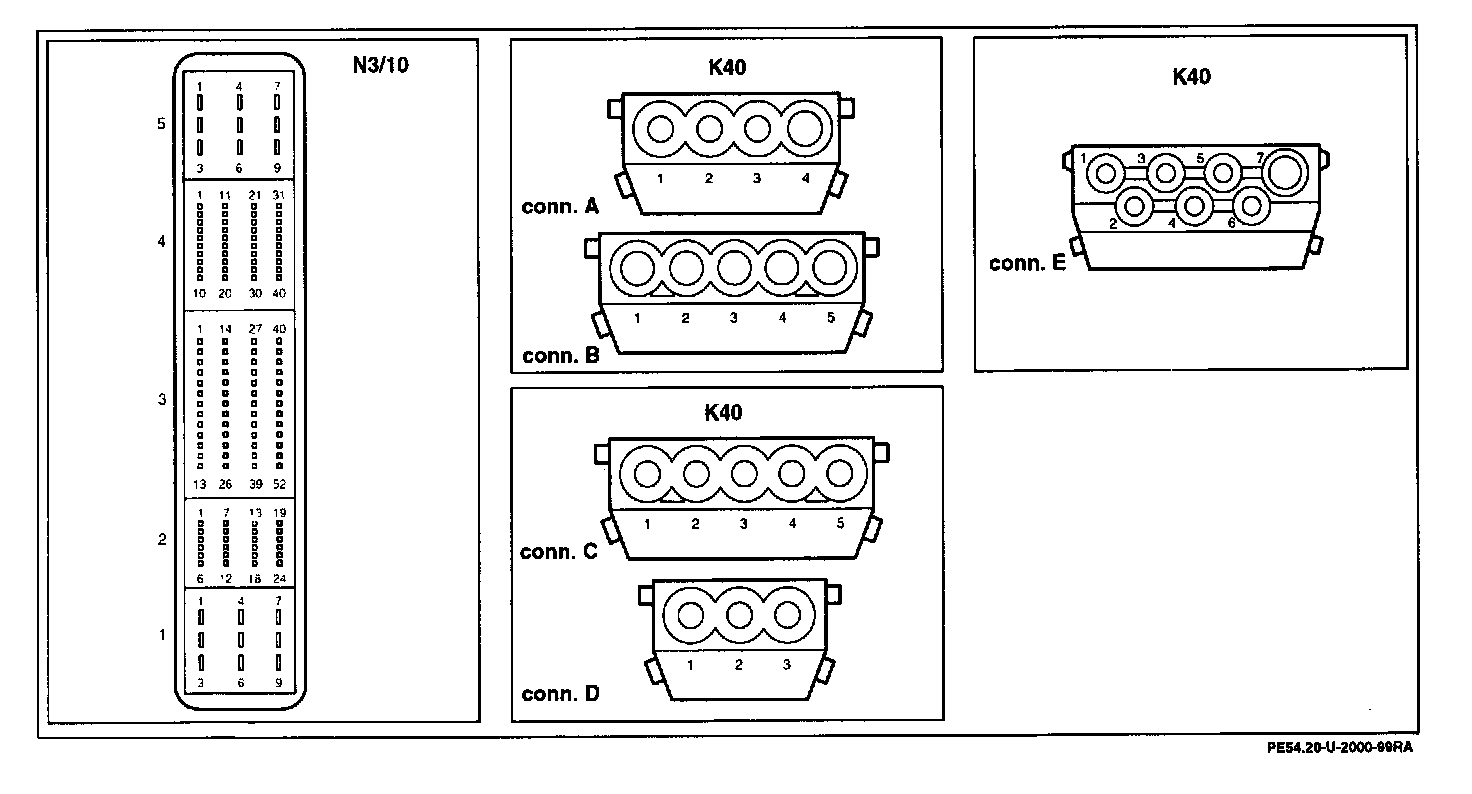

Connector Assignment:

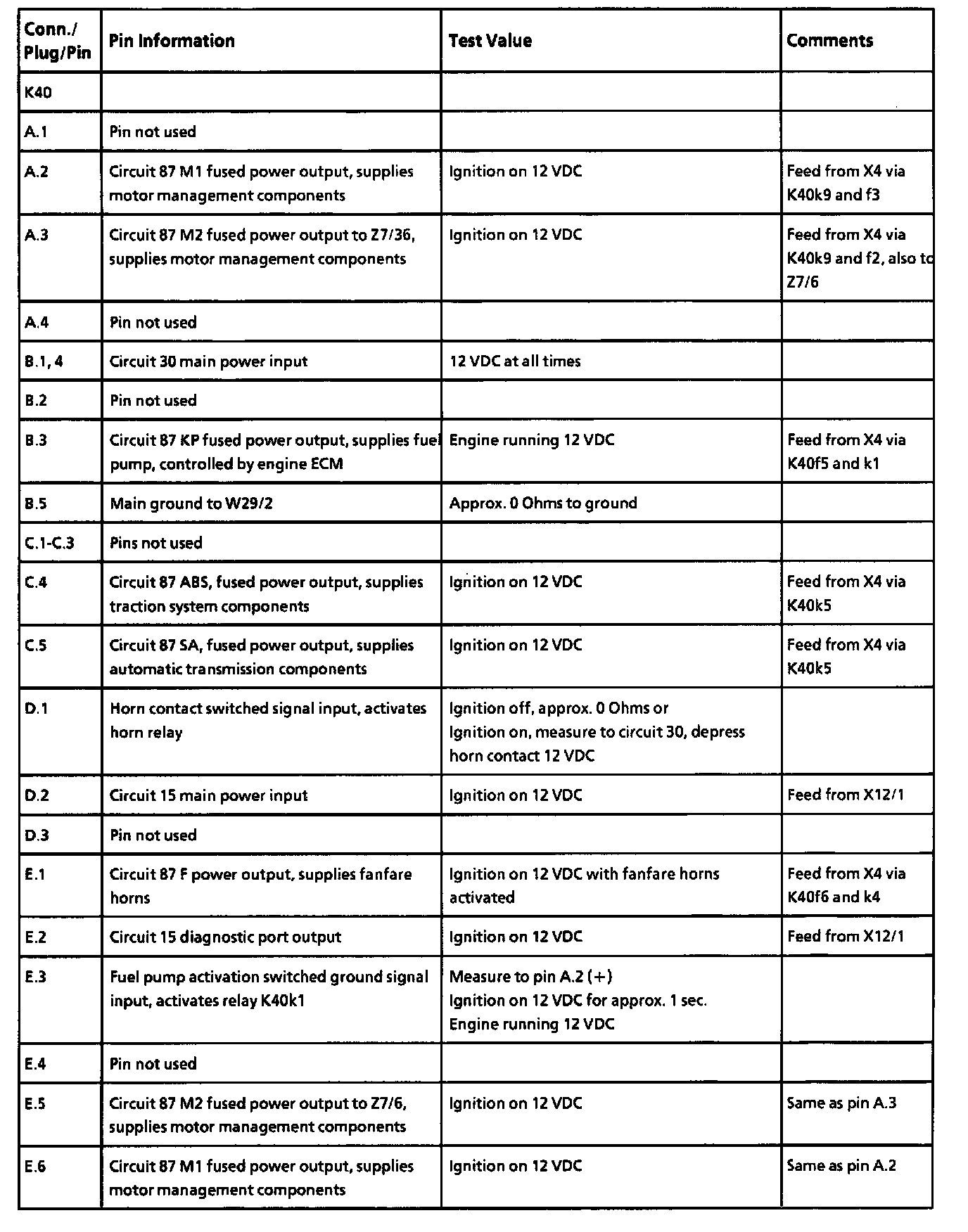

Pin Information:
