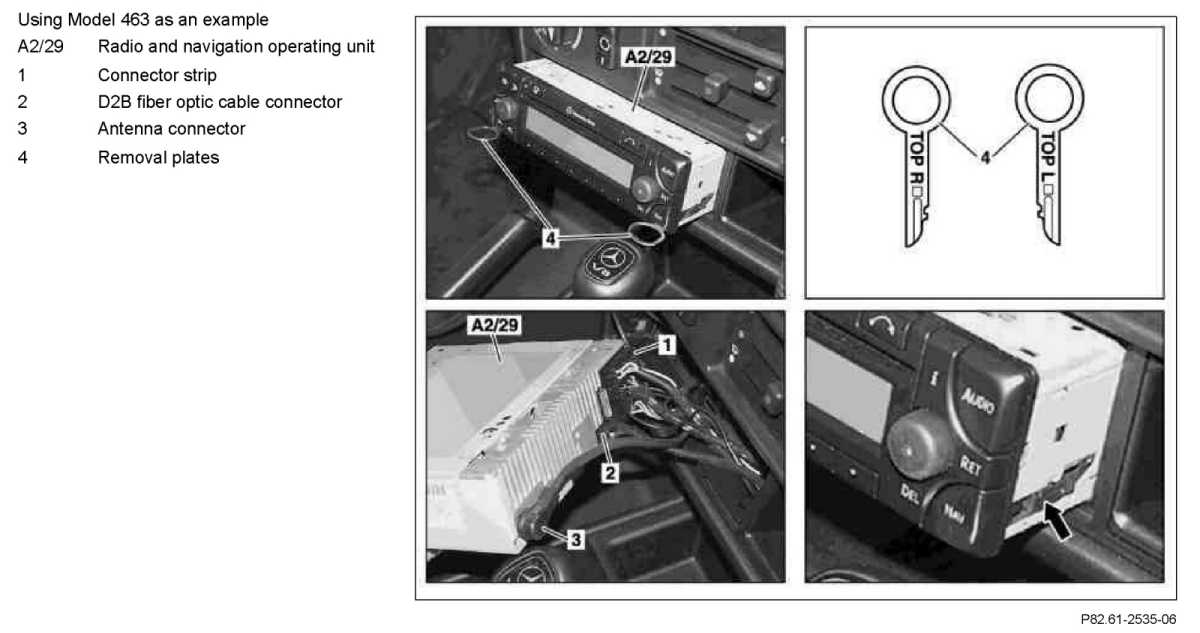

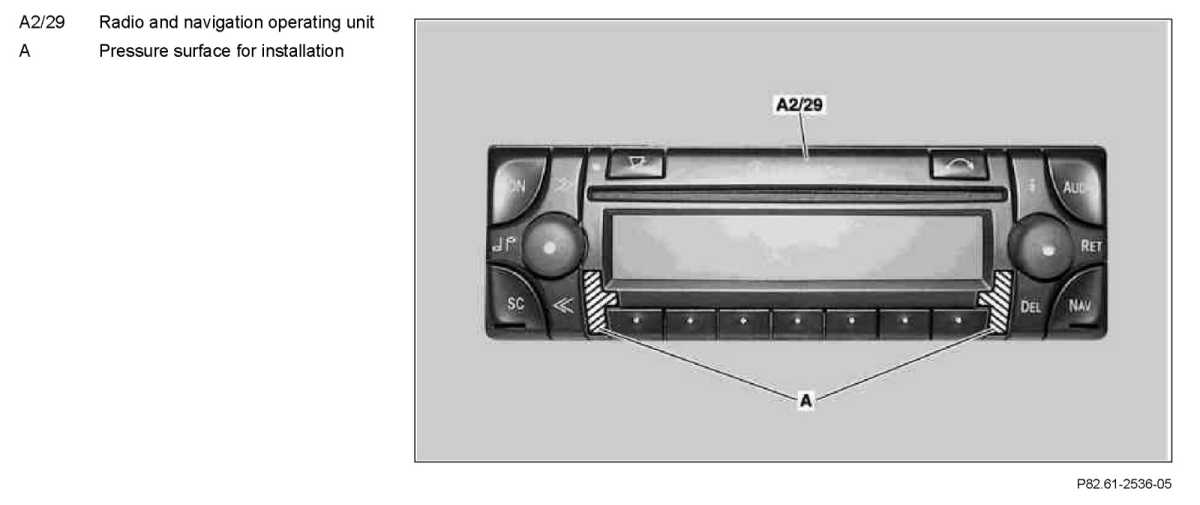

Remove/Install APS Radio and Navigation Operating Unit - AR82.61-P-7412GI

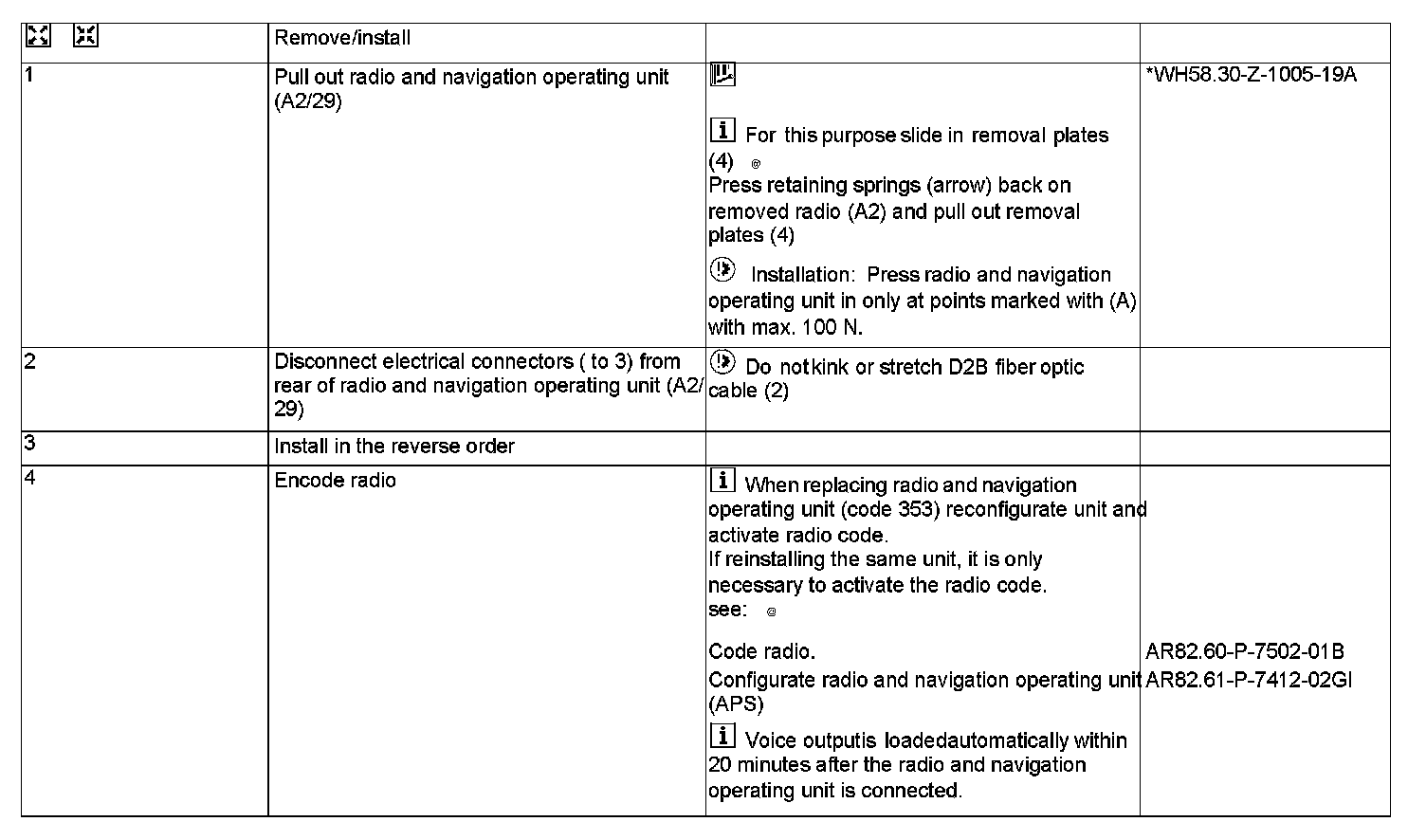

Removing And Installing APS Radio And Navigation Operating Unit
- with CODE (353) Audio 30 APS
