Emergency Contact Module: Diagrams
Emergency Call System
���p9��p���Wiring Diagram:

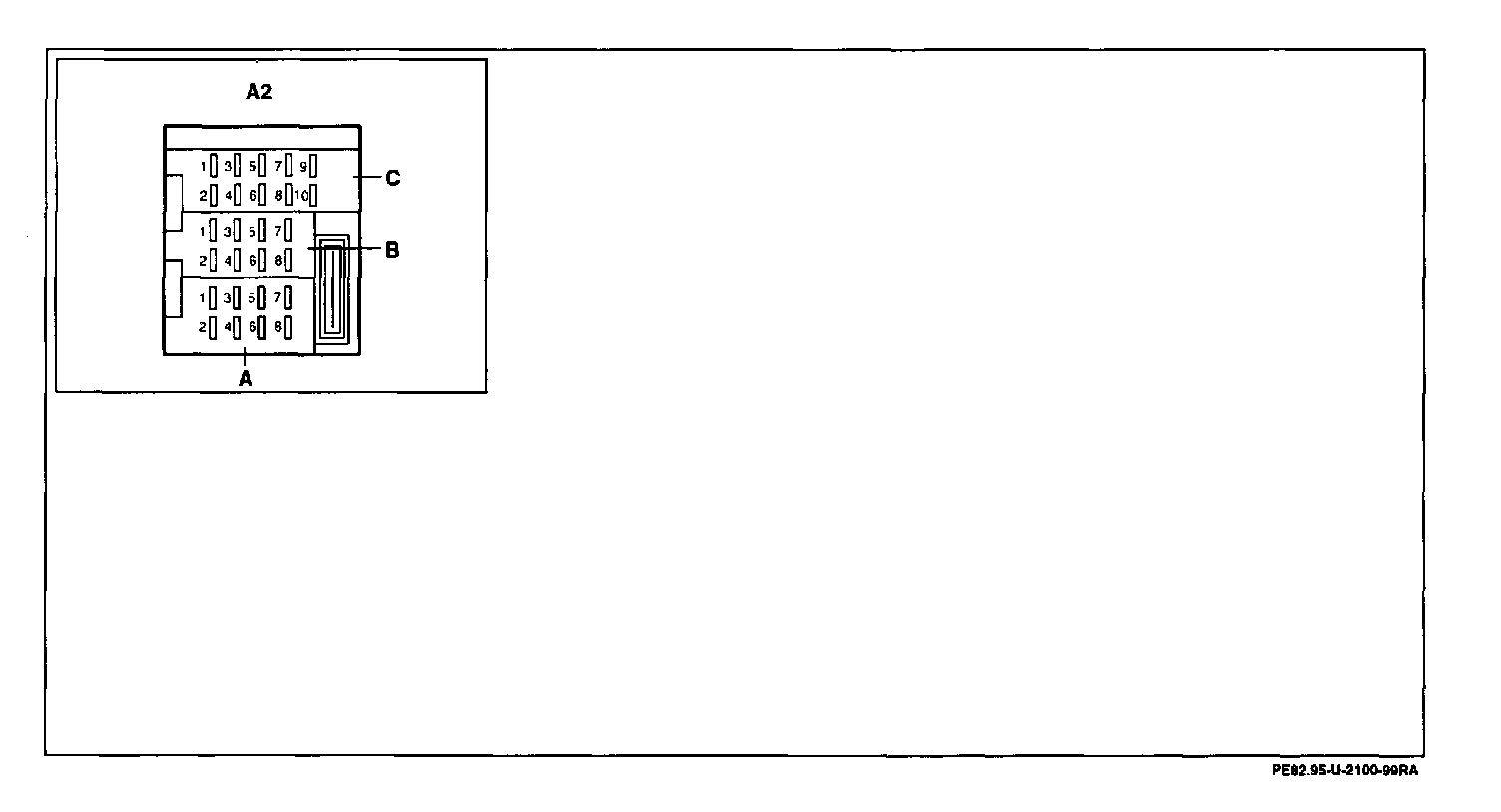

Connector Assignment:

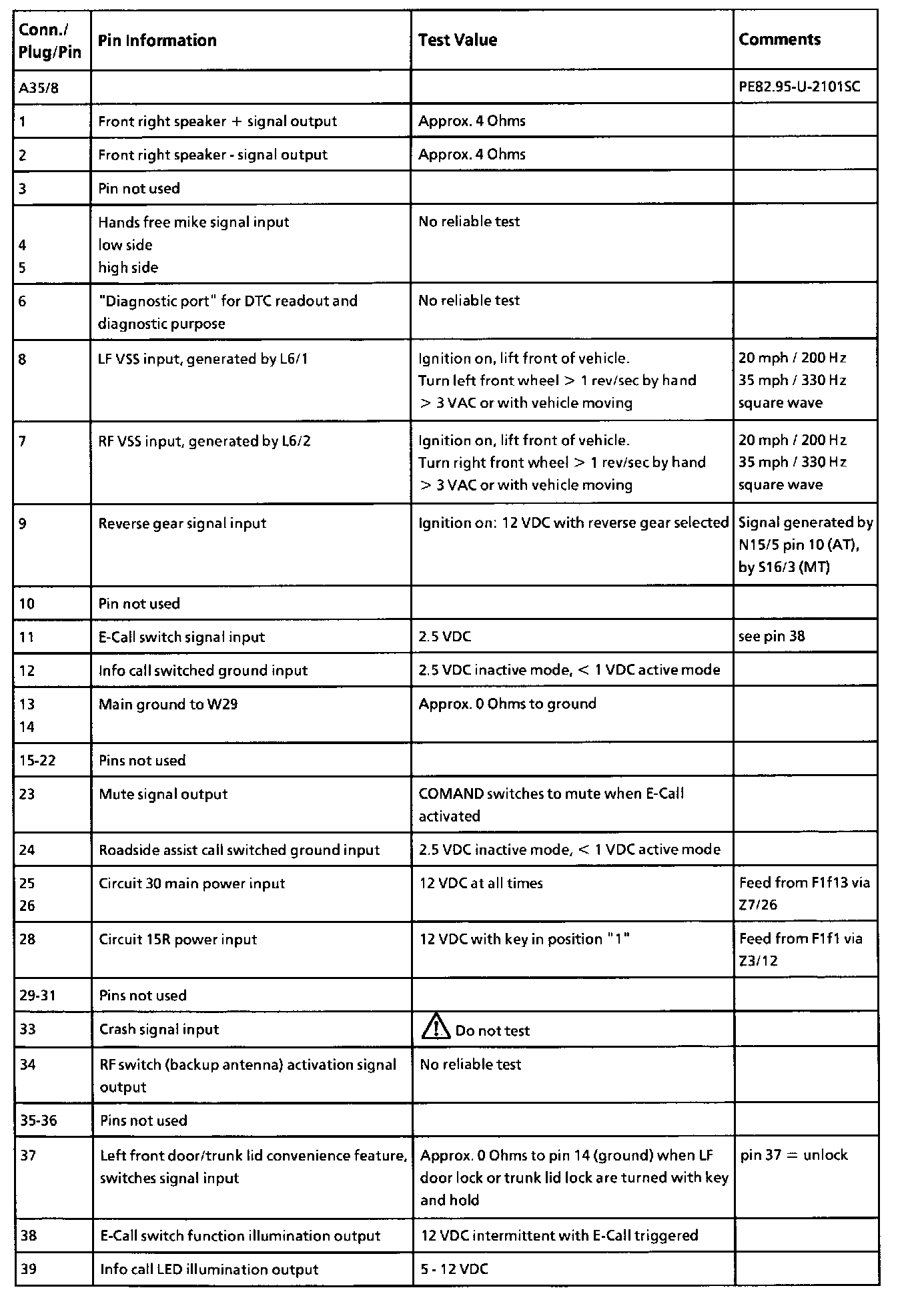

Pin Information, Part 1:

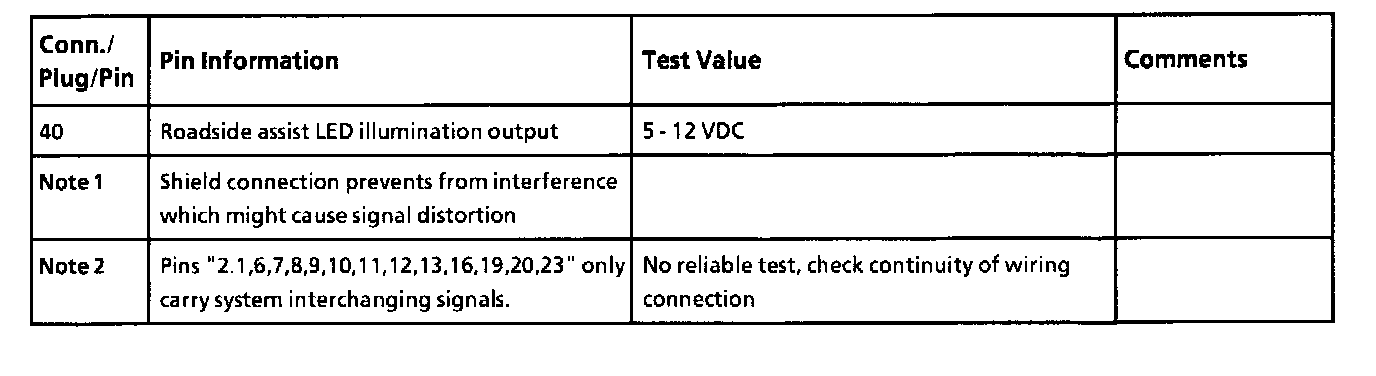

Pin Information, Part 2:
