Pinout Values and Diagnostic Parameters

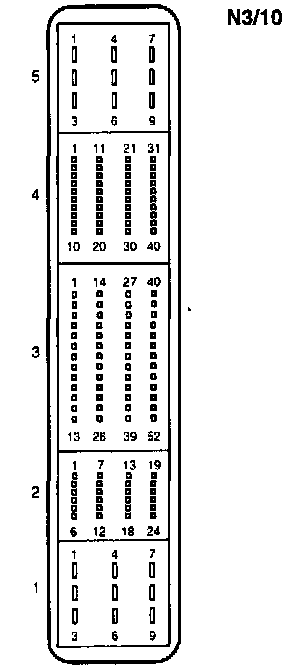

Connector View, N3/10:
Engine Block Harness - PE07.61-U-2000RB

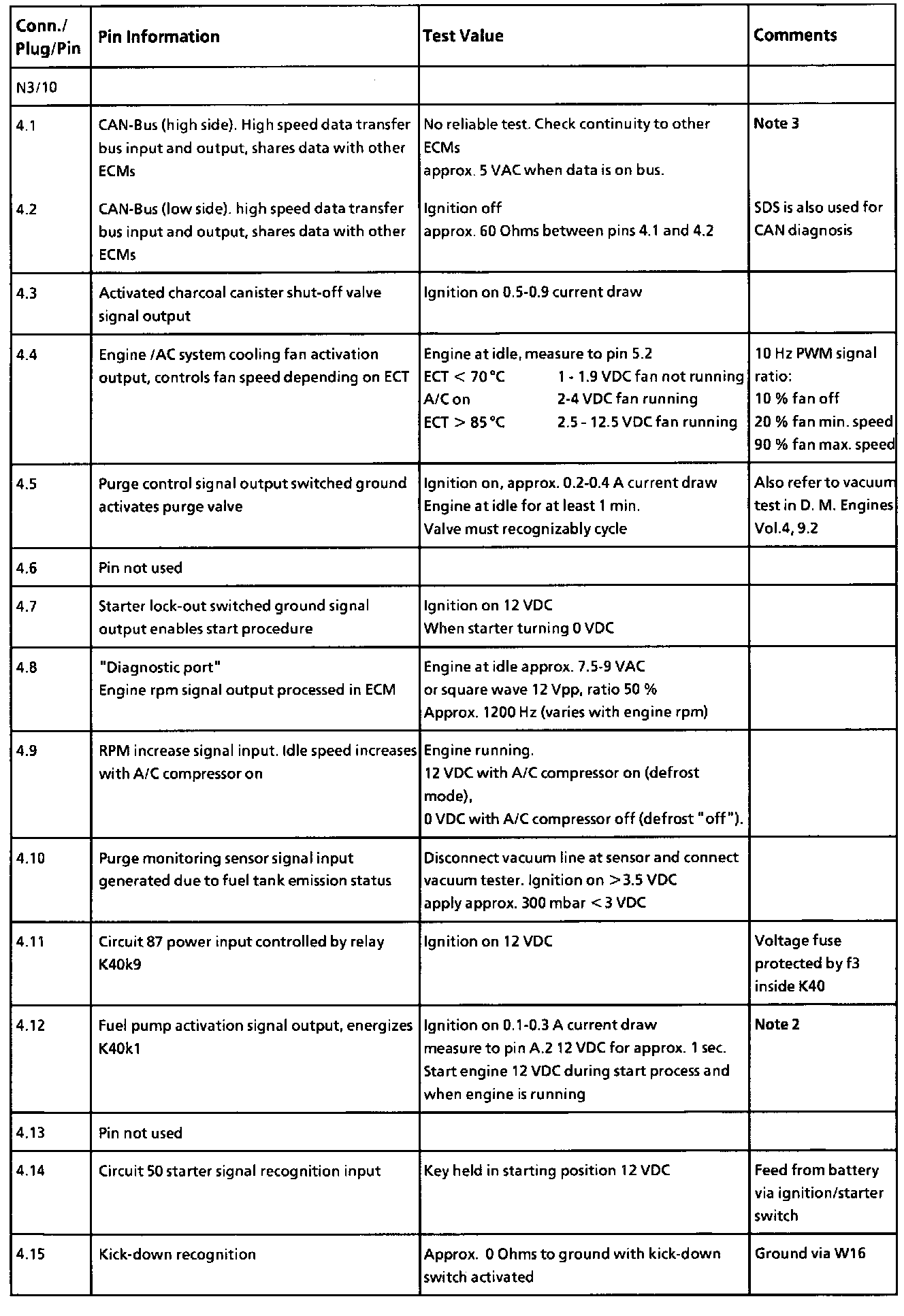

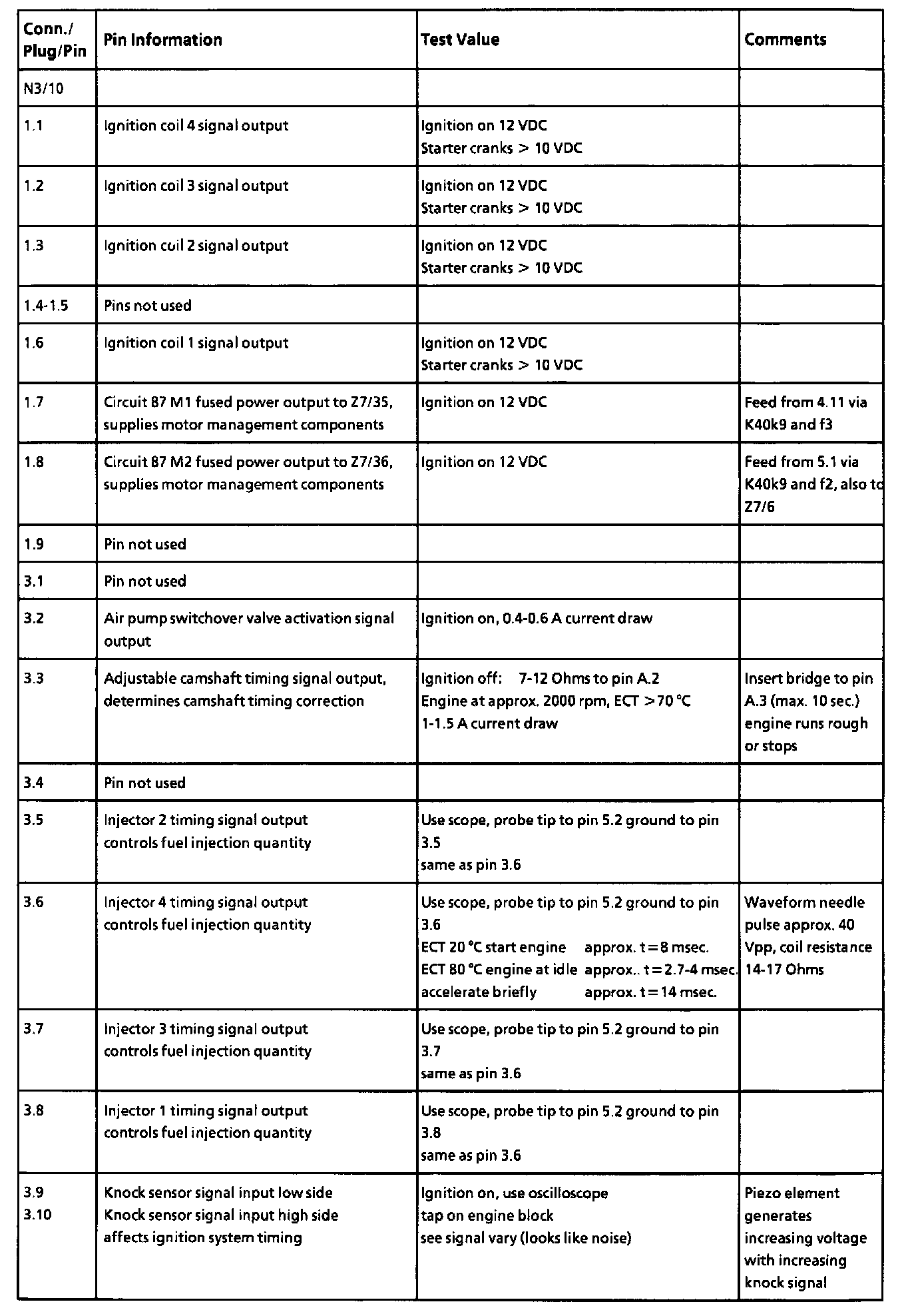

Pin Information, Part 1:

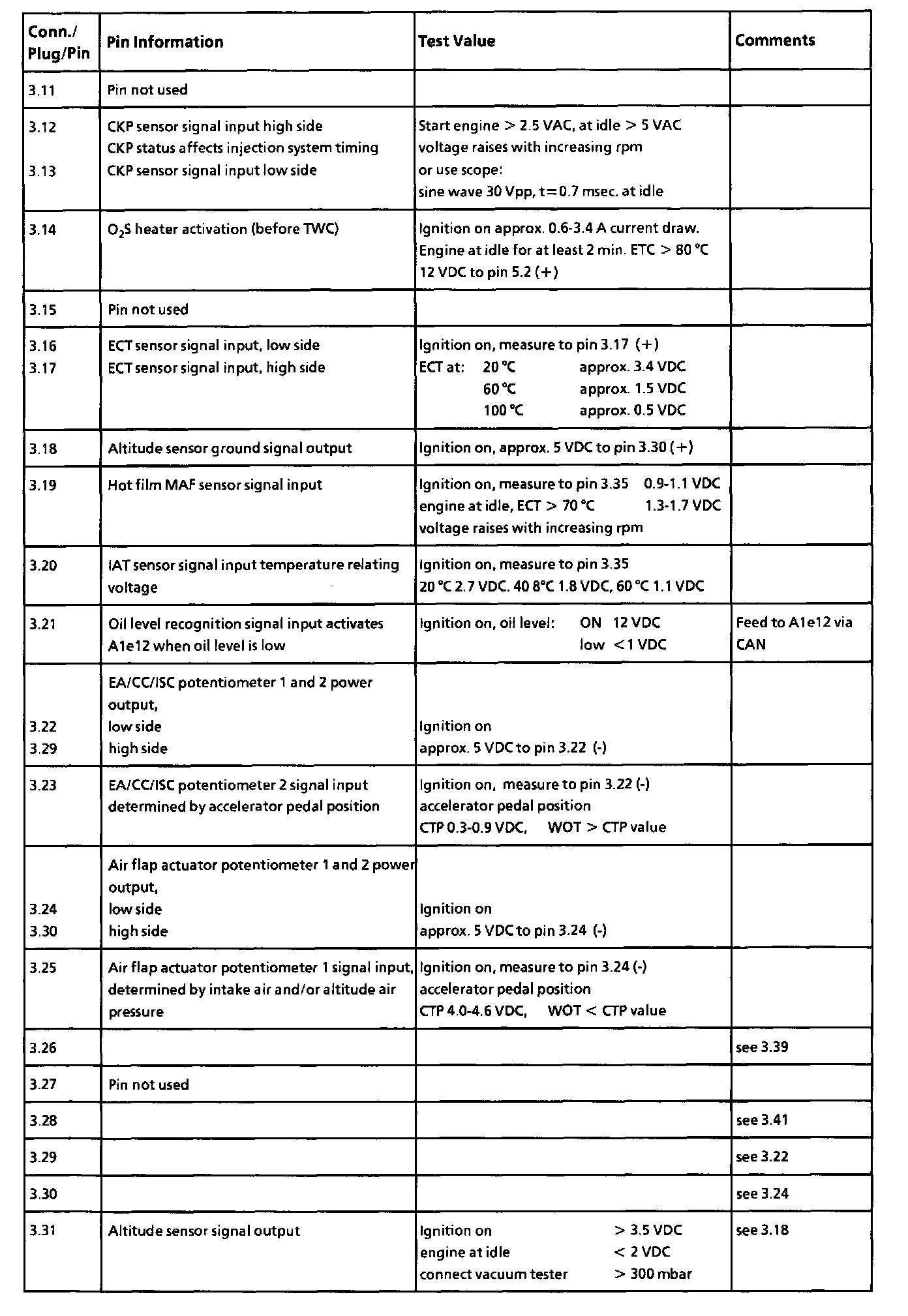

Pin Information, Part 2:

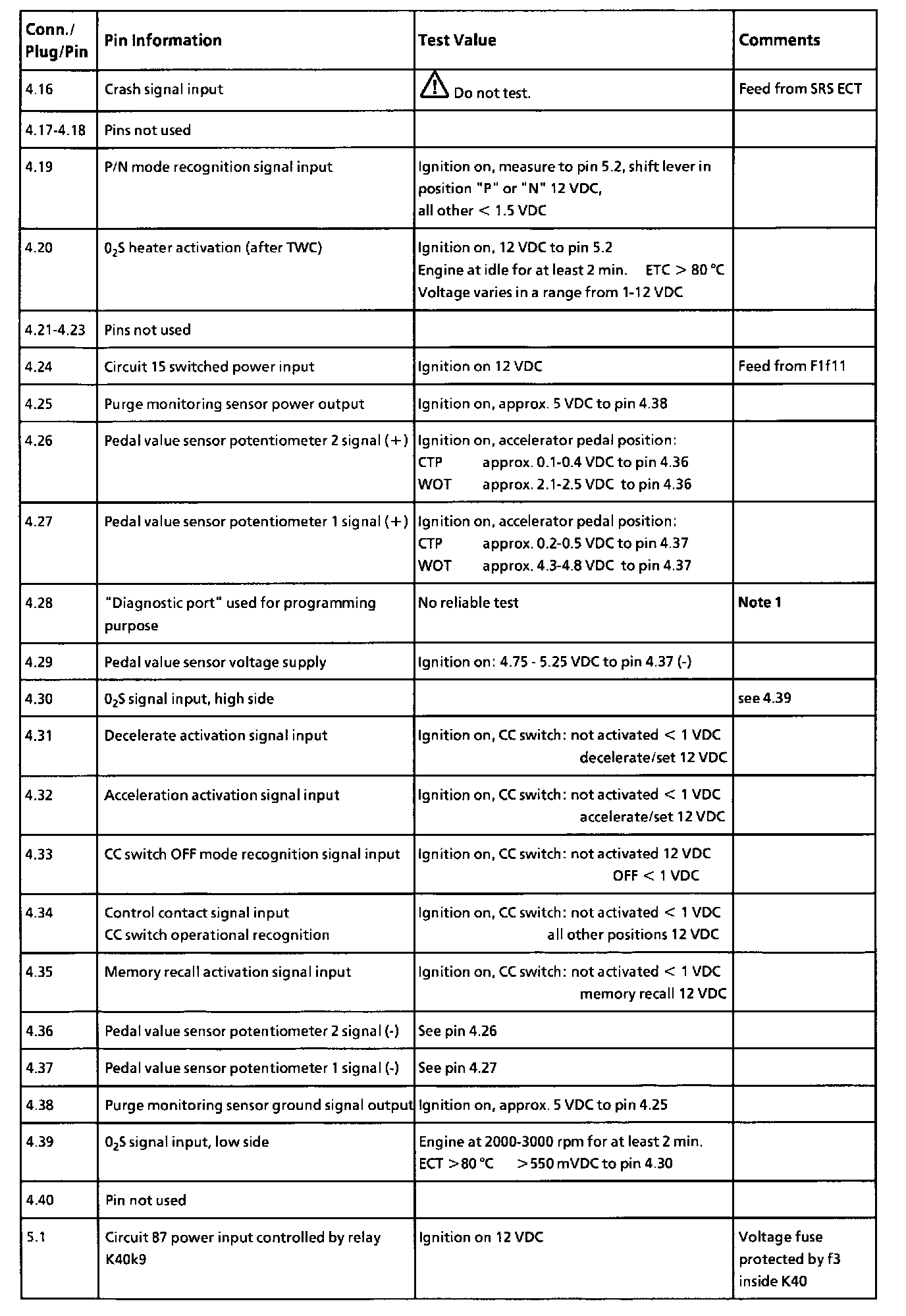

Pin Information, Part 3:
Engine Comp./Frame Floor System Harness - PE07.61-U-2000RA
Pin Information, Part 1:
Pin Information, Part 2:
Pin Information, Part 3:
