AR47.10-P-7000G Remove/Install Fuel Level Gauge Sensor
AR47.10-P-7000G Remove/Install Fuel Level Gauge Sensor

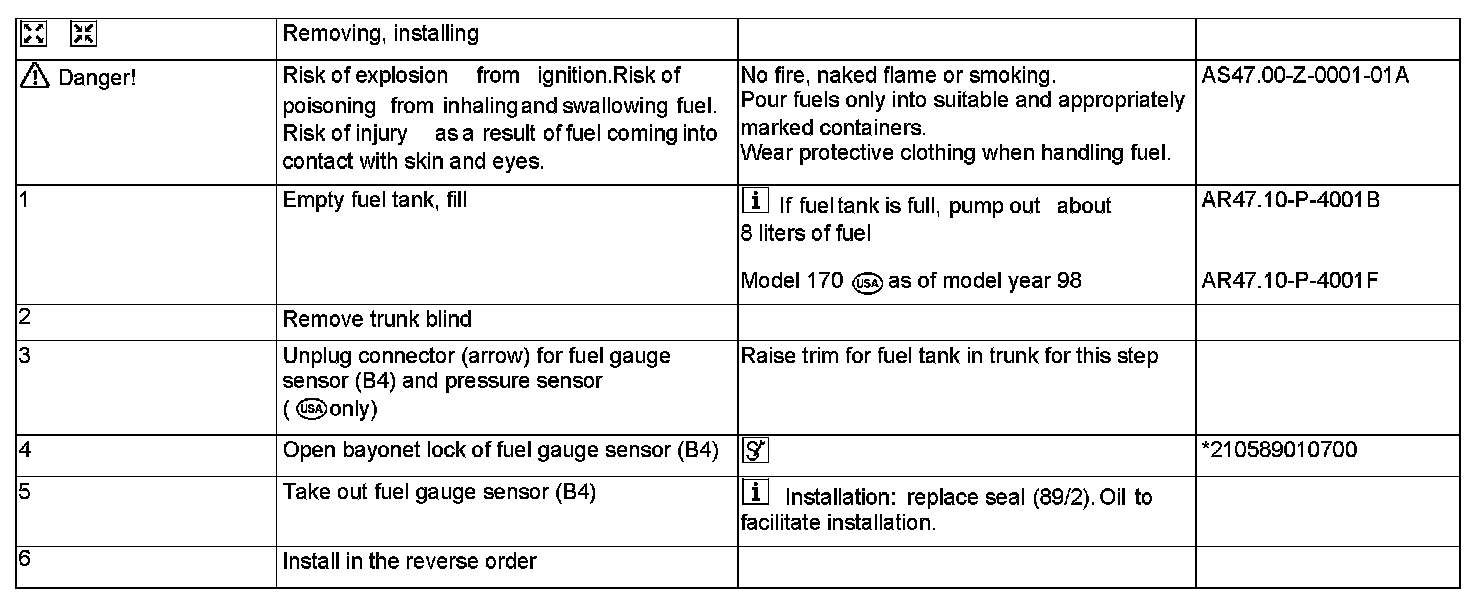

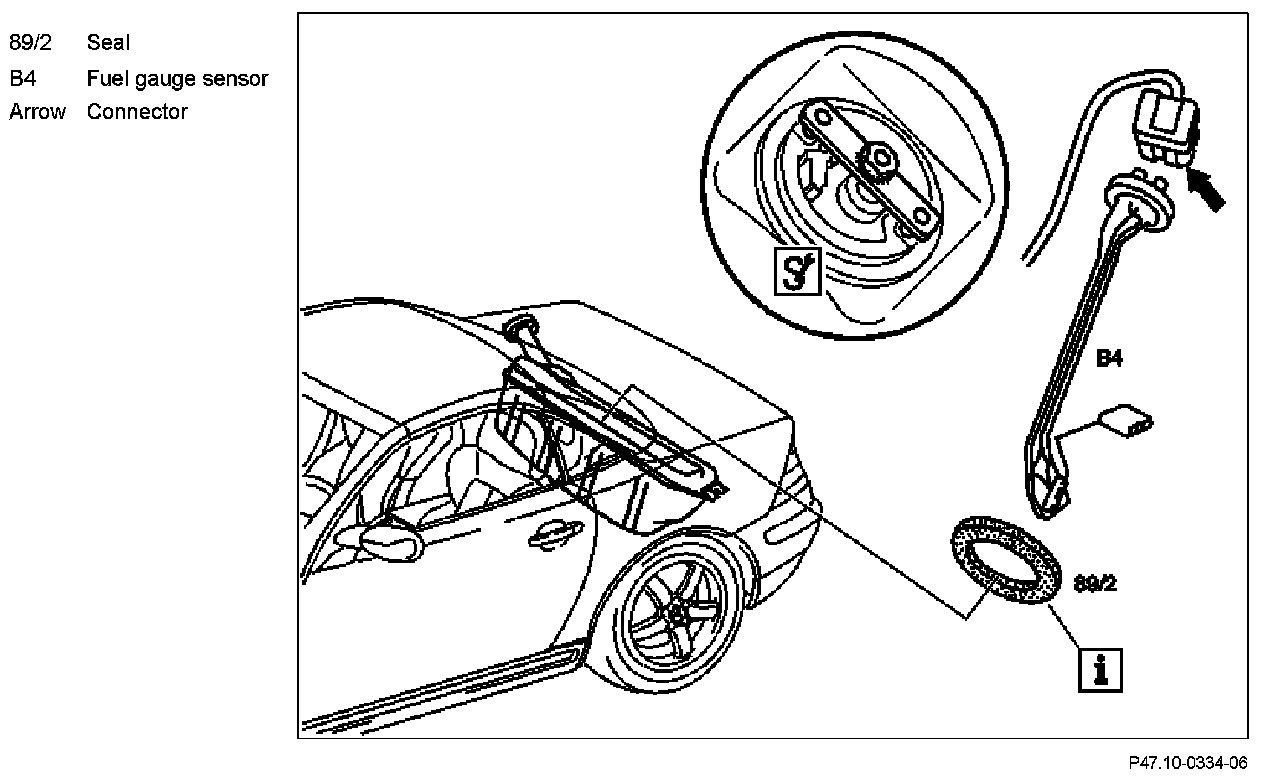

Removing And Installing Fuel Level Gauge Sensor
