Home >> Mercedes Benz >> 2004 >> SLK 230 (170.449) L4-2.3L SC (111.983) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Data Link Connector >> Diagrams

Data Link Connector: Diagrams



Data Link Connector

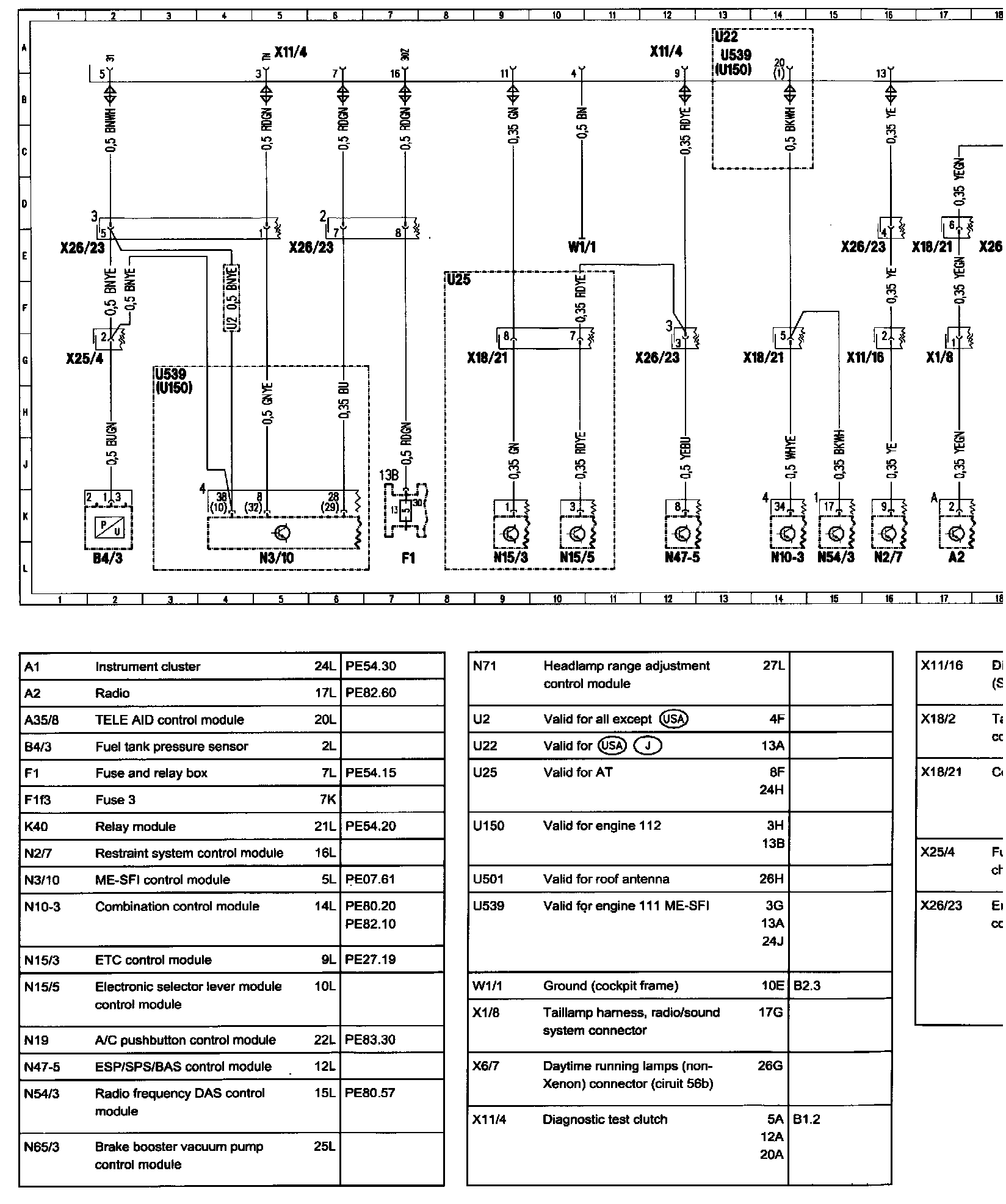

�jWiring Diagram:

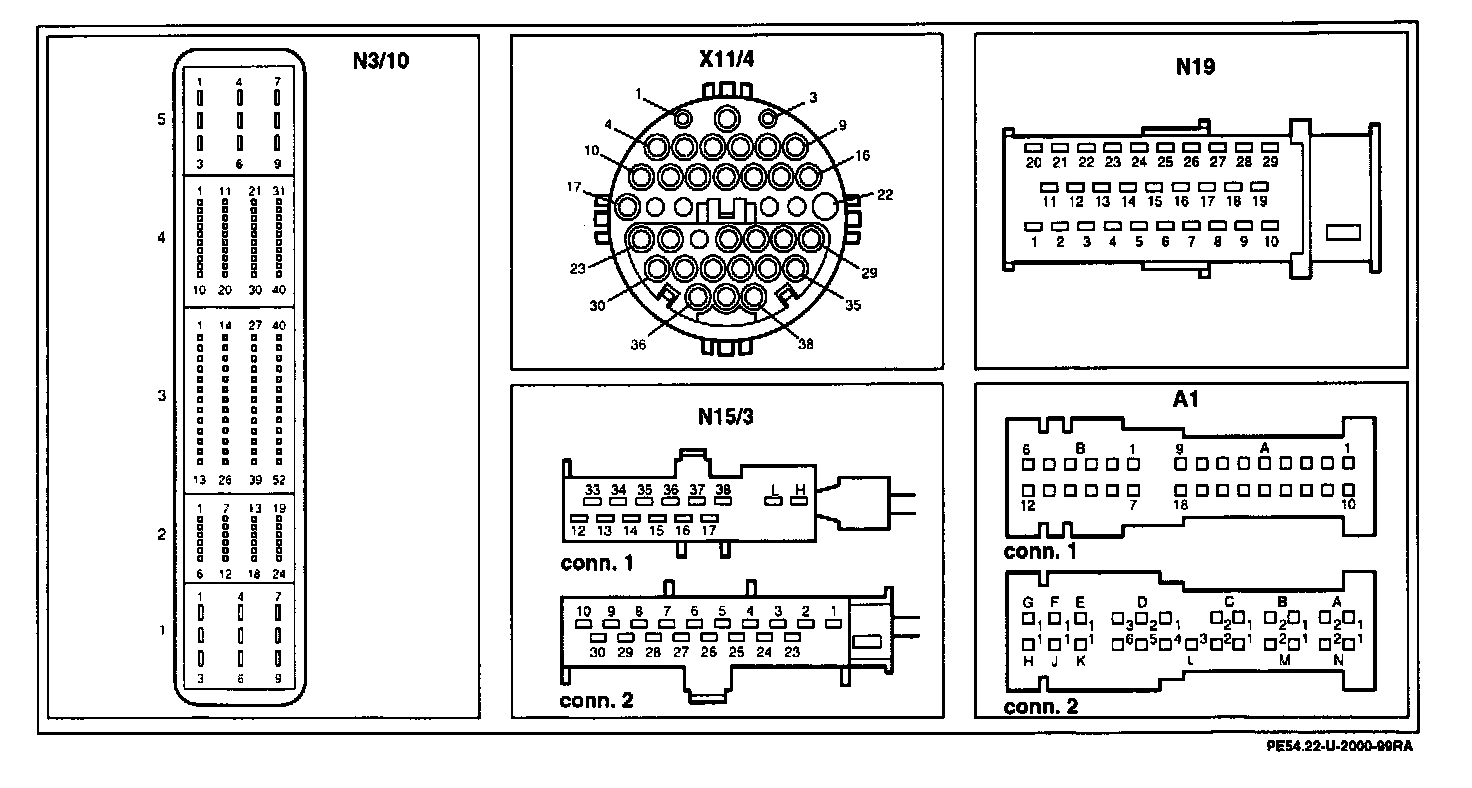

Connector Assignment:

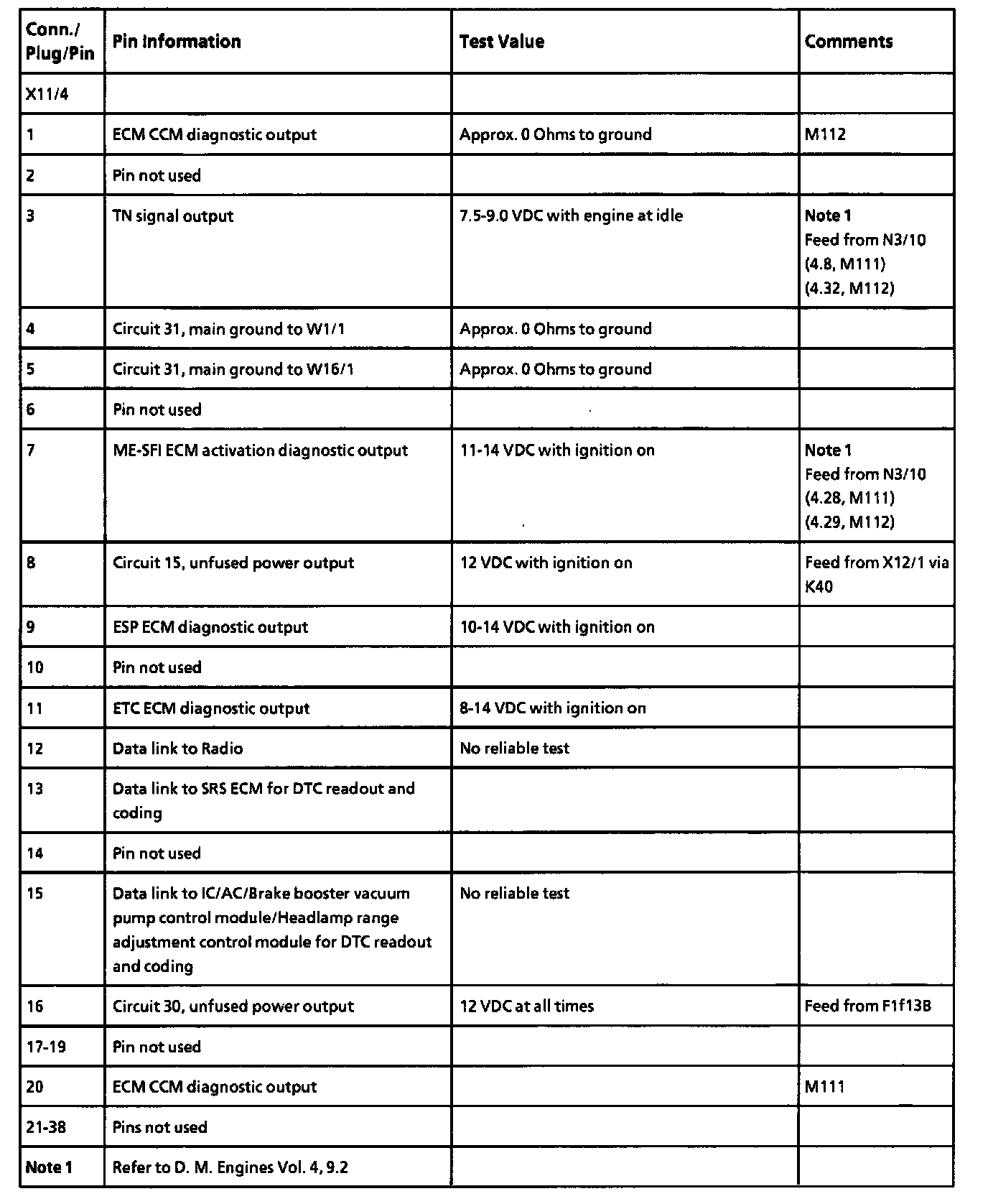

Pin Information:
