Campaign - Repl. Cam Adj. Solenoid, Adapter Harnesses: Overview
FILE:SERVICE: GROUP 00 OF SERVICE INFORMATION BINDER
PARTS: GROUP I OF INFORMATION _ PARTS & ACCESSORIES BINDER
Campaign No. 2009100001, April 2011
TO: ALL MERCEDES-BENZ CENTERS
SUBJECT: Models 170/203, Model Years 2001 - 2004 / 2002 - 2005
Install Camshaft Adjustment Solenoid(s) Adapter Harness(es)
Revision Date Purpose
b 4/29/11 Revisions to Procedure, Warranty and Parts information updated
a 12/15/09 Inclusion of reimbursement information
- 12/04/09 Initial issue
This Service Campaign has been initiated because Daimler AG (DAG), the manufacturer of Mercedes-Benz vehicles, has determined that due to the settling properties of the seal of the camshaft adjustment solenoid specification, oil may enter the engine wiring harness(es) through the electrical connection of the camshaft adjustment solenoid from capillary action. Dealers will install camshaft adjustment solenoid(s) adapter harness(es) at the next workshop visit.
Prior to performing this Service Campaign:
^ Please check VMI to determine if the vehicle is involved in the Campaign and if it has been previously repaired.
^ Please review the entire Service Campaign bulletin and follow the repair procedure exactly as described.
Please note that Recall and Service Campaigns do not expire and may also be performed on a vehicle with a vehicle status indicator.
Approximately 120,738 vehicles are affected.

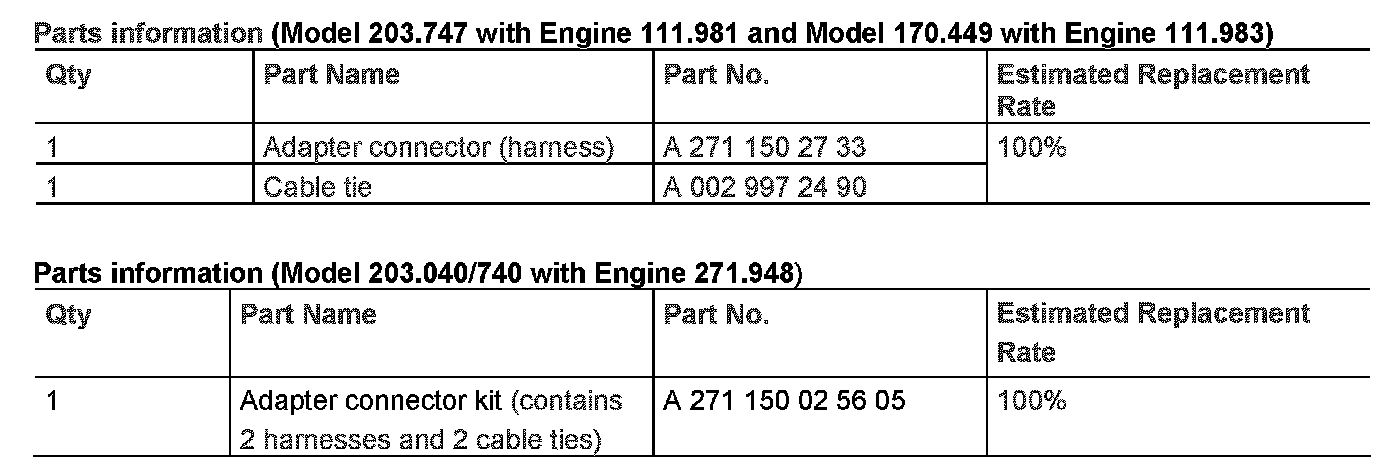

PARTS INFORMATION
Note:
^ Please be aware that only the part number(s) referenced in the Campaign Bulletin is/are approved for use to repair the vehicle. Repairs performed using any other part(s) will not have been performed in accordance with the campaign. Accordingly, warranty claims submitted with reference to an improper part number(s) will be denied.
^ The following allowable labor operation should be used when submitting a warranty claim for this repair:

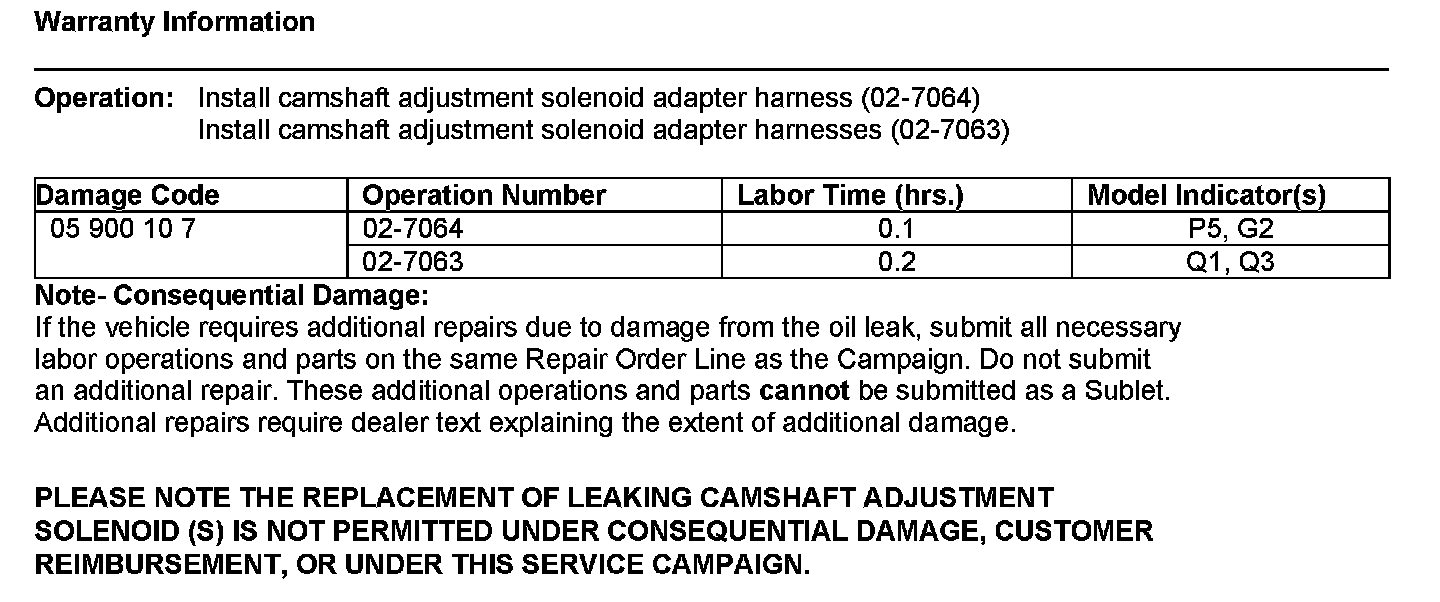

WARRANTY INFORMATION
NOTE REGARDING CUSTOMER REIMBURSEMENT
Reimbursement to customers for repairs performed prior to this service campaign:
If the customer already paid to have this service campaign condition repaired and provides adequate documentation to support their claim of a non-warranty repair of this item, they may be eligible to receive reimbursement.
Requests for reimbursement may include parts, labor, fees and taxes. Reimbursement is limited to the amount the installation of the camshaft adjustment solenoid adapter harness(es) would have cost if completed by an authorized Mercedes-Benz dealer under this campaign.
Submit a warranty claim, utilizing Damage Code 05 900 10 8 as a sublet, utilizing the sublet code of SUB." Sublet repairs require dealer text as stated in the Warranty Policies and Procedures Manual. Repair date should be the date that the customer paid for the repair.
Note:
Please note the claim submitted for customer reimbursement will not close the campaign (if still open). If the customer is still in possession of the vehicle with an open campaign, please arrange to close the campaign in the usual manner as described in this bulletin.
