Home >> Mercedes Benz >> 2004 >> SLK 230 (170.449) L4-2.3L SC (111.983) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Restraints and Safety Systems >> System Diagram

System Diagram



Airbags

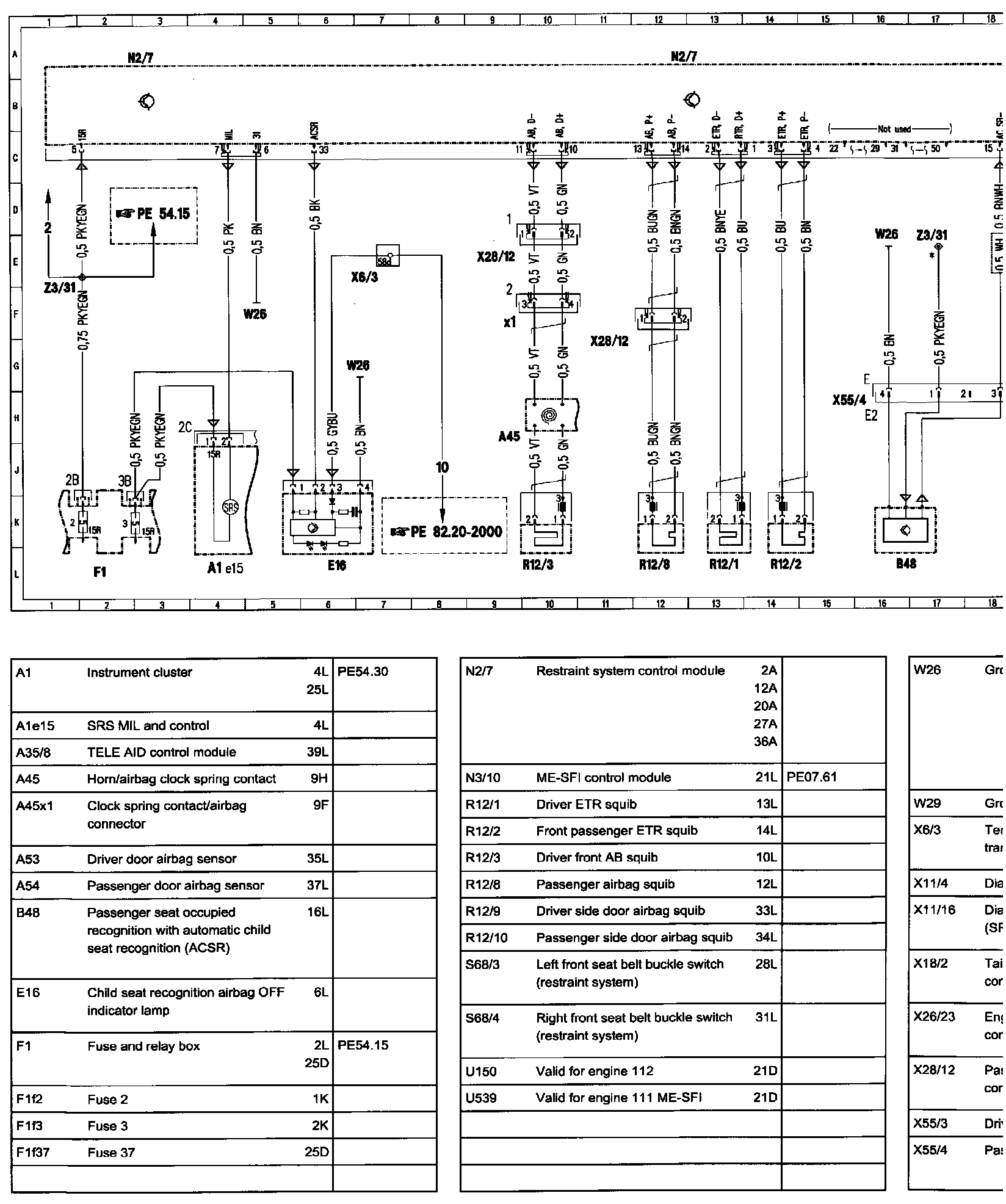

��o3/p3Wiring Diagram:

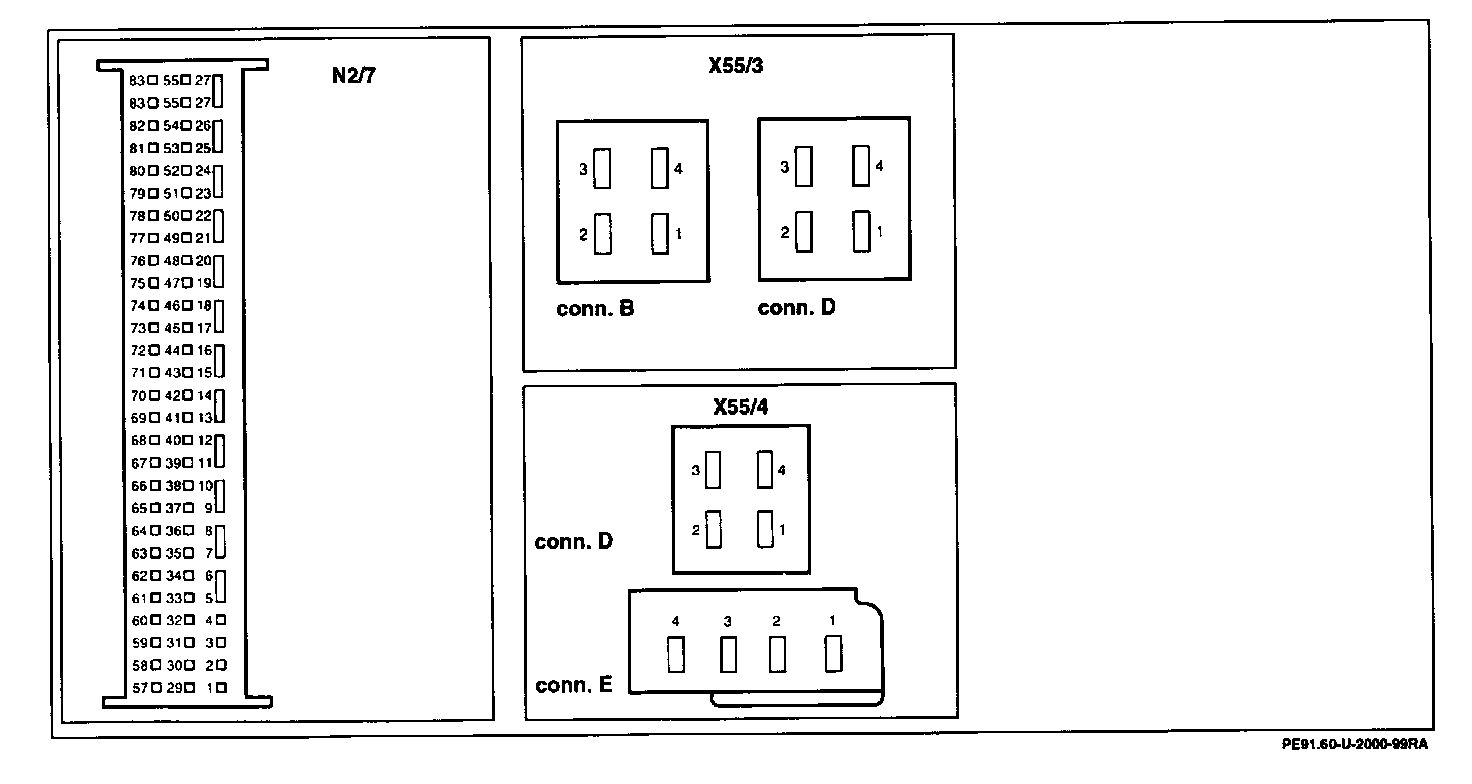

Connector Assignment:

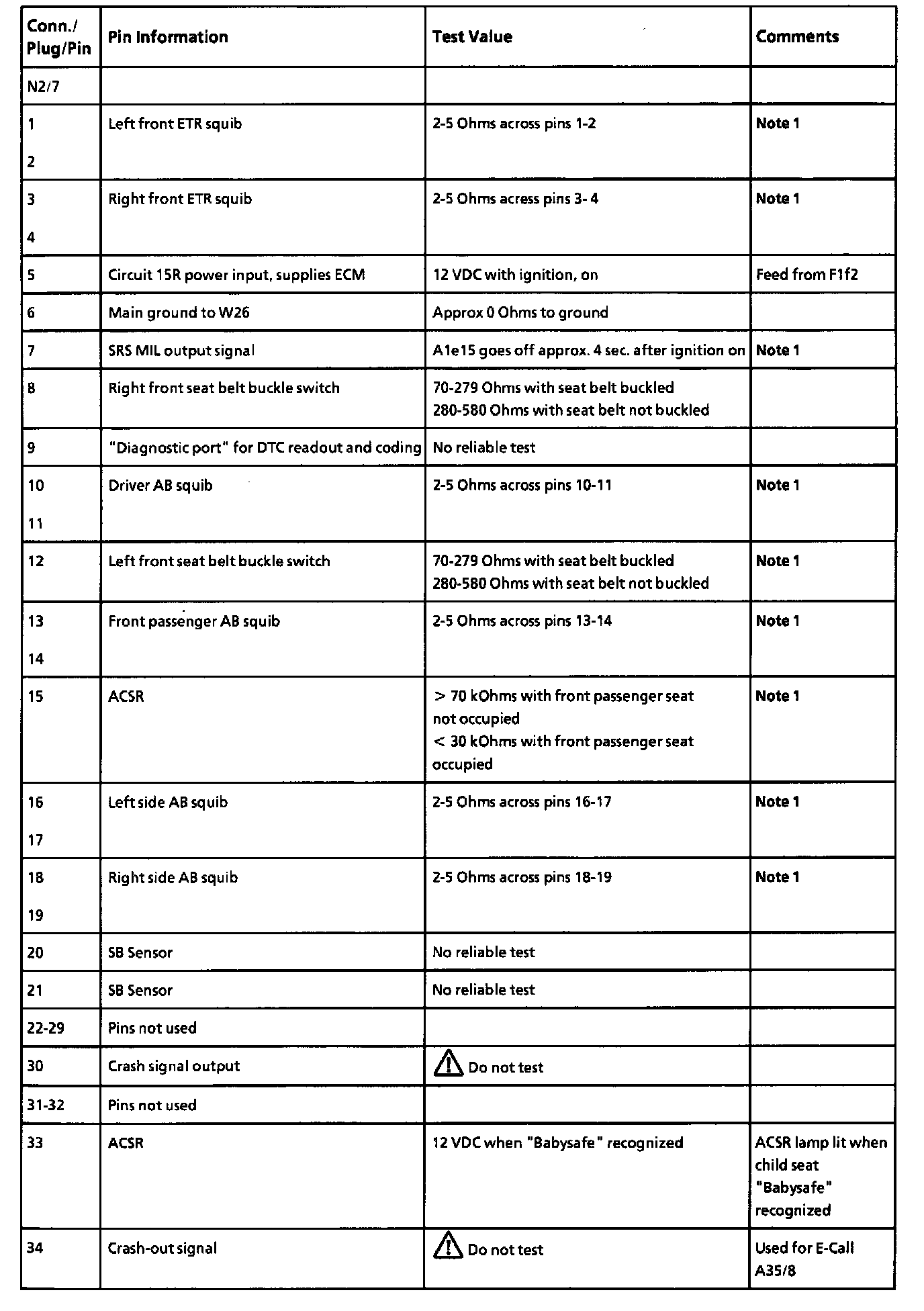

Pin Information, Part 1:

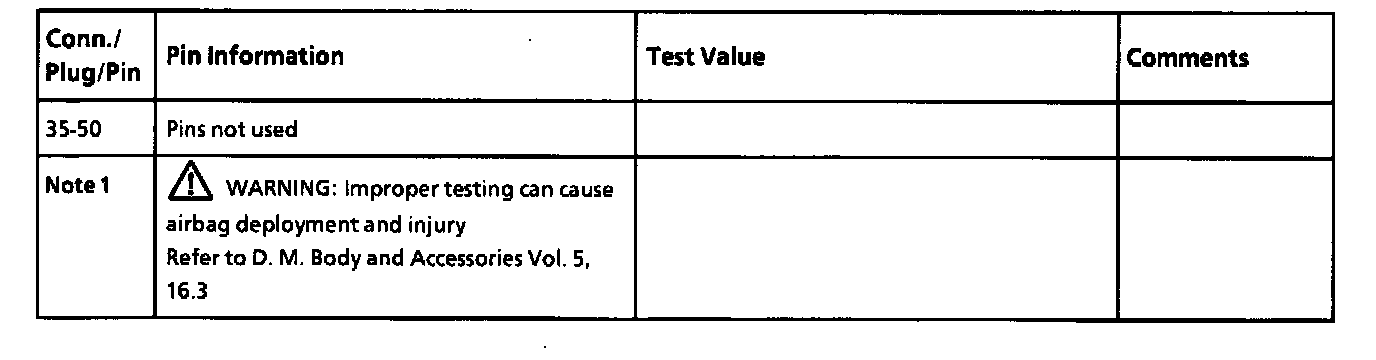

Pin Information, Part 2:
