CAN Bus - Interior Compartment PE00.19-U-2300B
CAN Bus - Interior Compartment PE00.19-U-2300B
CAN Bus - Interior Compartment

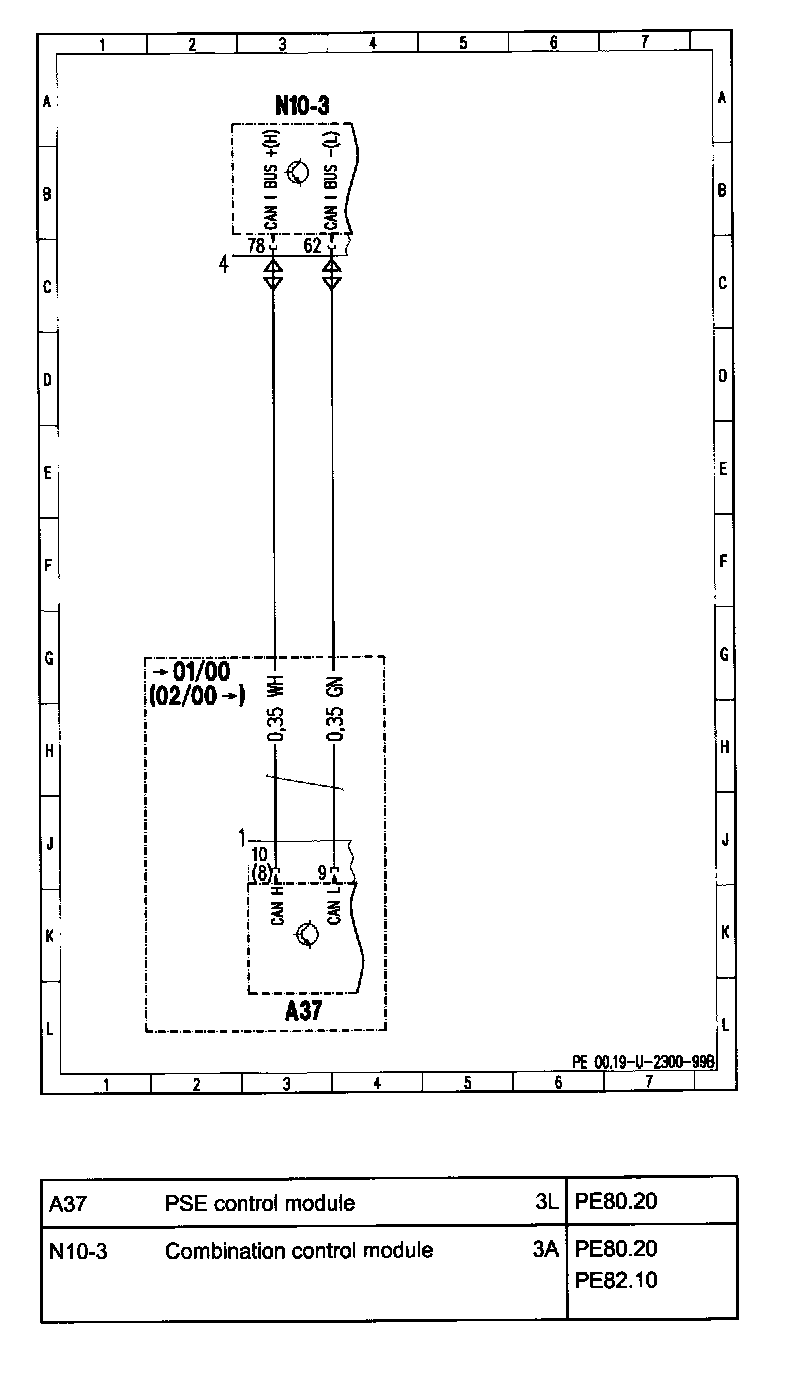

Wiring Diagram:

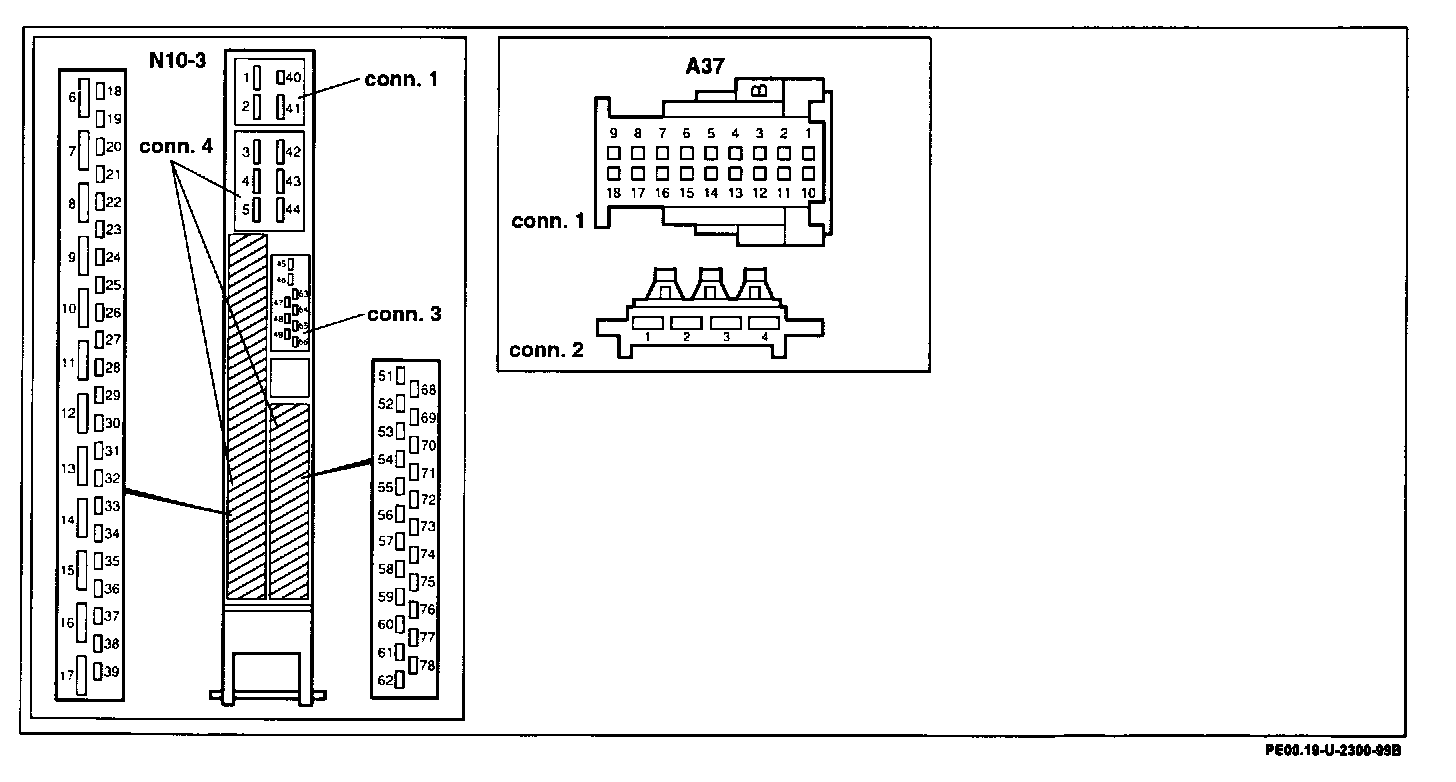

Connector Assignment:

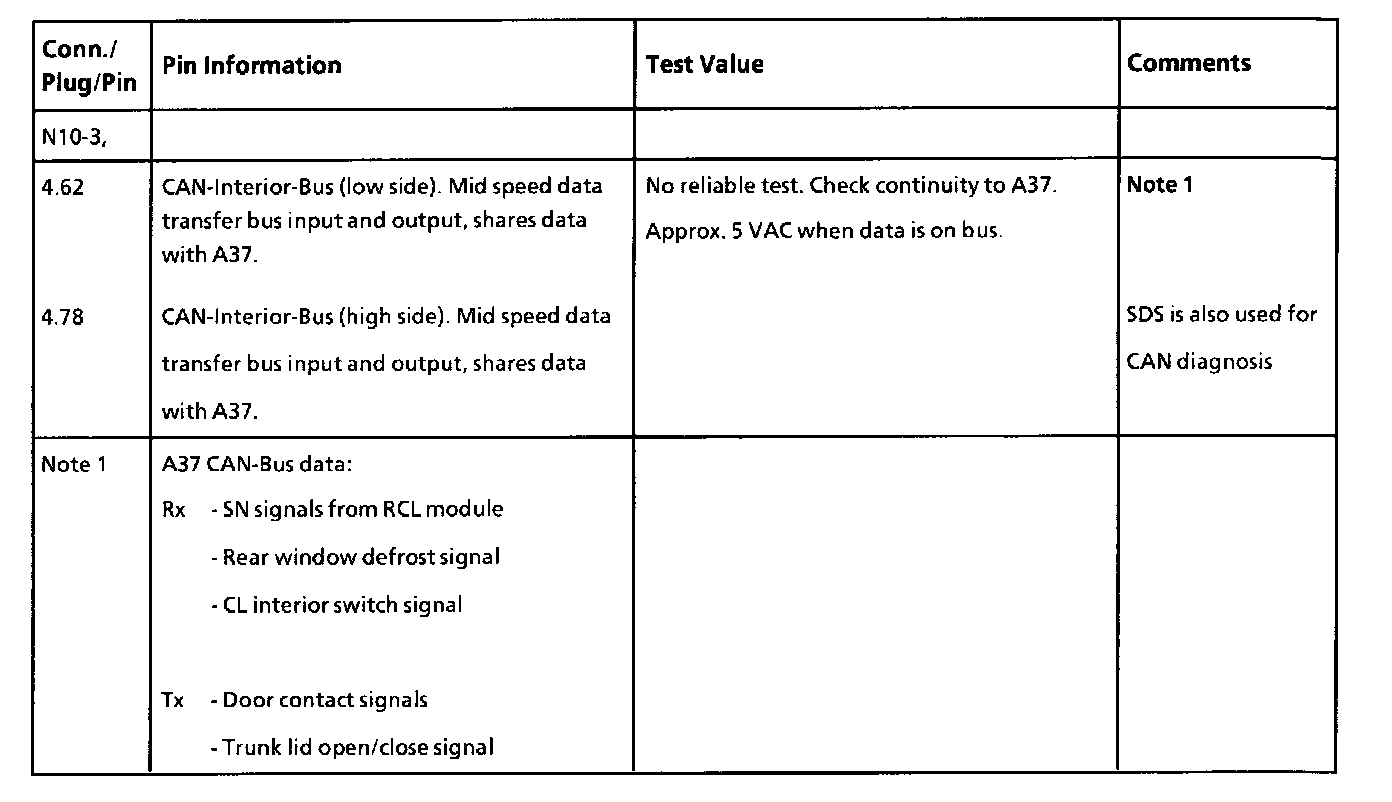

Pin Information:
