SLK 230 (170.449) L4-2.3L SC (111.983)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
System Diagram
>>
Exterior Lights With Xenon PE82.10-U-2000RA
Exterior Lights With Xenon PE82.10-U-2000RA
Exterior Lights With CODE (612b) Xenon
Headlamp
Unit
UPR^UPWiring Diagram:

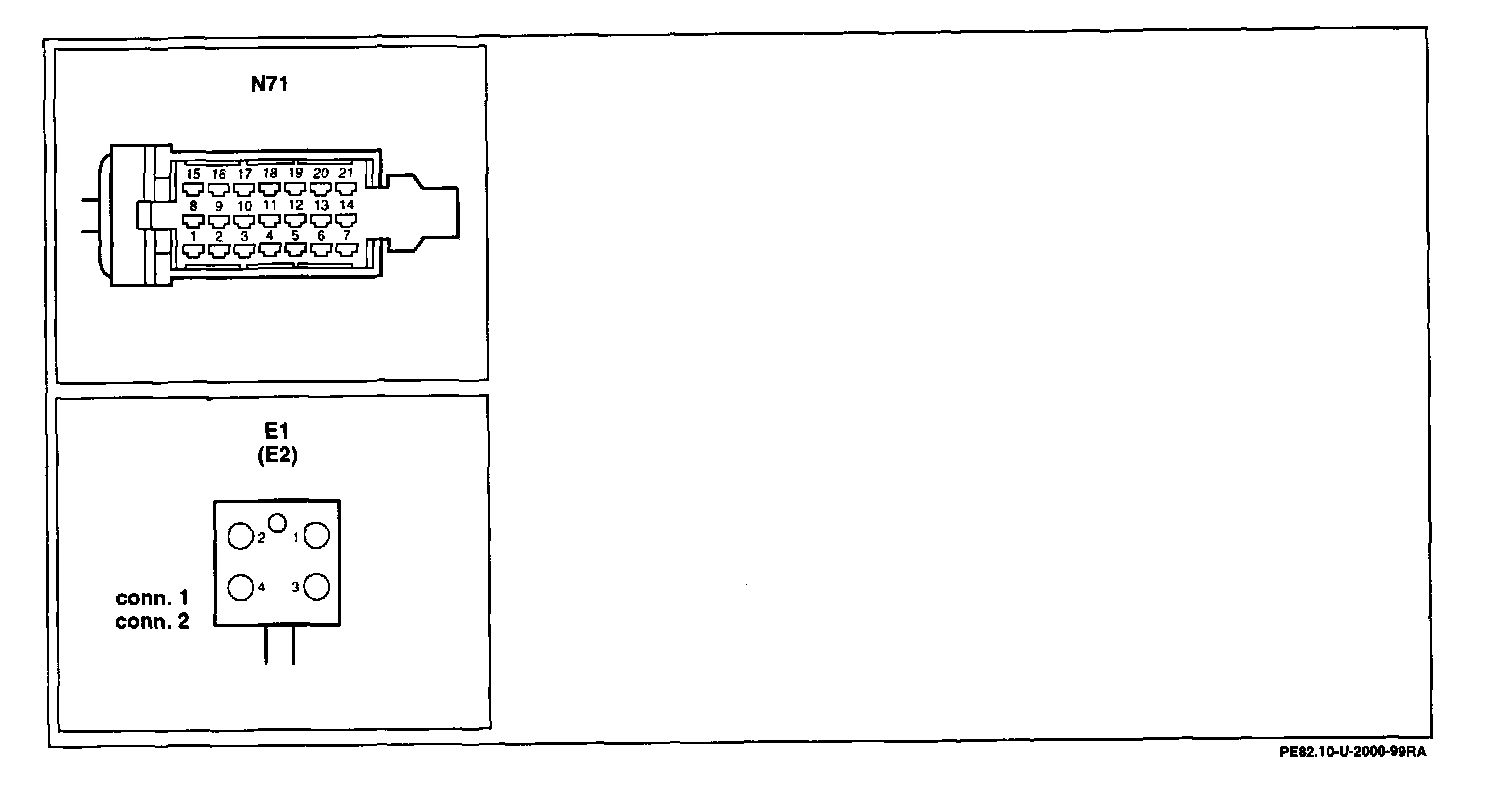

Connector Assignment:

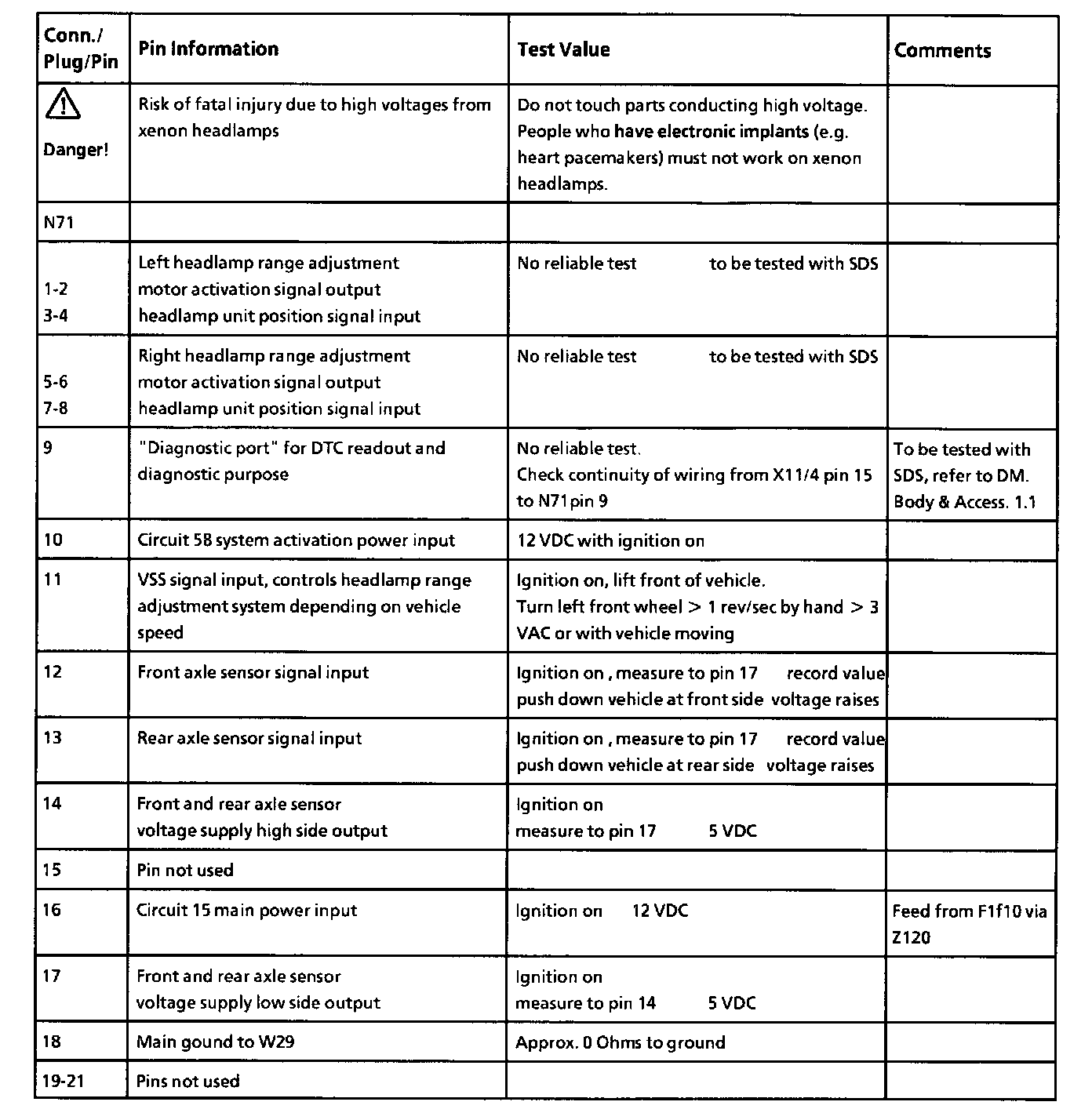

Pin Information:
