Anti-Theft Alarm System (ATA) PE80.50-U-2000T
Anti-Theft Alarm System (ATA) PE80.50-U-2000T
Anti-Theft Alarm System (ATA)
6,�5���5Wiring Diagram:

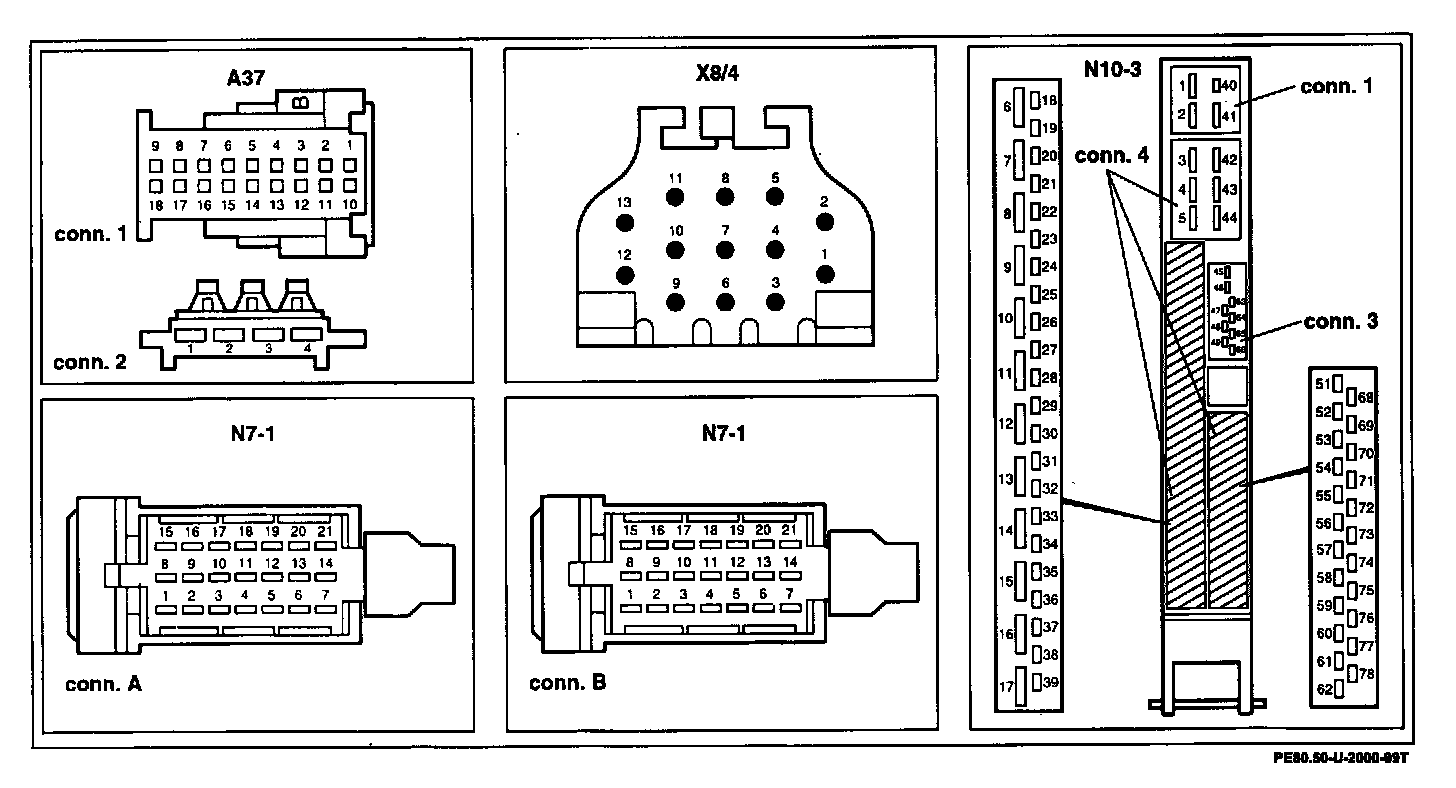

Connector Assignment:

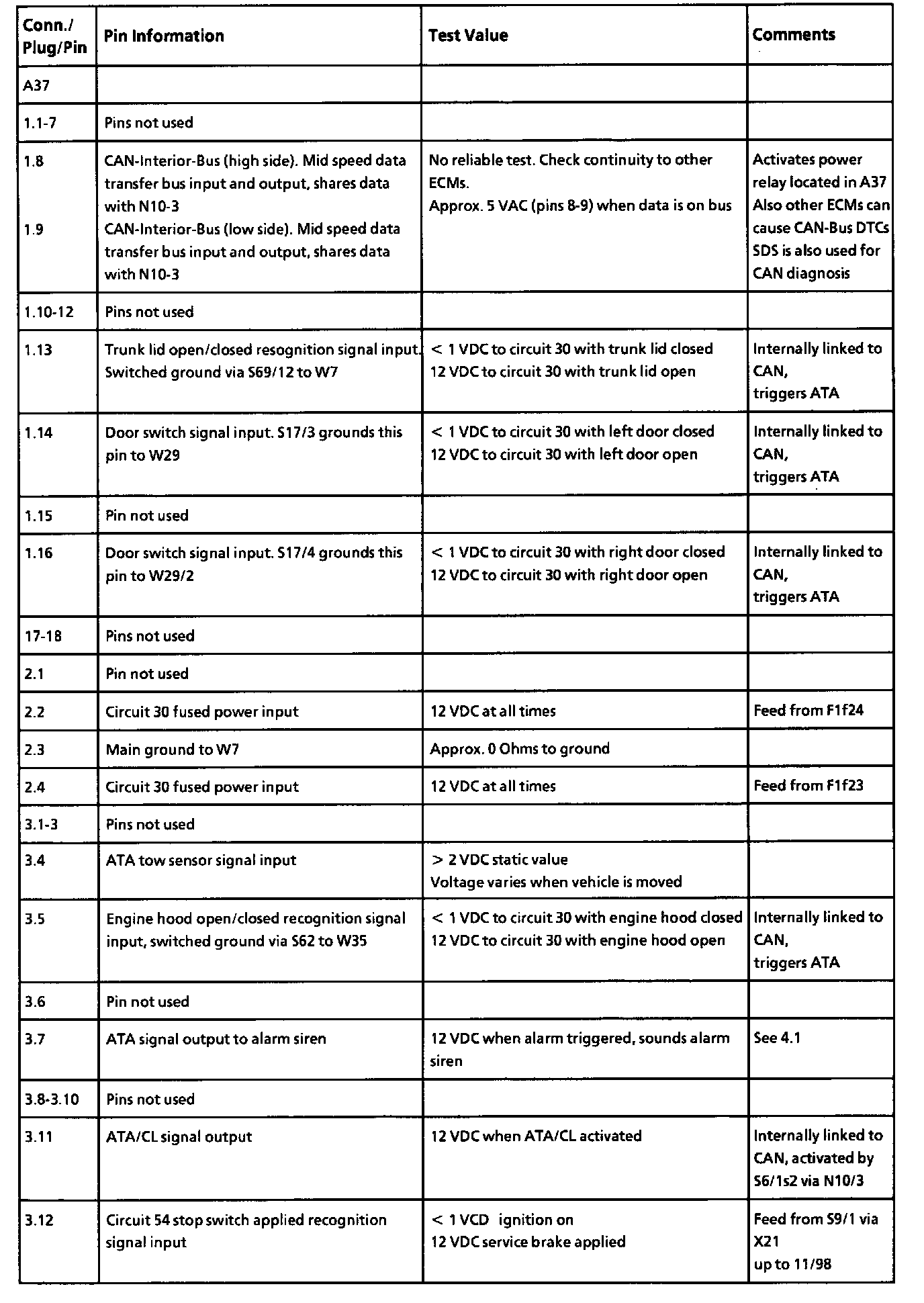

Pin Information, Part 1:

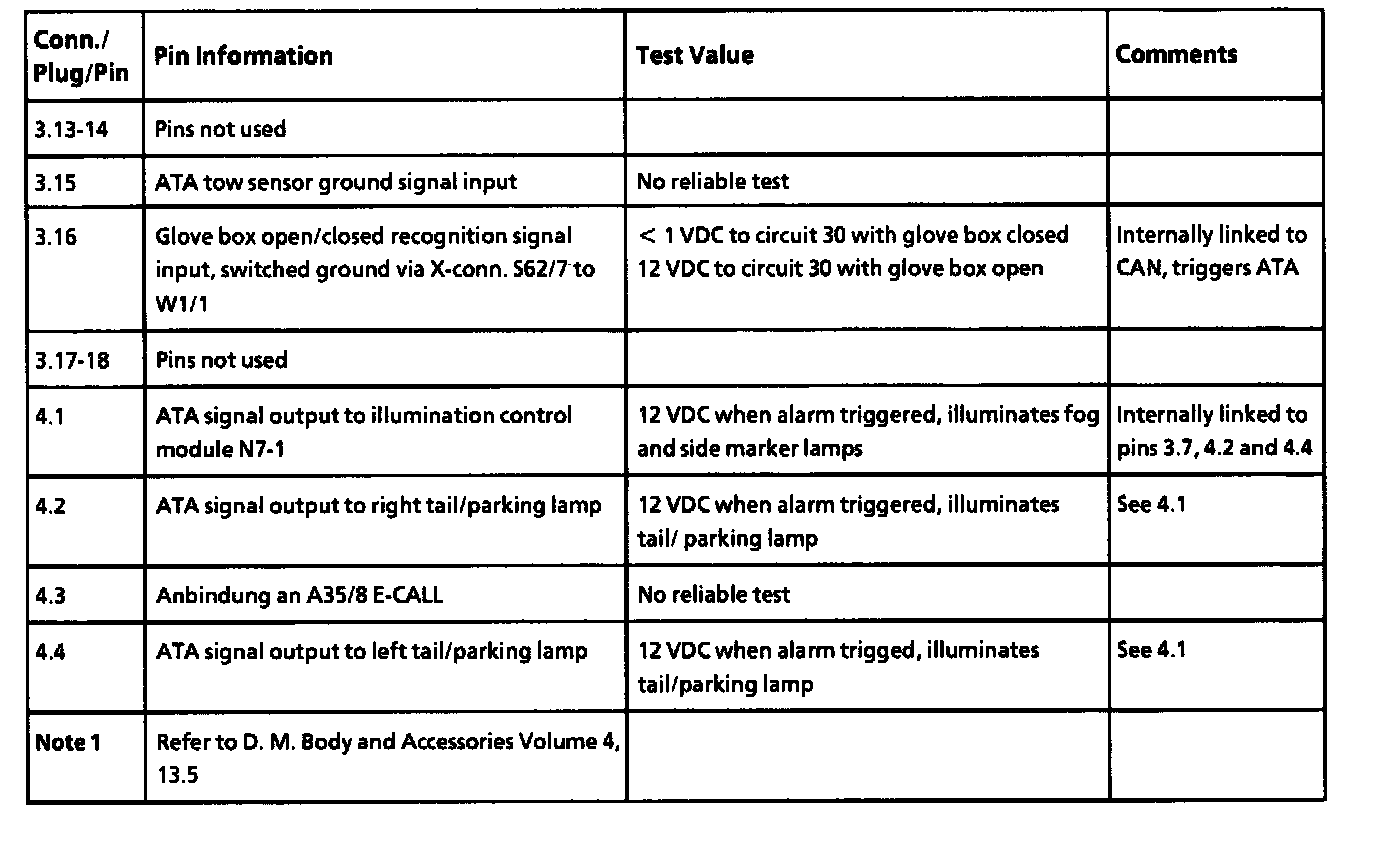

Pin Information, Part 2:
