Convertible Top Latch Actuator: Service and Repair

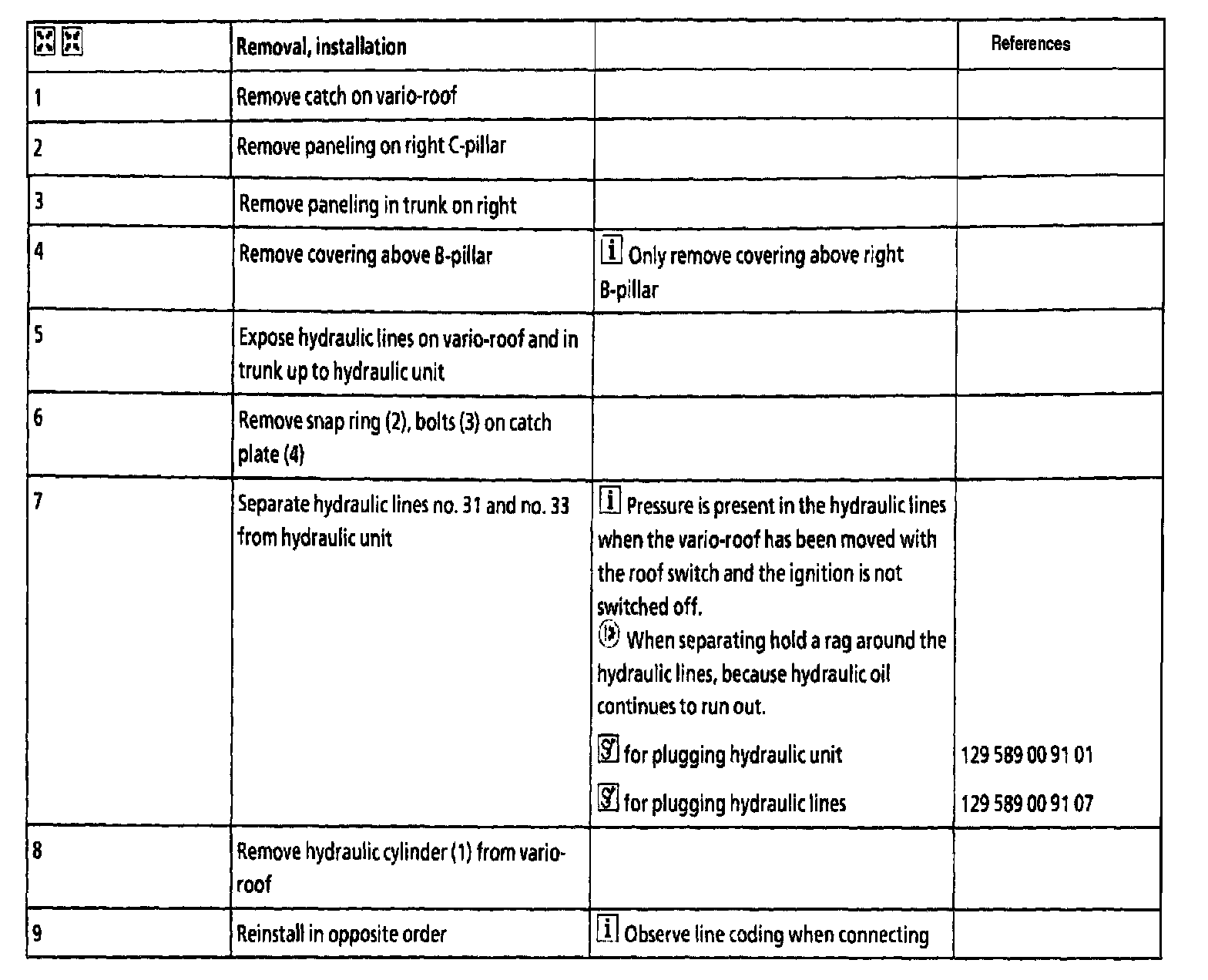

AR77.37-P-3560G Remove/Install Hydraulic Cylinder on Front Catch
