Overload Protection Thermocouple, Purpose/Location

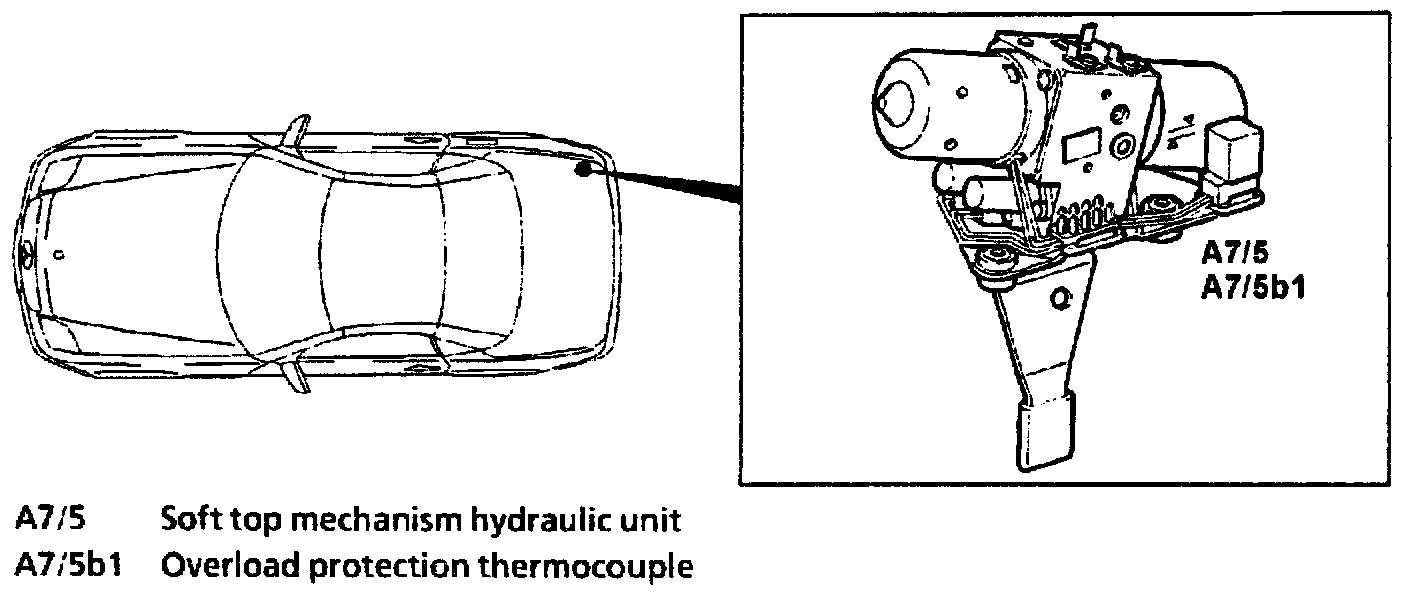

Location
Integrated into soft top mechanism hydraulic unit (A7/5).

Purpose
To protect soft top mechanism hydraulic unit against thermal overload.
