Home >> Mercedes Benz >> 2004 >> SLK 230 (170.449) L4-2.3L SC (111.983) >> Repair and Diagnosis >> Body and Frame >> Roof and Associated Components >> Convertible Top >> Convertible Top Cable >> Adjustments

Convertible Top Cable: Adjustments

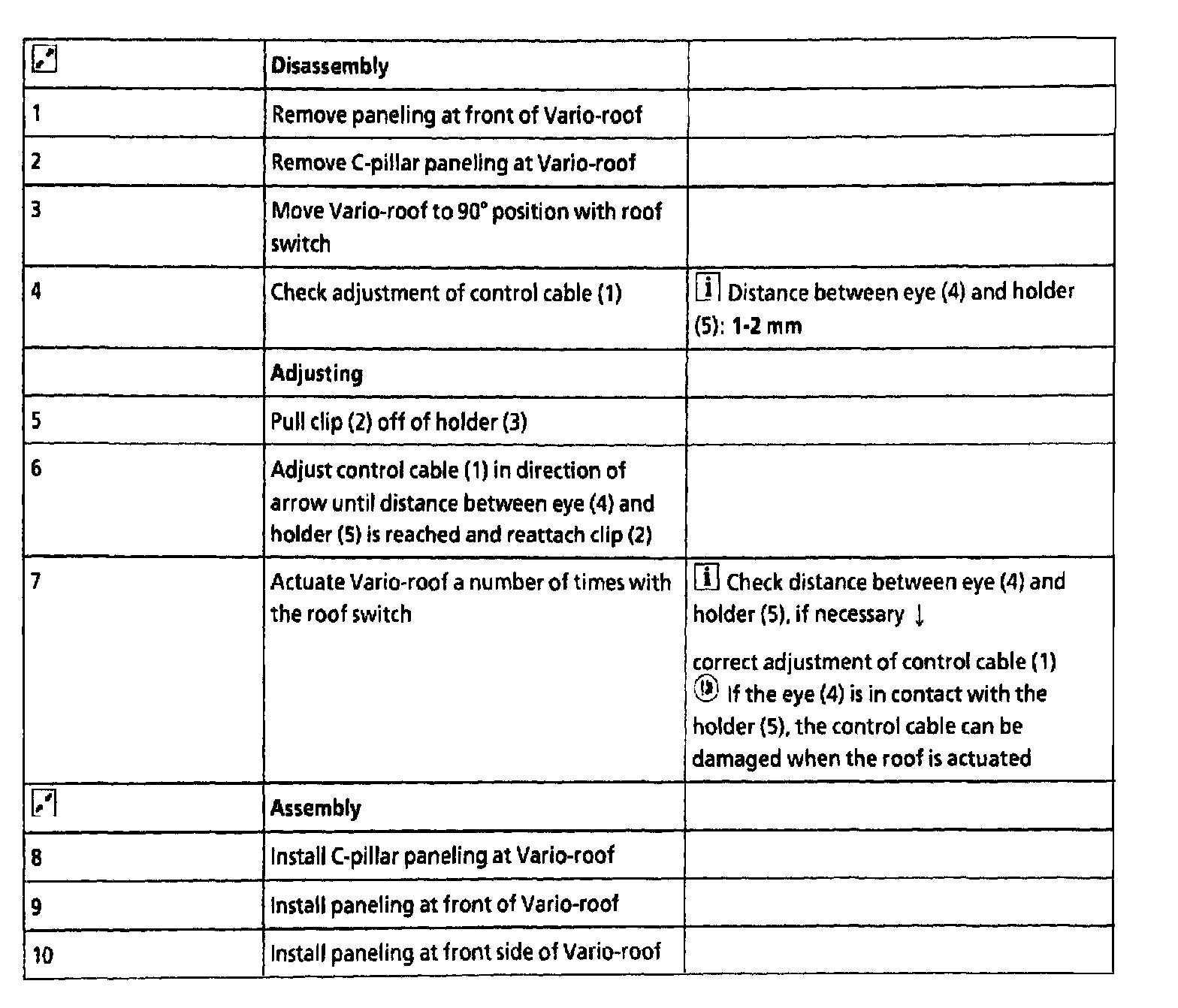

AR77.33-P-3470G Adjust Control Cable For Lock on C-Pillar
