Convertible Top Relay: Description and Operation

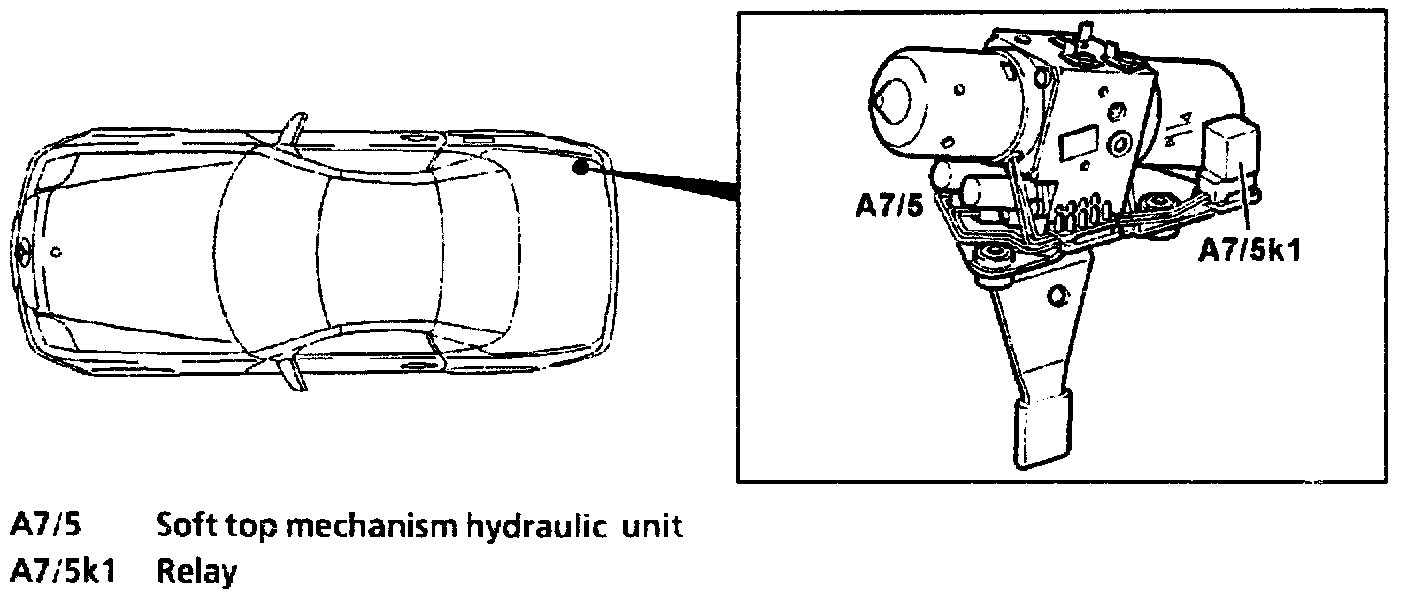

Location
On hydraulic unit (A7/5)

Purpose
To provide power to motor for soft top mechanism hydraulic unit (A7/5).
