Trunk / Liftgate Latch Release Cable: Service and Repair
AZ88.50-P-0002-04G Retrofitting Control Cable

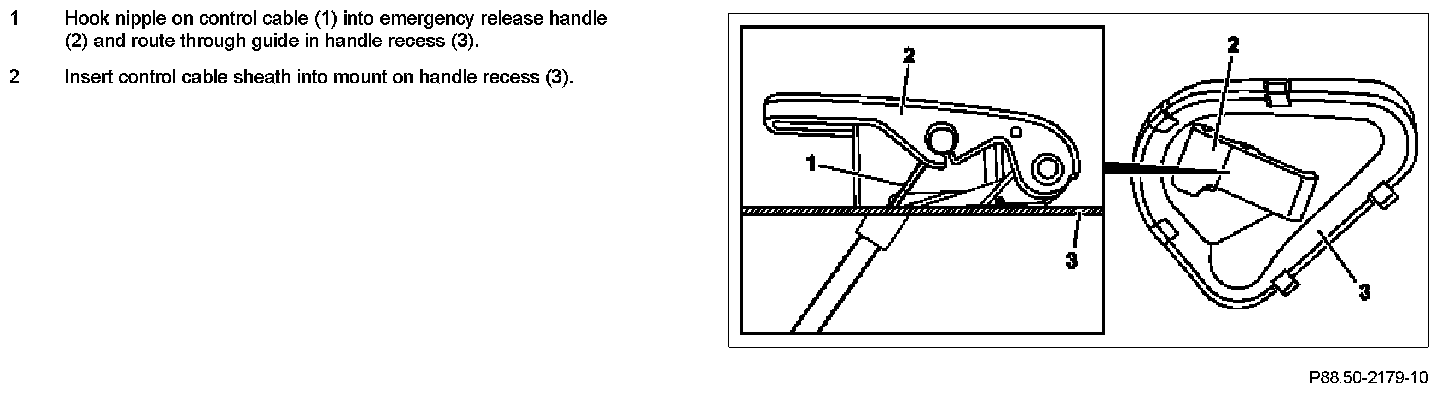

Steps 1 - 2:

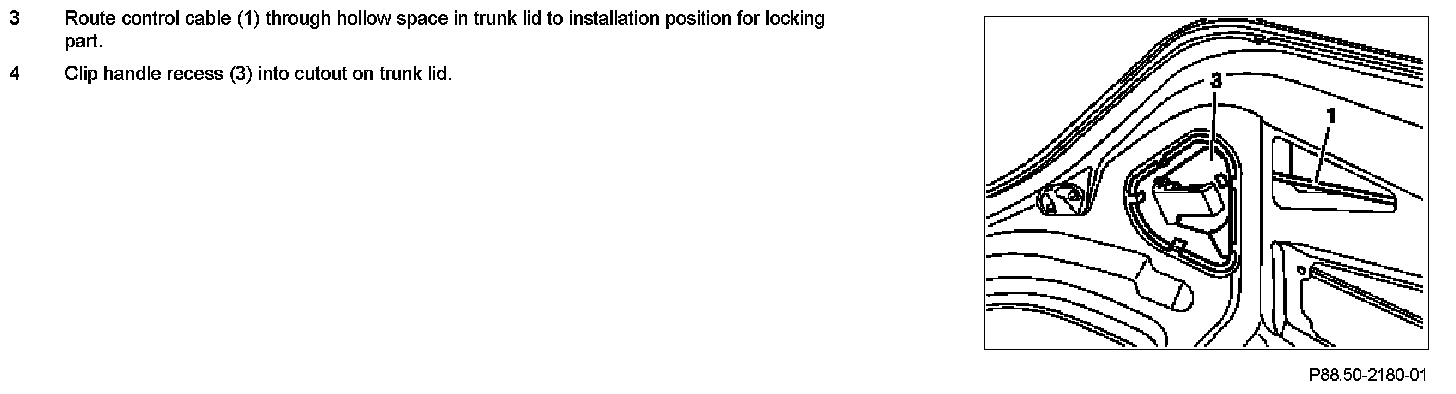

Steps 3 - 4:

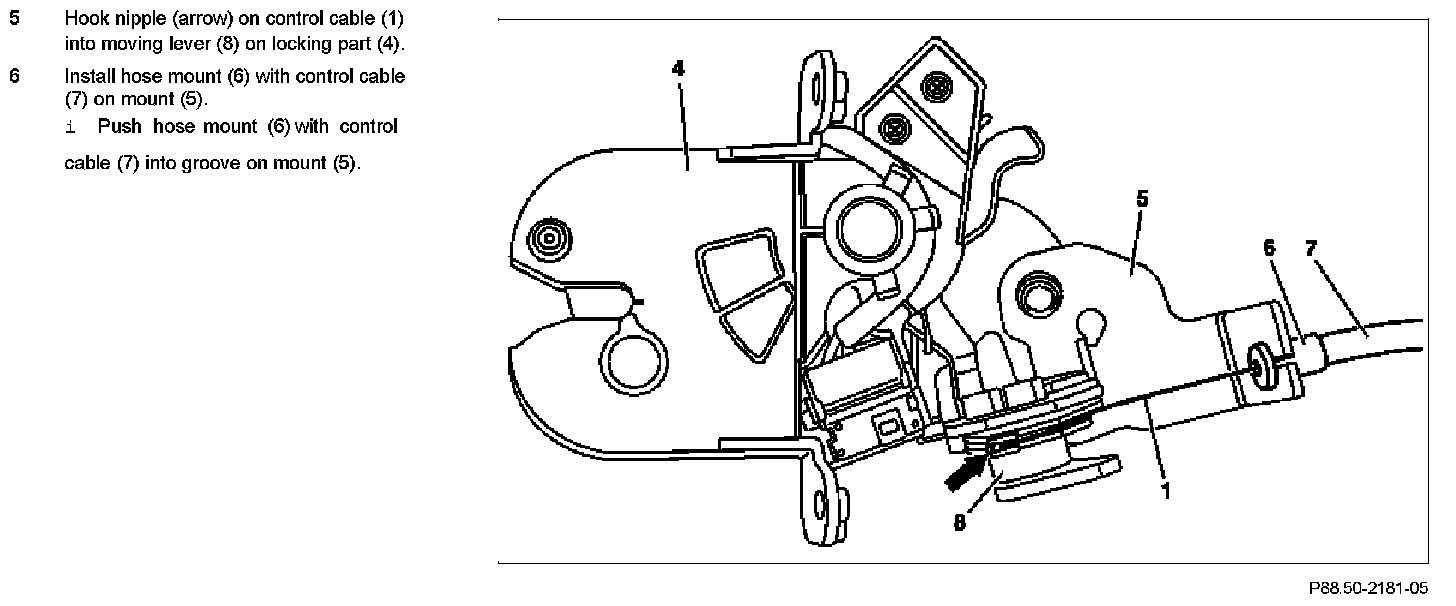

Steps 5 - 6:
