Power Trunk / Liftgate Lock Actuator: Service and Repair

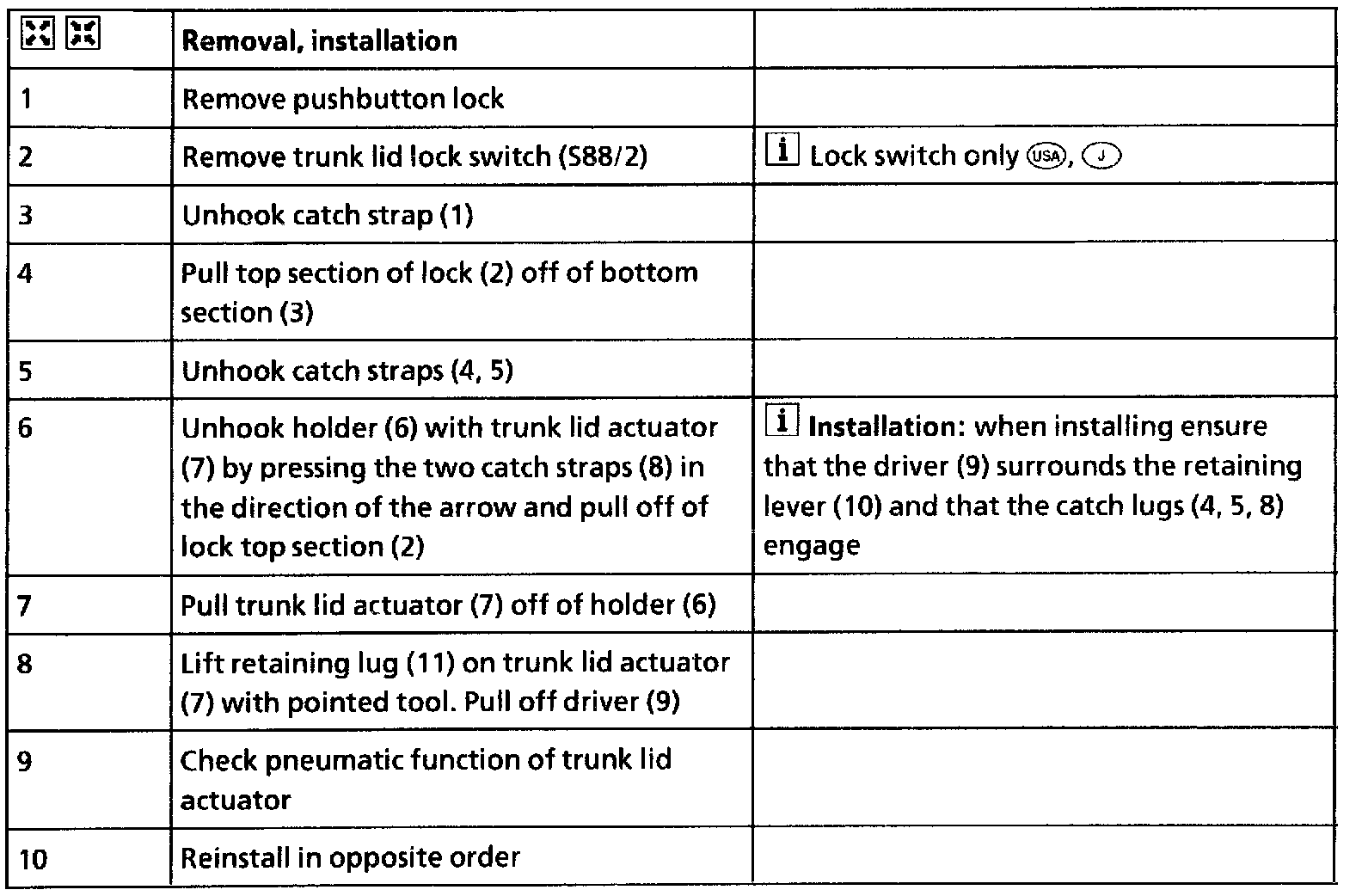

Removing and installing trunk lid actuator

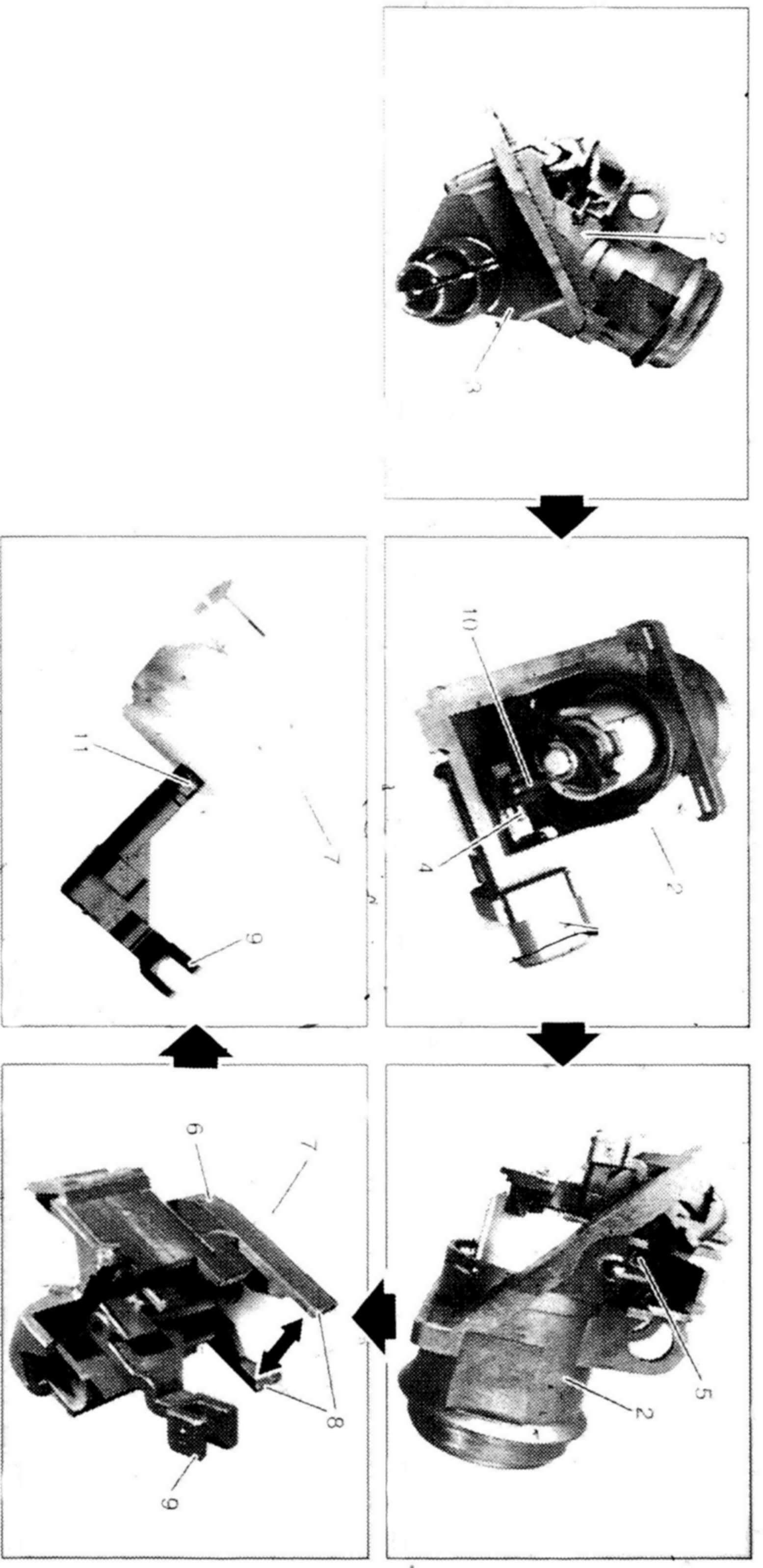

1 Ctach strap
2 Top section of lock
3 Bottom section of lock
4 Catch strap
5 Catch strap
6 Holder
7 Trunk lid actuator
8 Catch strap
9 Driver
10 Retaining lever
11 Retaining lug
