Front Door Limiter: Service and Repair



AR72.10-P-2100G Remove/Install Door Catch

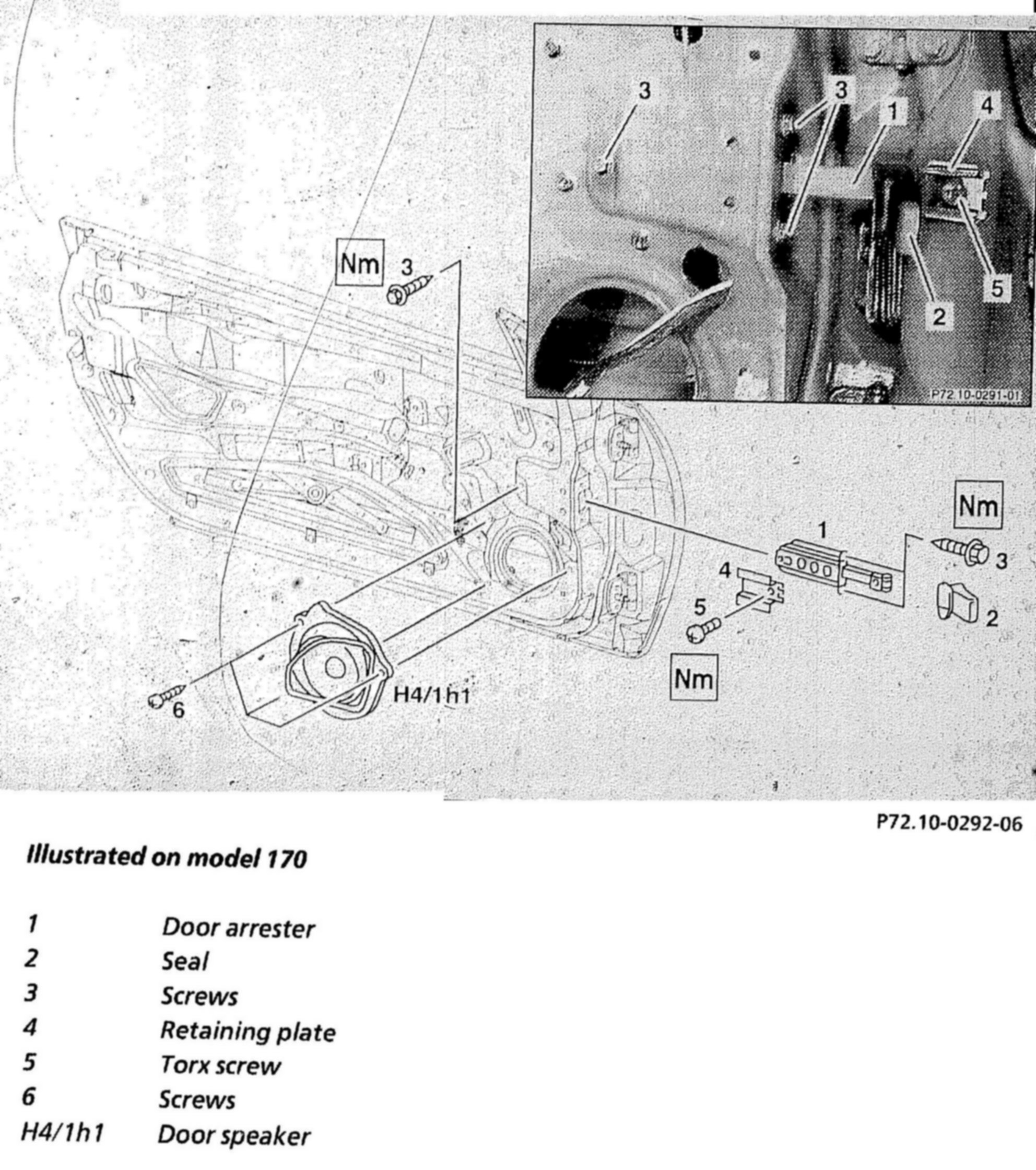

Illustrated On Model 170:

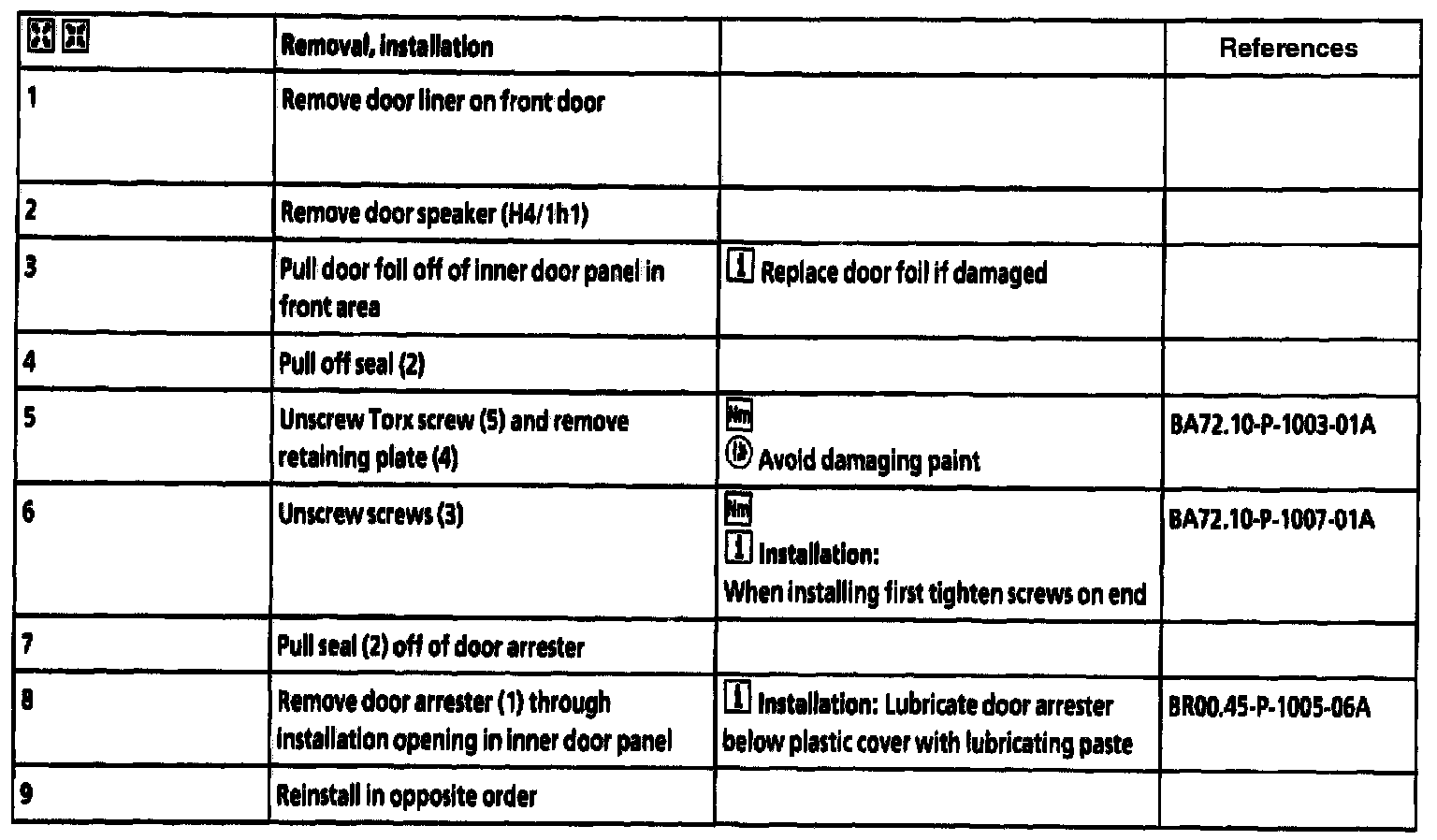

Removal/Installation, Steps 1 - 9:

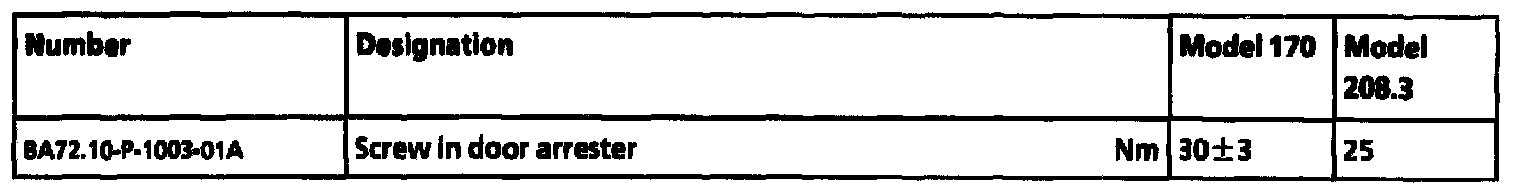

References (BA), Front Doors:

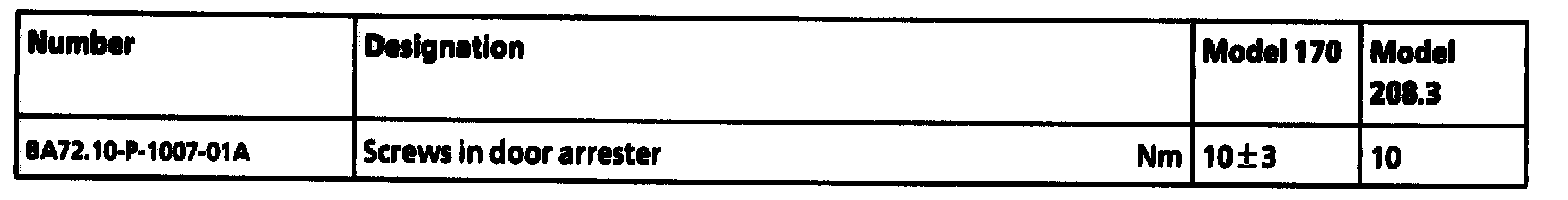

References (BA), Front Doors:






References (BR), Service Products For Repair:
