GF32.25-P-1000-02SL Spring Strut, Design

GF32.25-P-1000-02SL Spring strut, design
- with CODE (487) Active body control (ABC)
- up to 28.2.06

Component Identification:

Component Identification:

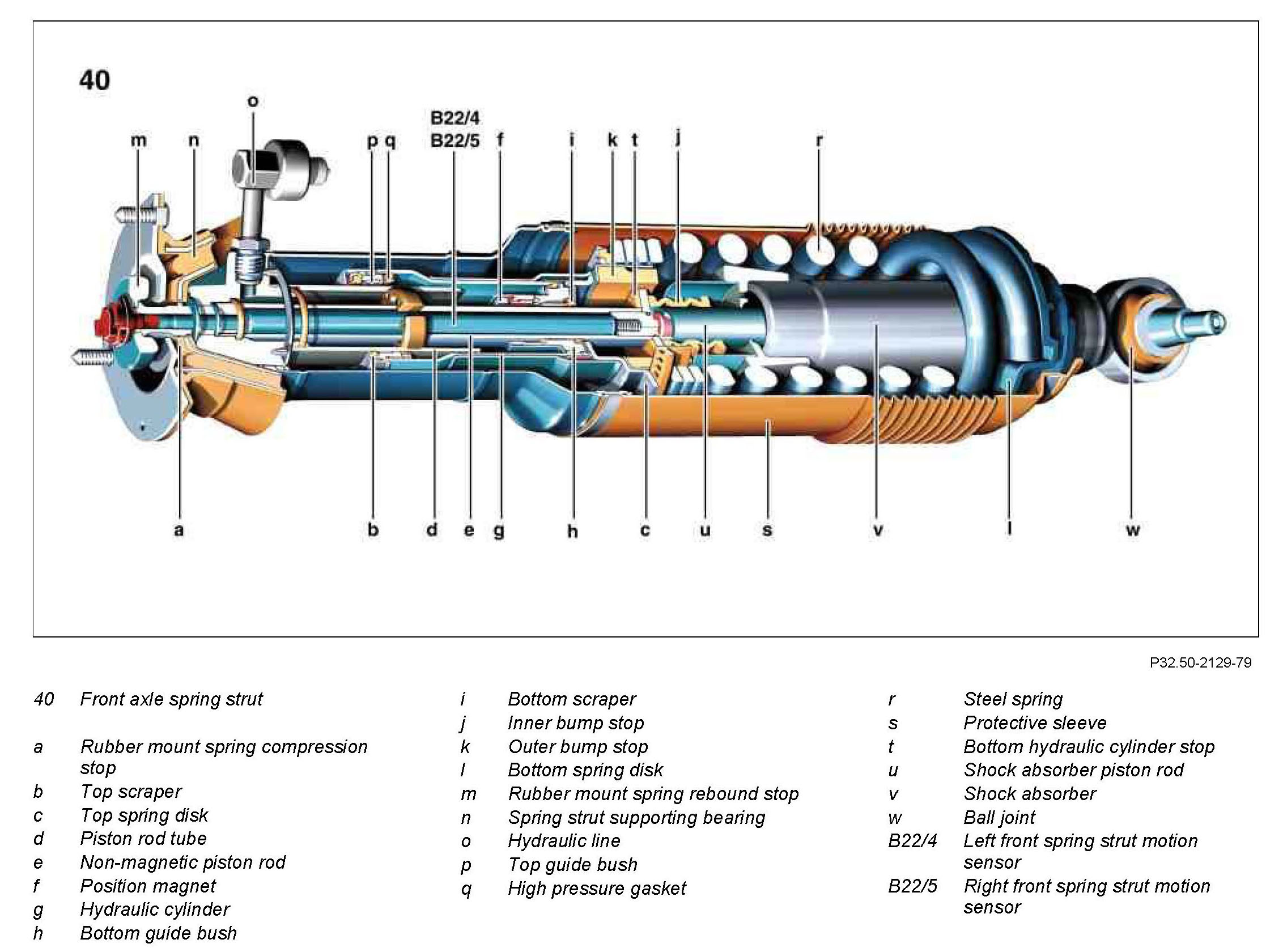

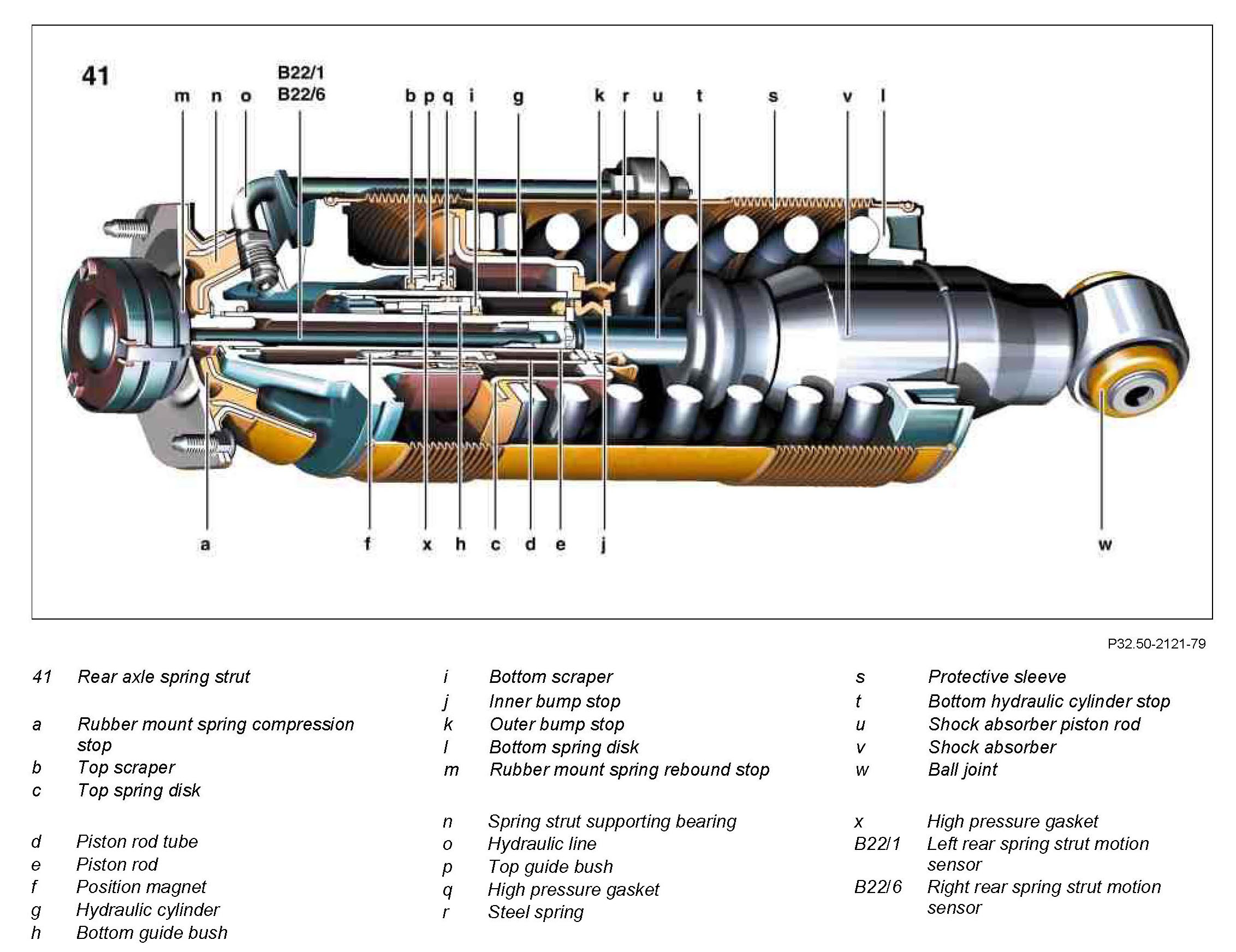

The spring strut forms a unit consisting of hydraulic cylinder, steel spring and shock absorber.

The spring strut plunger travel sensor is integrated in the hydraulic cylinder.

The shock absorber is a two-tube shock absorber with gas preload.
