GF46.30-P-3300A Tandem Pump, Location/Task/Design/Function

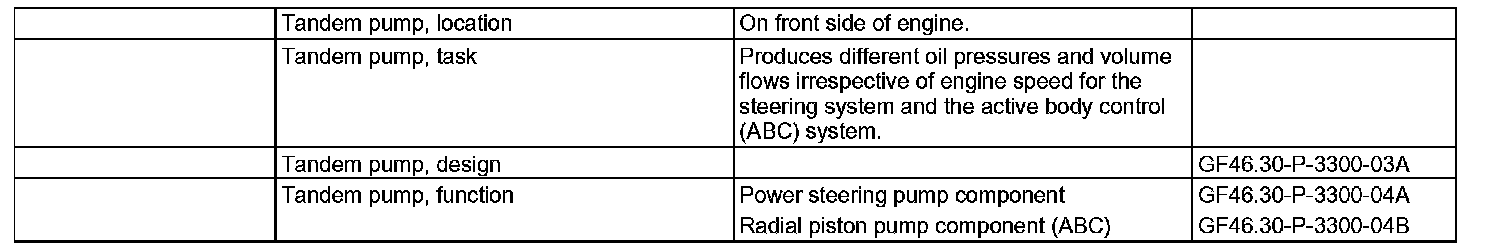

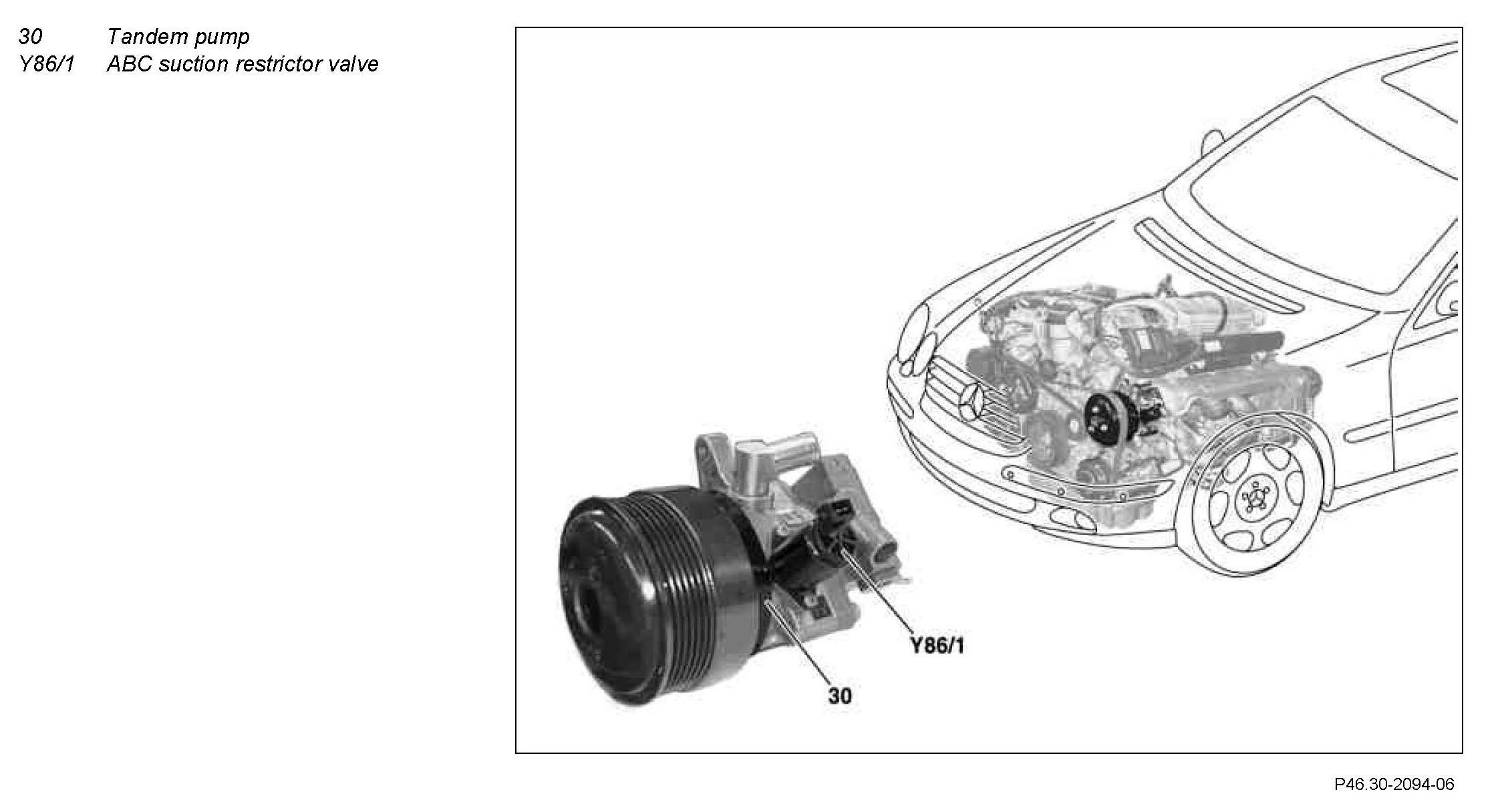

GF46.30-P-3300A Tandem pump, location/task/design/function
- with CODE (487a) Active body control (ABC)


Component Identification:





Manufacturer identification
LFR430=
LuK Fahrzeughydraulik GmbH & Co KG
