GF46.30-P-3300-03A Tandem Pump, Design

GF46.30-P-3300-03A Tandem pump, design
- with CODE (487a) Active body control (ABC)

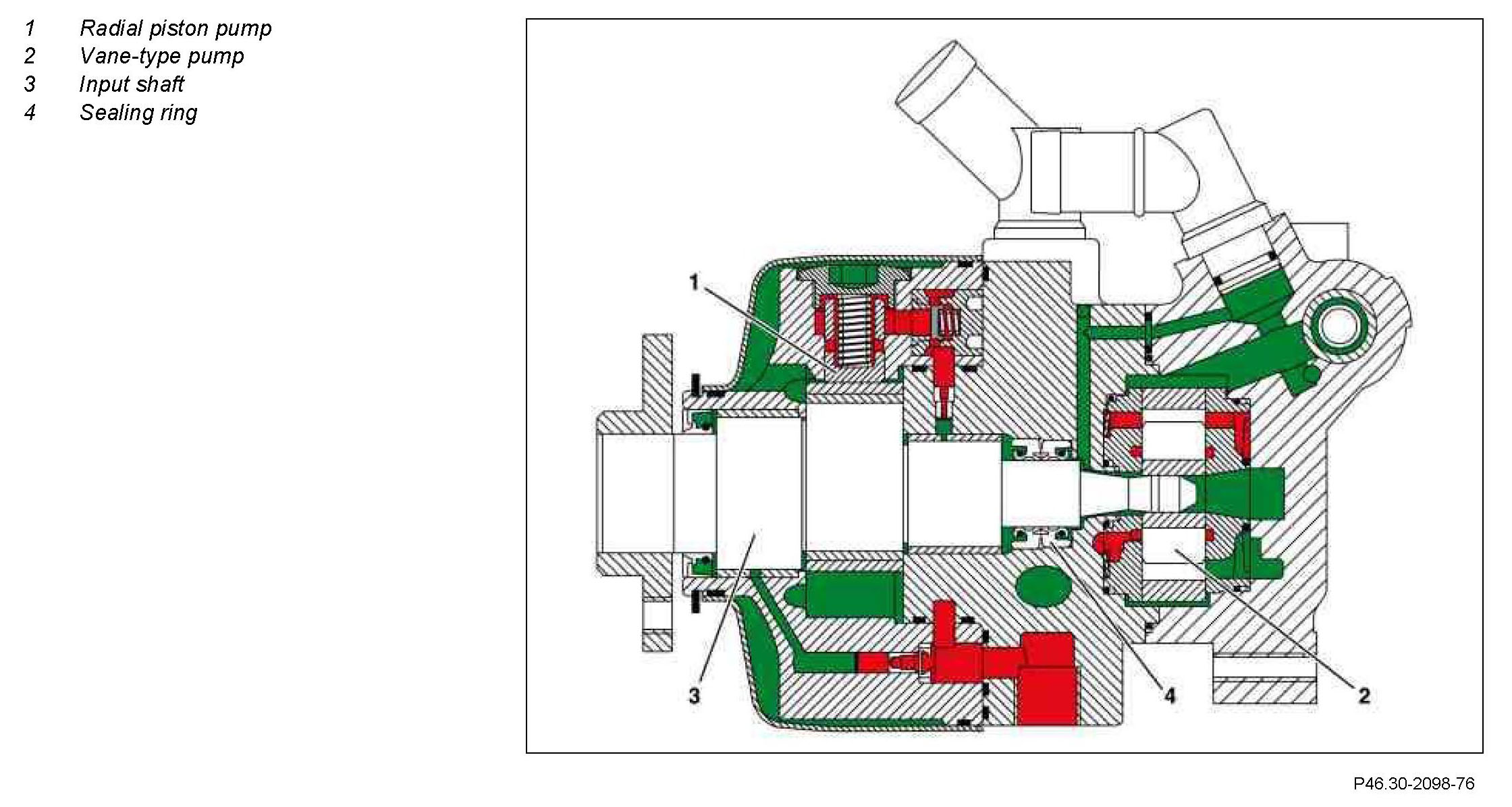

Component Identification:

The tandem pump consists of two pumps, each supplying one circuit. The pump facing the input shaft is a radial piston pump supplying the hydraulics of the active body control (ABC) system.

The rear pump is a vane-type pump supplying the hydraulics of the steering system. Both pumps are driven by a common input shaft (3) and are carried in common bearings. The hydraulic circuits are separated from each other by a sealing ring (4).
