Tubular Frame Open Limit Switch, Location/Purpose

Tubular Frame Open Limit Switch, Location/Purpose

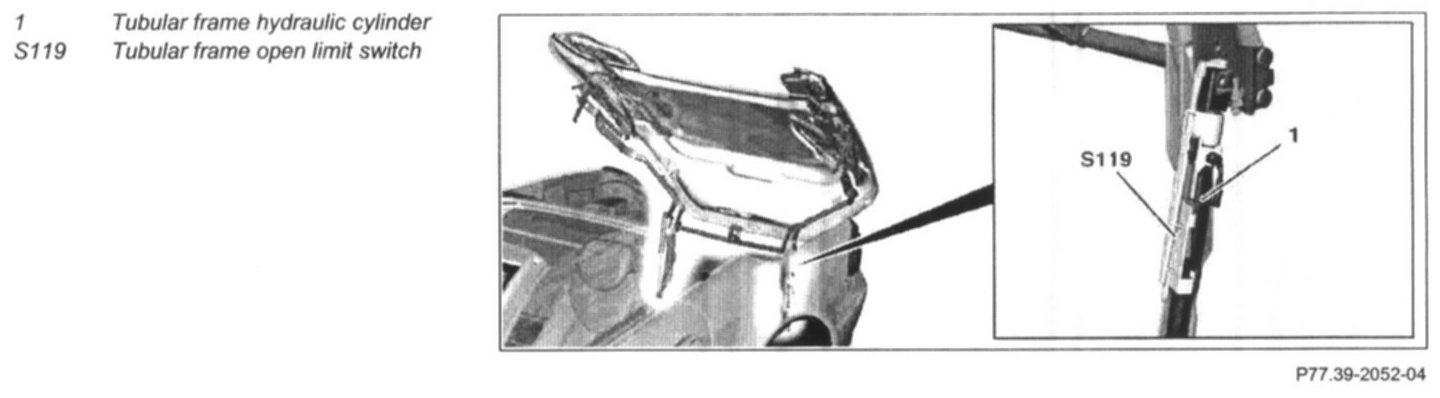

Location
Attach directly to tubular frame hydraulic cylinder and actuated by a pusher connected to the piston rod.

Purpose
A single-pole normally open contact sends a ground signal to the RVC control module (N52) as soon as the tubular frame has reached its open end position.
