AR54.65-P-0001R Remove/Install Parktronic System (PTS) Sensors In Front Bumper

AR54.65-P-0001R Remove/Install Parktronic System (PTS) Sensors In Front Bumper
- with CODE (220) Parktronic System (PTS)

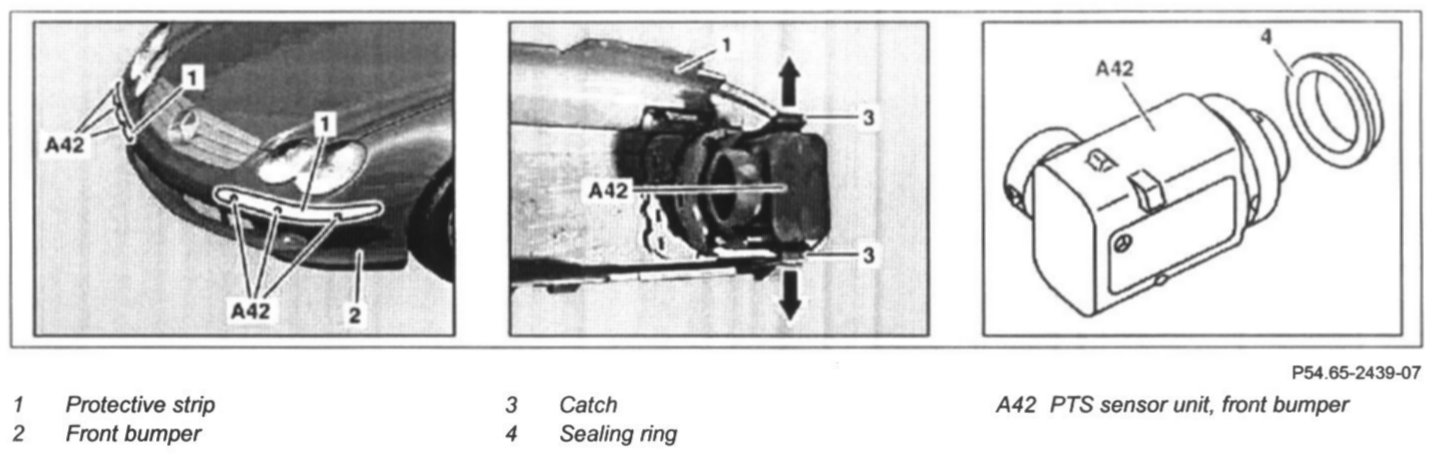

1 Remove molding (1) from front bumper (2)
2 Unlock locks (3) in direction of arrow using unlocking tool.
3 Remove PTS sensor unit, front bumper (A42) from molding (1).

NOTE: Installation: inspect sealing ring (4), replace if damaged

4 Install in the reverse order
