GF82.95-P-2000R TELE AID Switch-On/Switch-Off Characteristics, Function

GF82.95-P-2000R TELE AID Switch-on/switch-off Characteristics, Function
- with CODE (855) TELE AID

Component Identification:

TELE AID switch-on characteristics emergency call
The TELE AID emergency call system is switched on by turning the transmitter key (A8/1) in the EIS control unit (N73) to position 1 or 2. The switch-on procedure is indicated by the indicator lamp flashing for 4 sec. in the SOS pushbutton switch (S93/3). Moreover, the telephone transmitter/receiver unit and TELE AID, D2B (A35/17) waits for a ready confirmation from the restraint system control unit (N2/7). The system is operational as soon as the ready confirmation is received. If the system is not authorized an error message appears in the instrument cluster (A1) and the system is not operational.

TELE AID switch-on characteristics telediagnosis
The TELE AID telediagnosis system is always ready for operation, even if the transmitter key (A8/1) in the EIS control unit (N73) is in the 0 position, and the telediagnosis pushbutton switch on the telephone handset (A34) of the telephone interface (A34/4) has been pressed for long enough. The telephone must be switched on (stand-by mode) and the TELE AID telediagnosis system must be authorized.

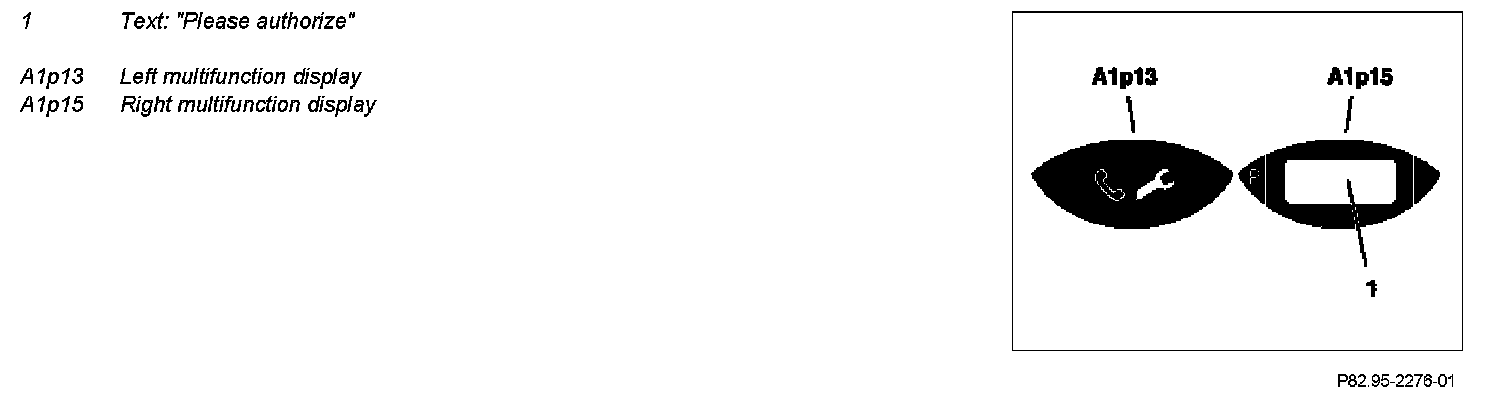

If the system is not authorized an error message appears in the instrument cluster (A1) and the system is not operational.

TELE AID switch-off characteristics emergency call
The TELE AID emergency call facility is switched off when the transmitter key (A8/1) in the EIS control unit (N73) is turned to position 0, no emergency call is active and the telephone interface (A34/4) is not set to shut-off delay.
The telephone system can be set to power-down in order to continue a telephone conversation for a certain time in spite of " Circuit 15R: OFF".
For control of the telephone system TELE AID remains also active during the telephone shut-off delay, however, it is not possible to trigger an emergency call .

During a call TELE AID is only then switched off when the emergency call is terminated.
^ If an authorization is in progress while switching off, the authorization is interrupted and TELE AID switched off.

TELE AID switch-off characteristics telediagnosis
When the telephone is switched off TELE AID telediagnosis is deactivated.
