Removal and Replacement
AR47.10-P-4100R Remove/Install Fuel Tank
- except CODE (P99) Special model "AMG Black Series"

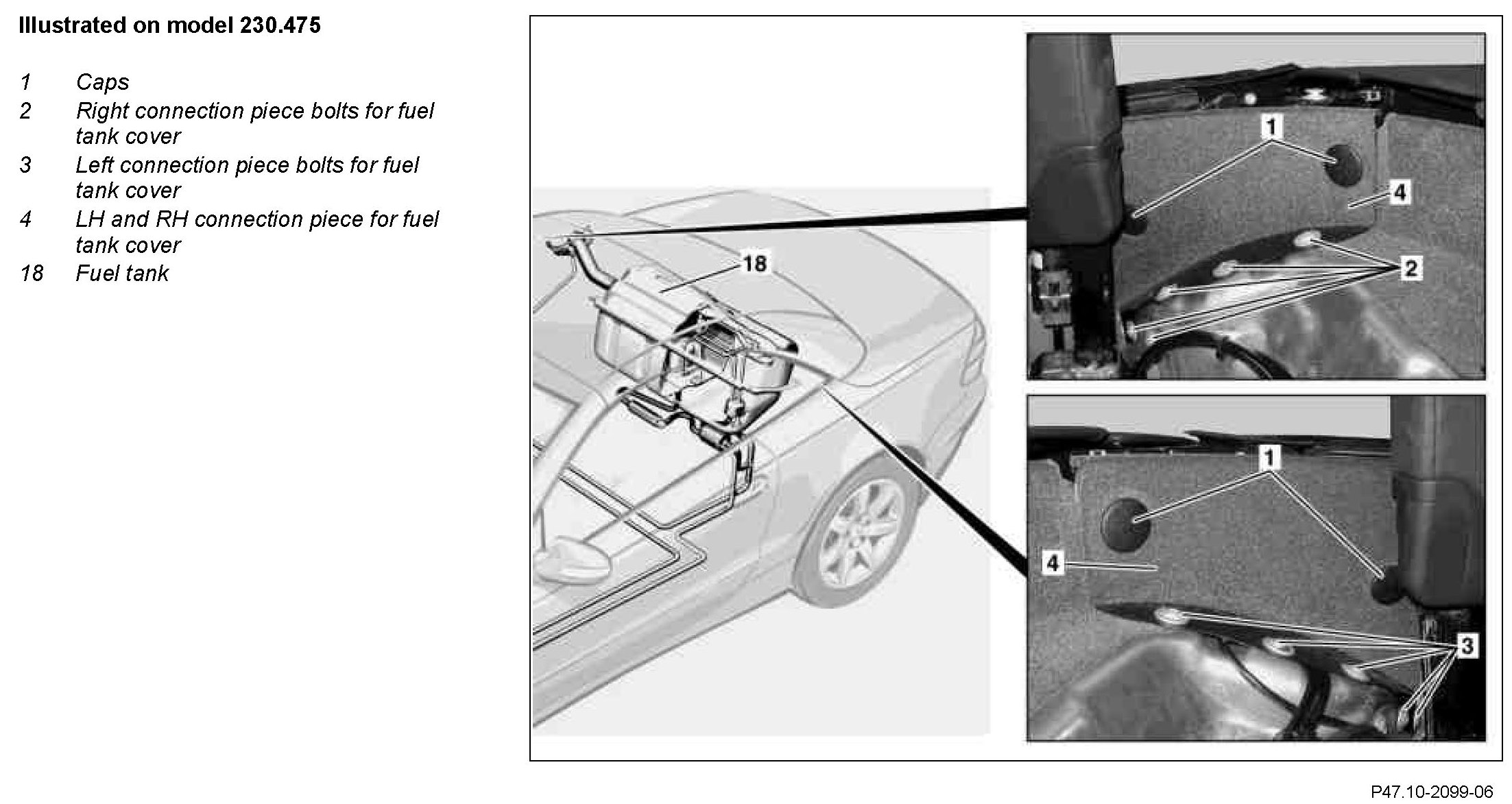

Component Identification:

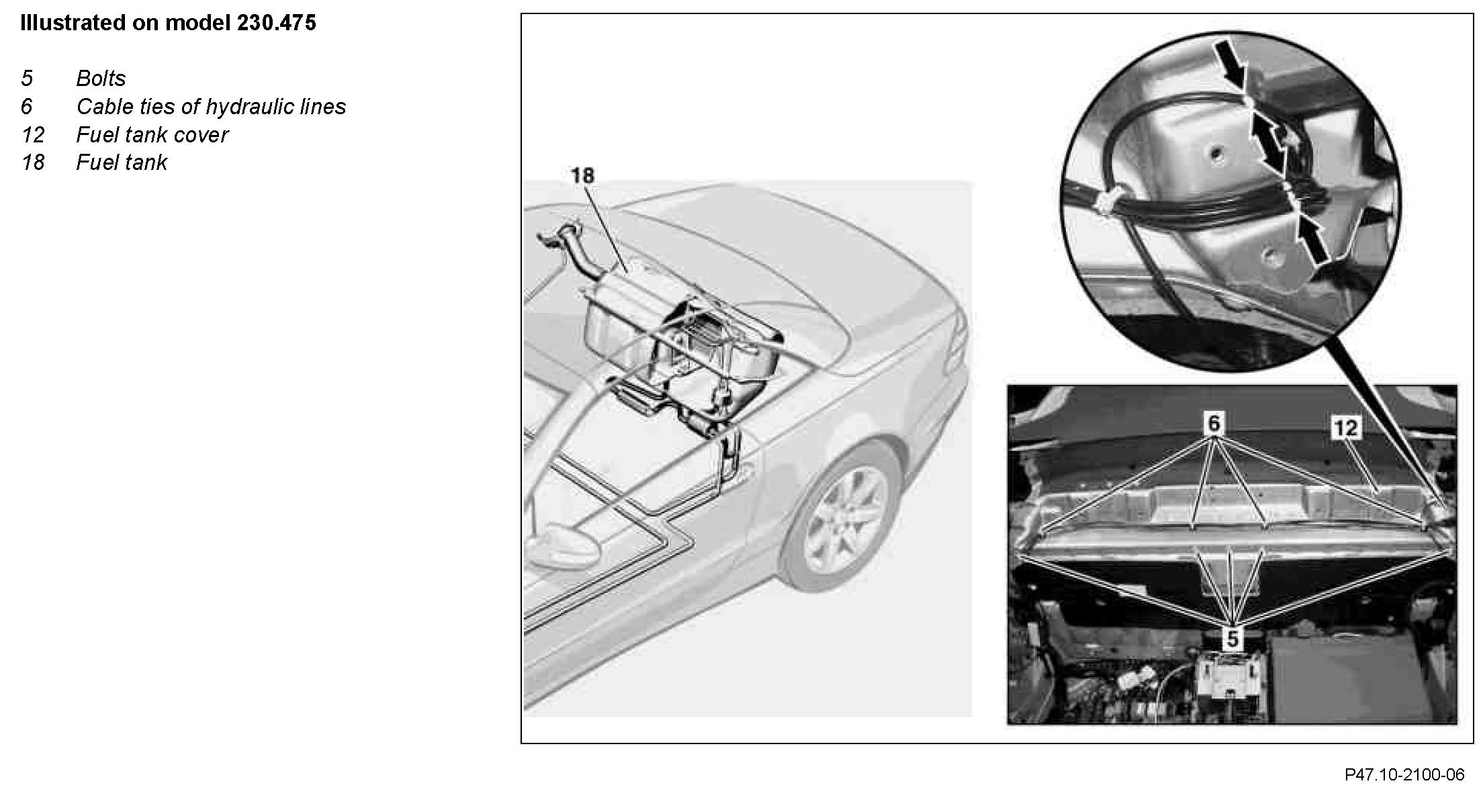

Component Identification:

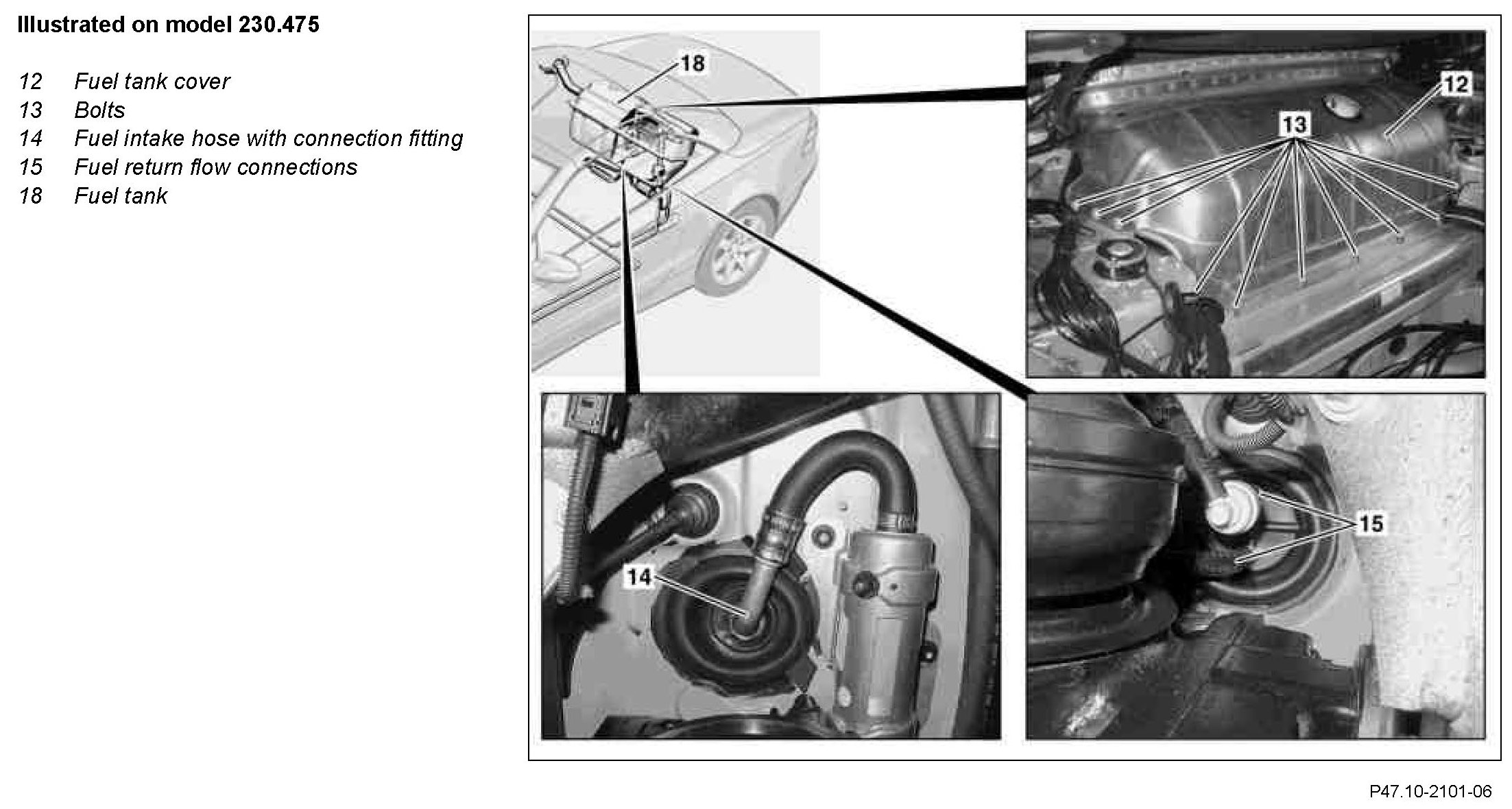

Component Identification:

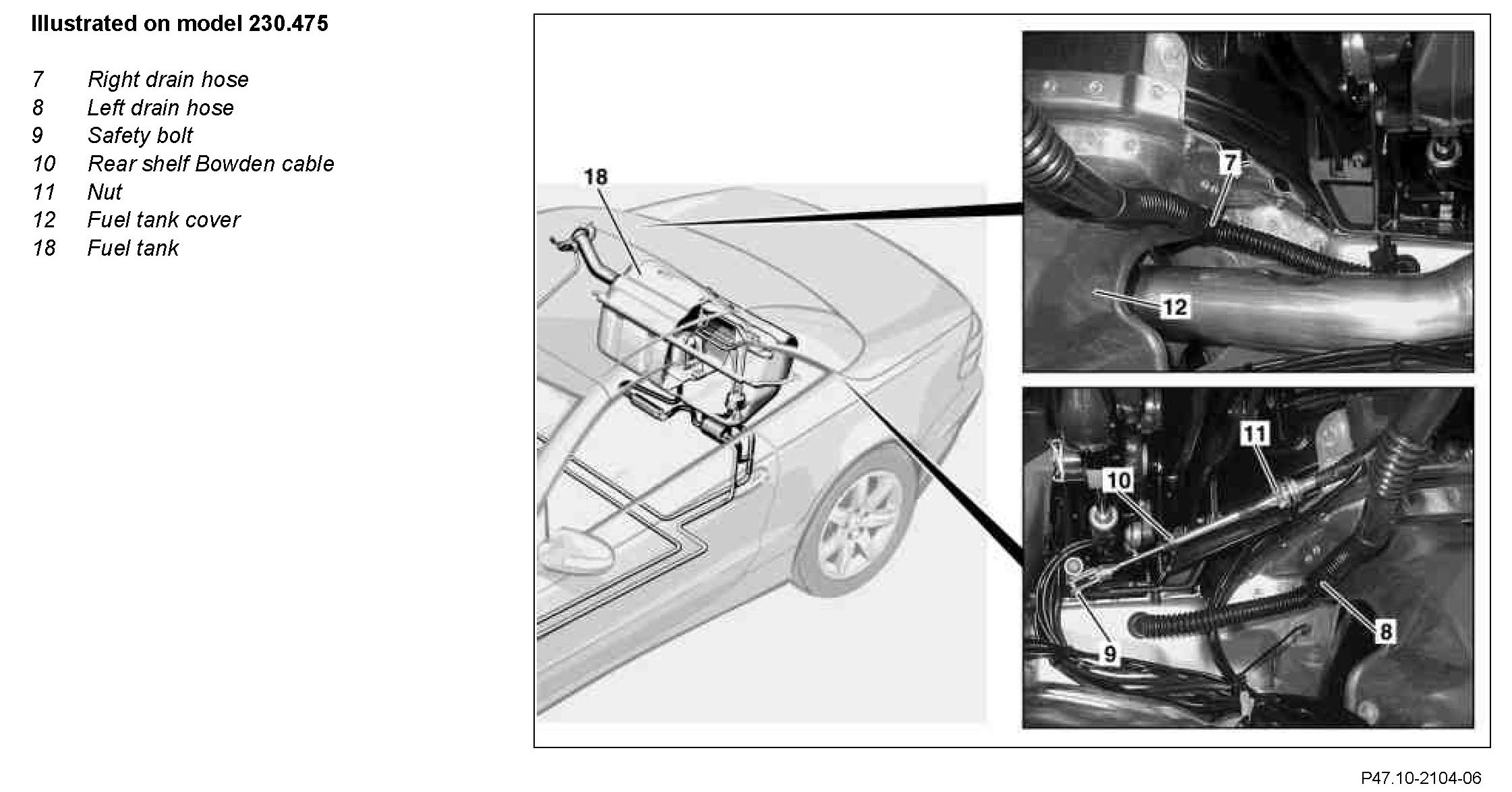

Component Identification:
Component Identification:
Component Identification:

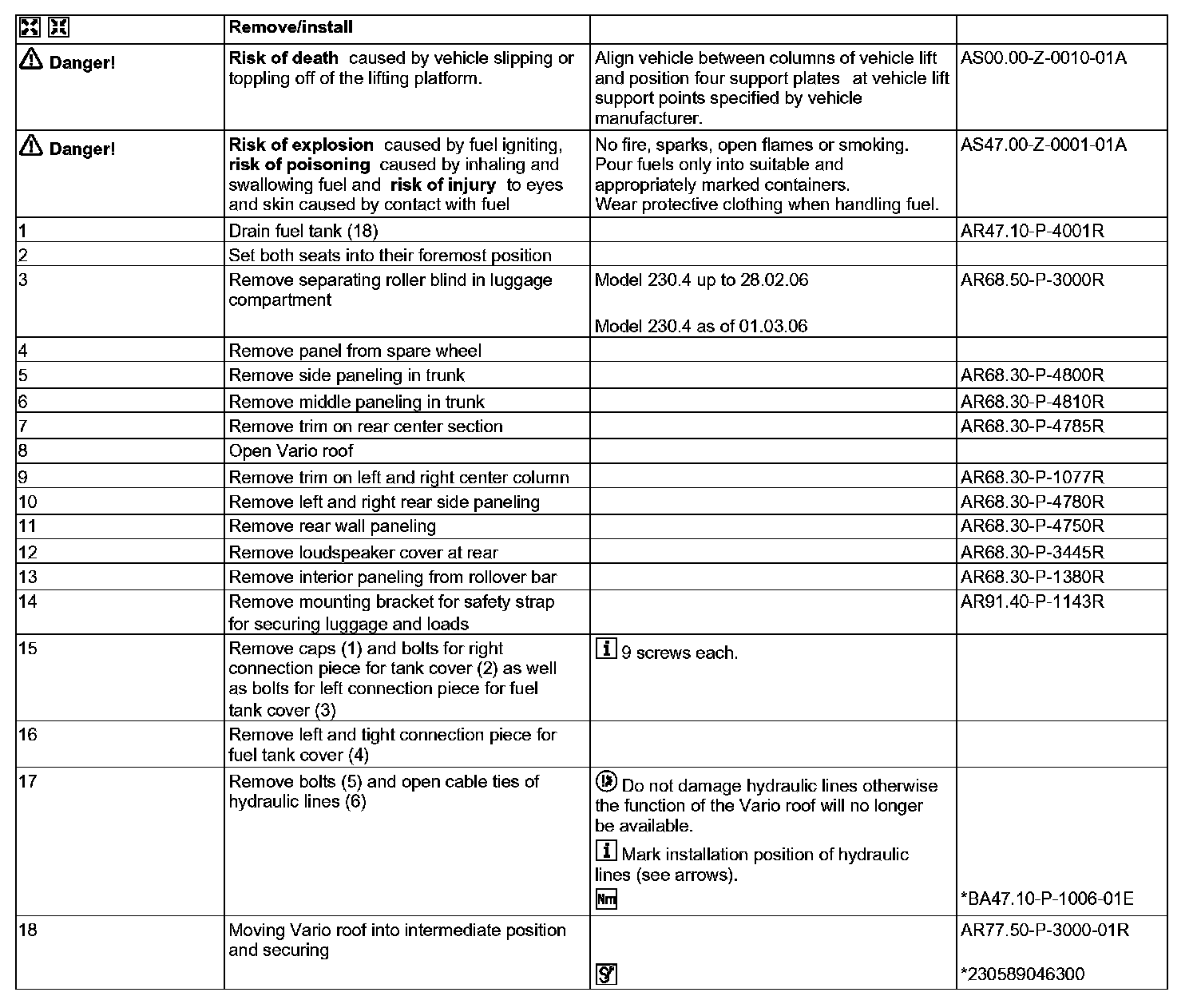

Steps 1- 18:
Steps 19 - 35:

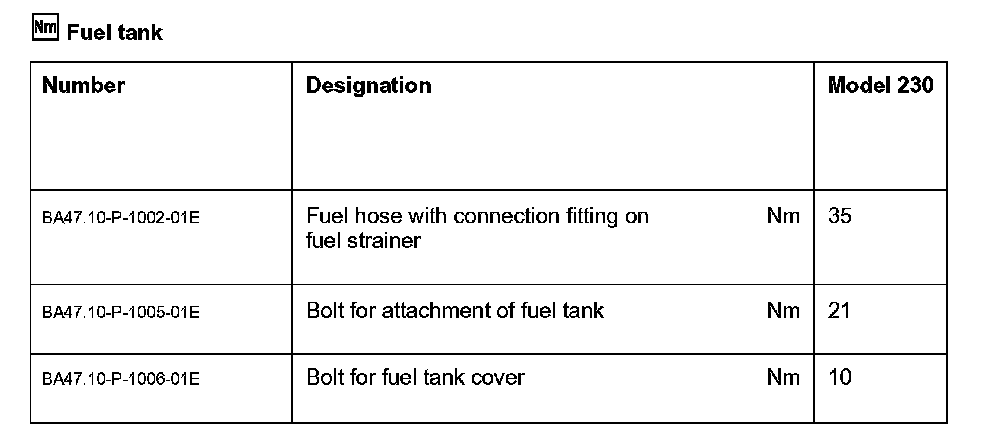

Fuel Tank:

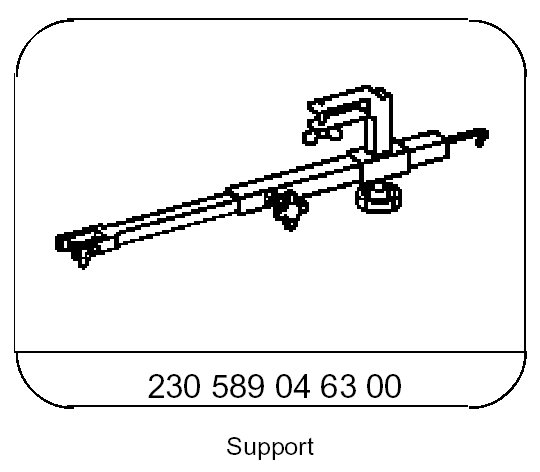

Special Tools:
Special Tools:
