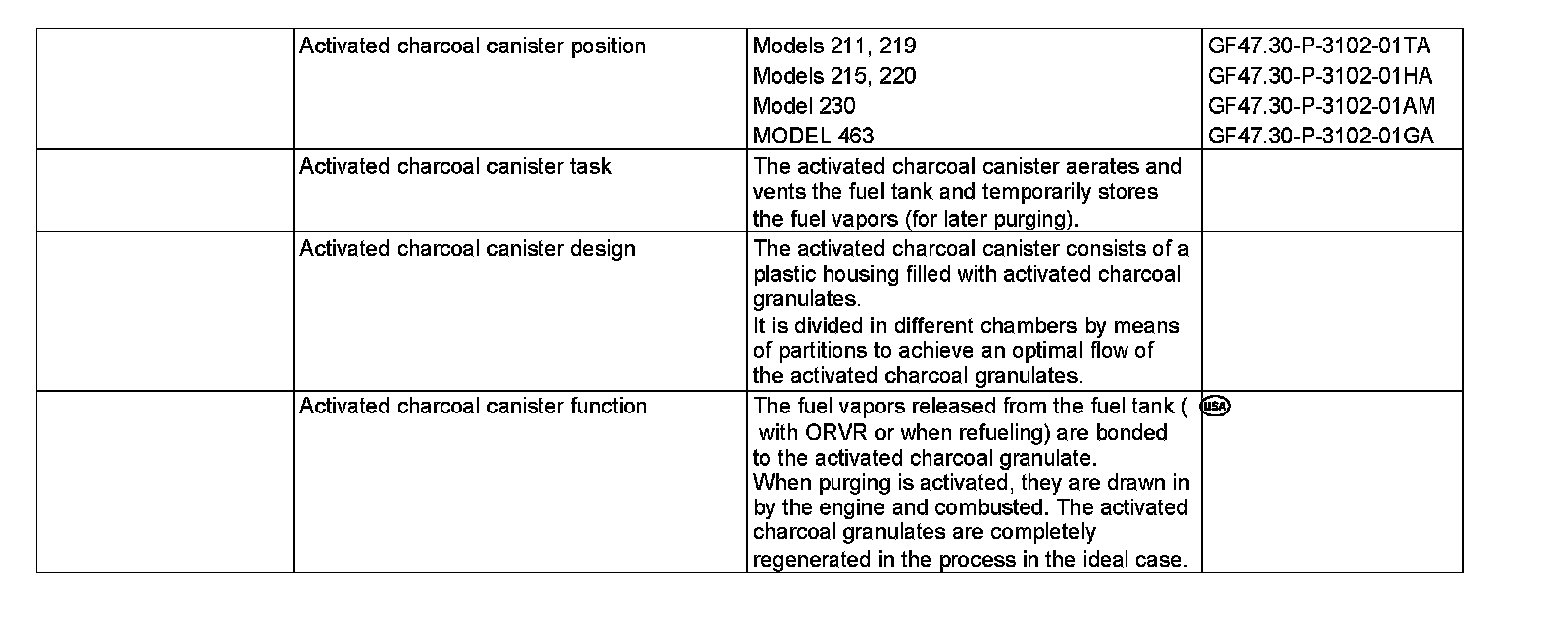

GF47.30-P-3102AM Activated Charcoal Canister - Location/Task/Design/Function

GF47.30-P-3102AM Activated Charcoal Canister - Location/Task/Design/Function
MODEL 211, 219 with ENGINE 113.990
MODEL 215 with ENGINE 113.991
MODEL 220 with ENGINE 113.991
MODEL 230 with ENGINE 113.992 /995 up to Model Year 2008
MODEL 463 up to 31.5.12 with ENGINE 113.993

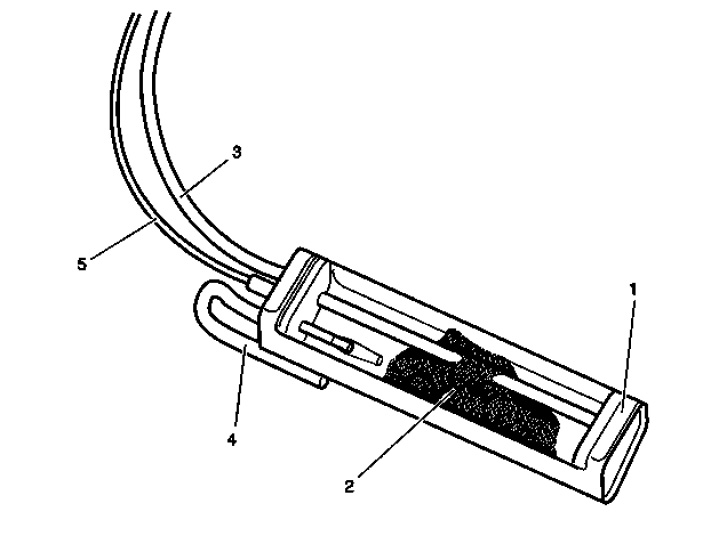

1 Housing (for a large volume: about 2.7 to 3.5 l)
2 Activated charcoal granulate
3 Aeration and vent line of fuel tank
4 Aeration and vent line of activated charcoal canister (with activated charcoal canister shutoff valve (Y58/4)
5 Purge line (to the purge control valve (Y58/1)
