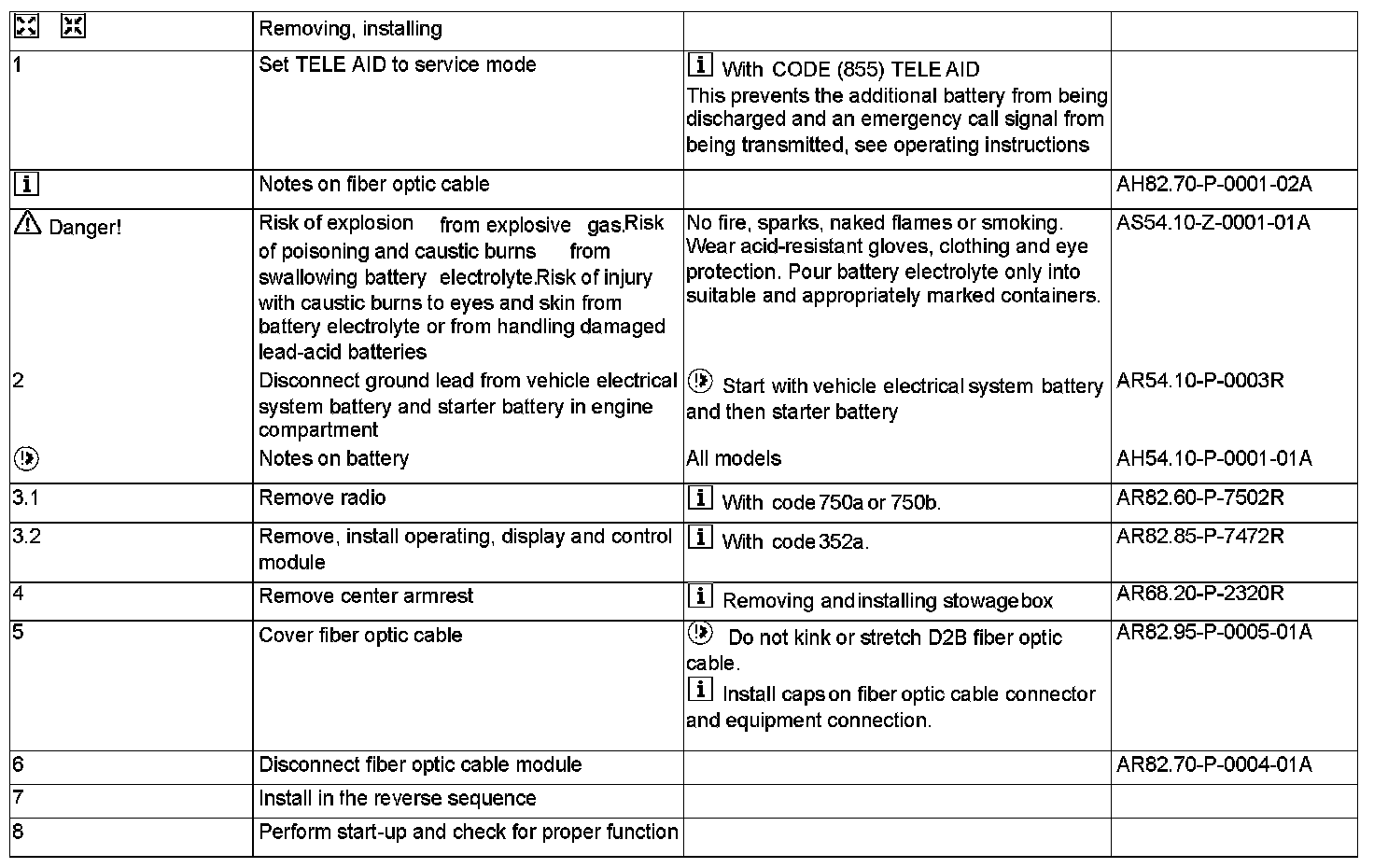

AR82.70-P-0004RE Remove/Install Fiber Optic Cable



AR82.70-P-0004RE Remove/Install Fiber Optic Cable

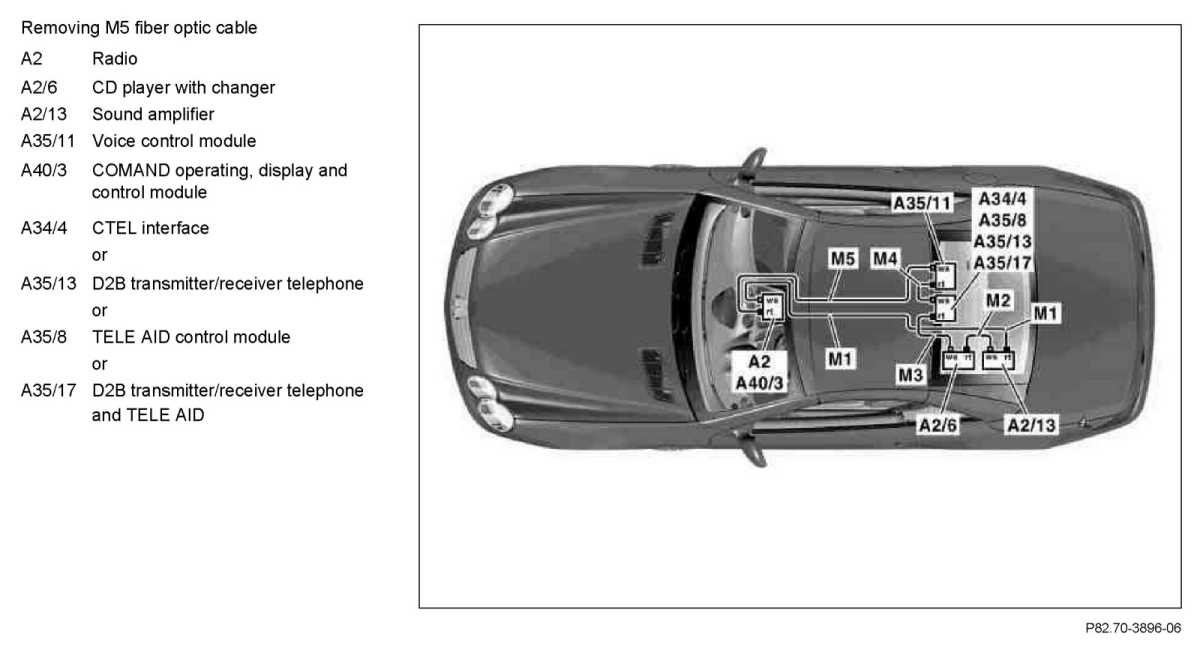

- Fiber optic cable between control modules behind center armrest and COMAND/radio
- with CODE (813) Voice control system (VCS)
- with CODE (852) CTEL preinstallation assembly at dome
- with CODE (853) MB standard cellular telephone
- with CODE (854) MB portable CTEL
- with CODE (855) TELE AID
