AR82.30-P-7800R Remove/Install Rain/Light Sensor
AR82.30-P-7800R Remove/Install Rain/Light Sensor
AR82.30-P-7800R Removing and Installing Rain/Light Sensor

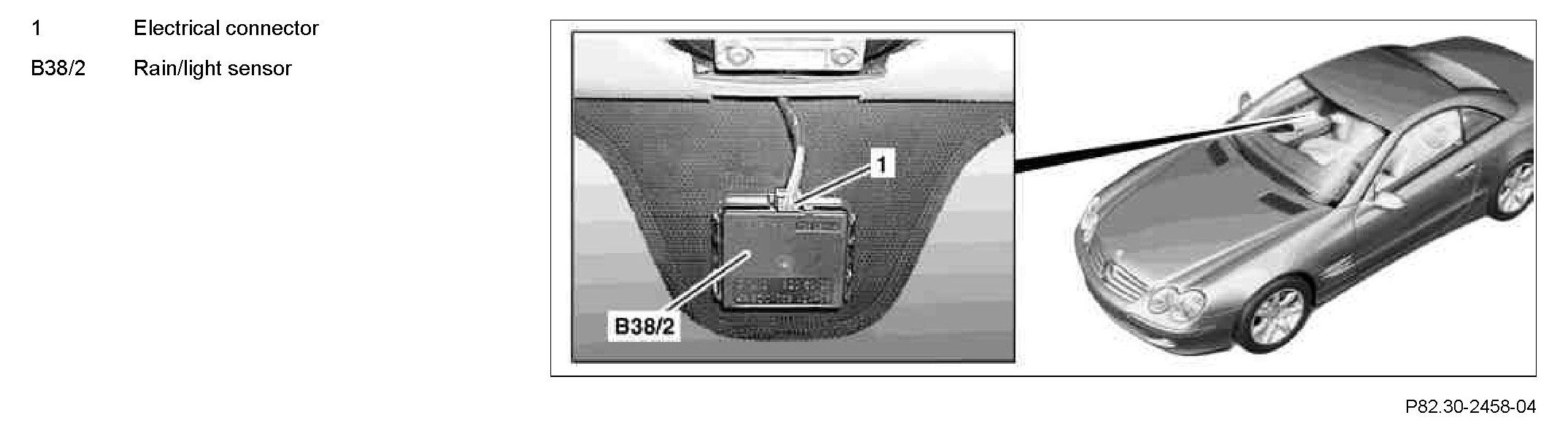

Component Identification:

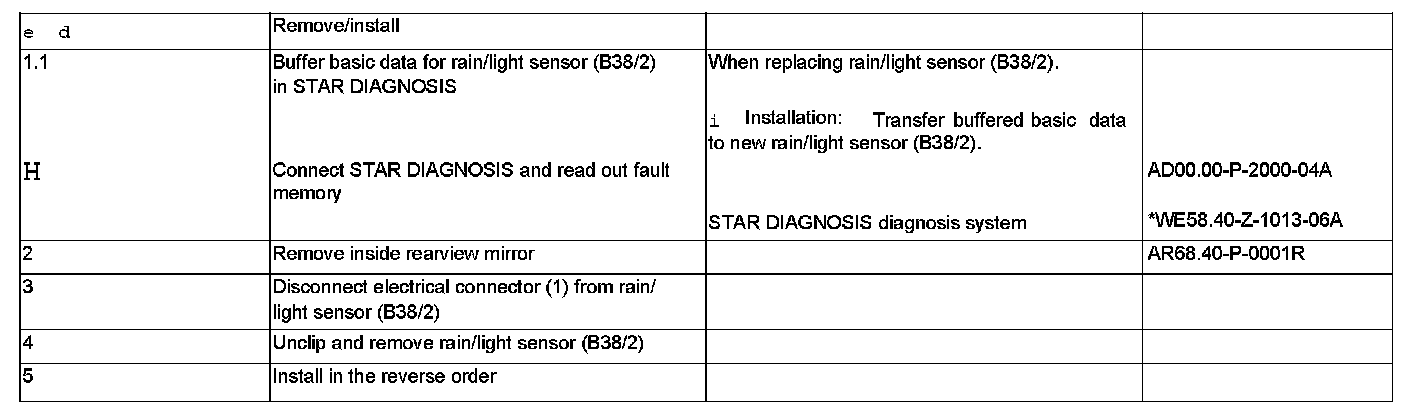

Step 1.1 - 5:
Workshop Equipment/MB Testers:
