Multifunction Sensor Location/Task/Function

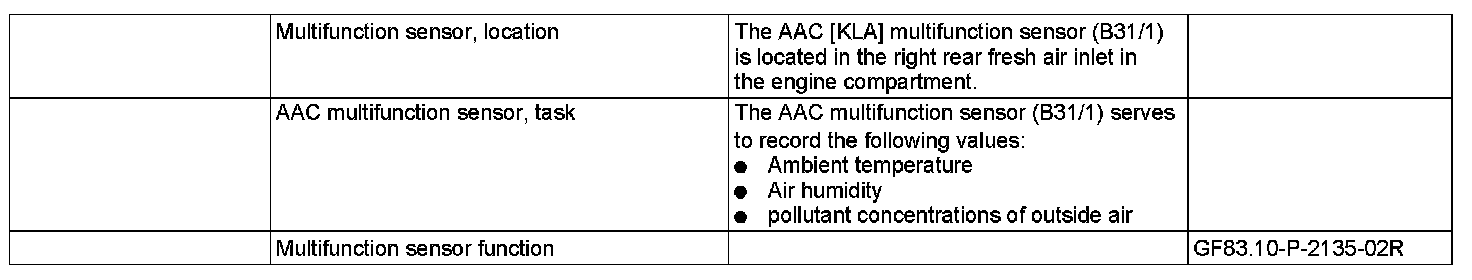

GF83.10-P-2148R Multifunction Sensor Location/task/function

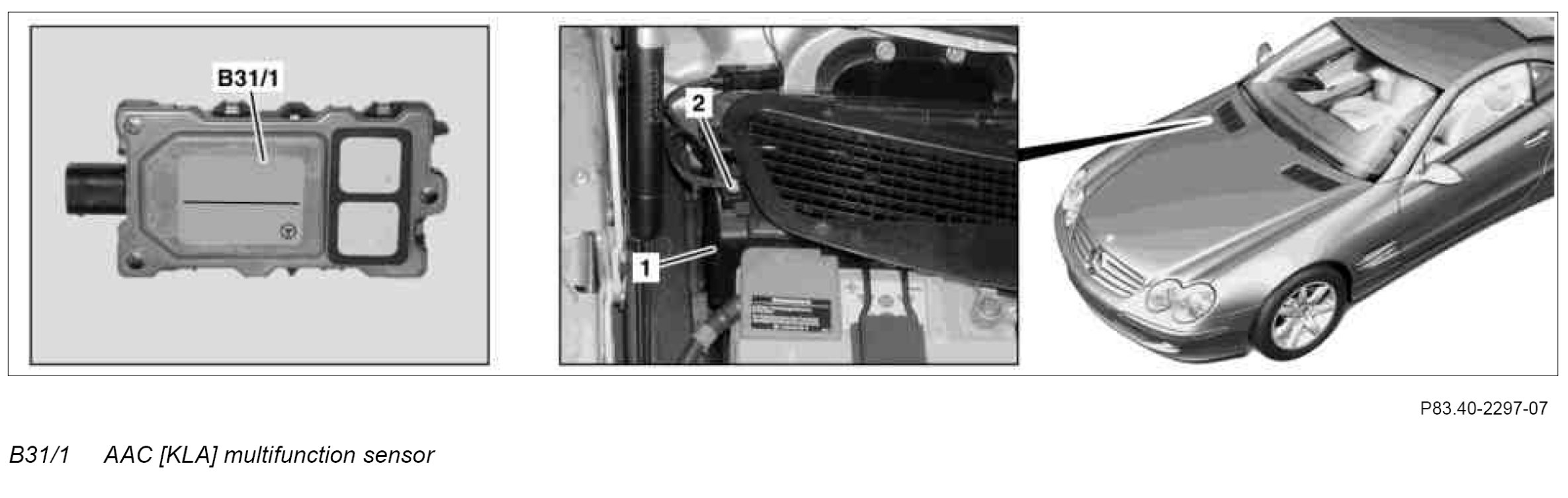

Component Identification:
