Home >> Mercedes Benz >> 2004 >> SL 55 AMG (230.474) V8-5.5L SC (113.992) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc >> System Diagram >> PE82.60-U-2301KA Satellite Digital Audio Radio (SDAR) System Control Unit

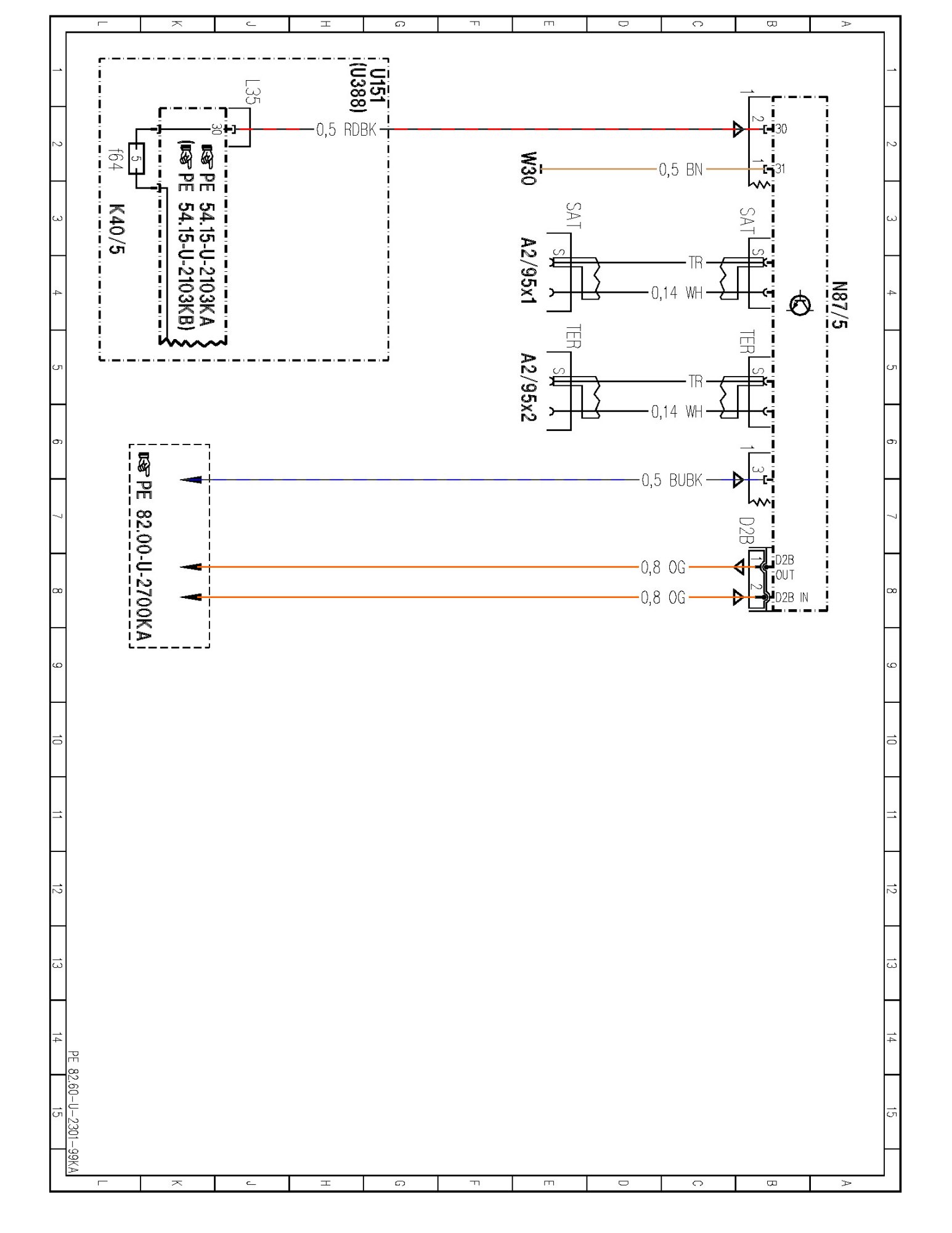

PE82.60-U-2301KA Satellite Digital Audio Radio (SDAR) System Control Unit



PE82.60-U-2301KA Satellite Digital Audio Radio (SDAR) System Control Unit
- up to 06/01/04











Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
