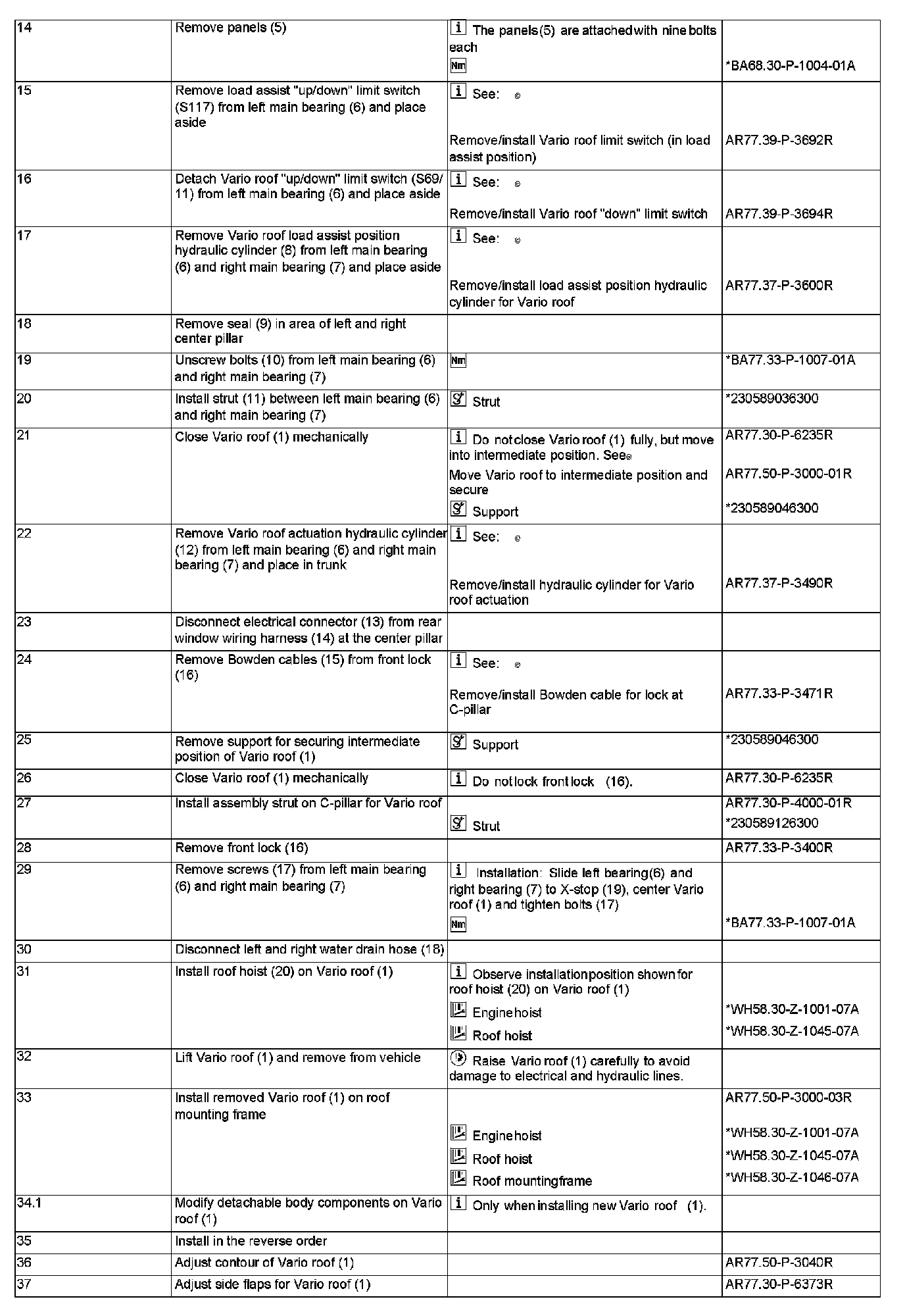

AR77.50-P-3000R Remove/Install Vario Roof



AR77.50-P-3000R Remove/Install Vario Roof

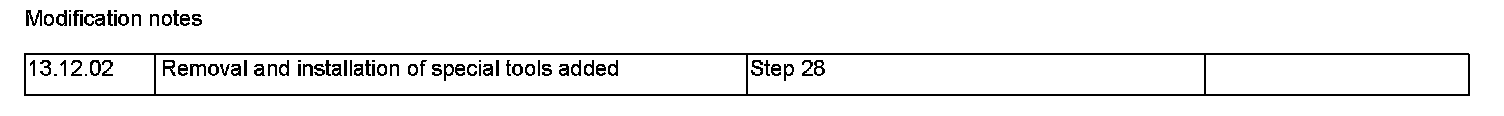

Modification Notes:






Part 1:






Part 2:

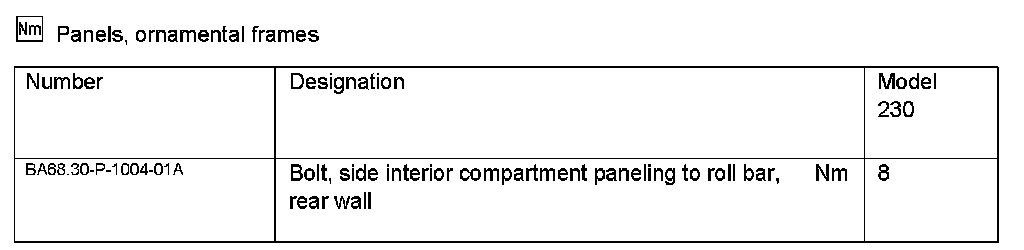

Panels, Ornamental Frames:

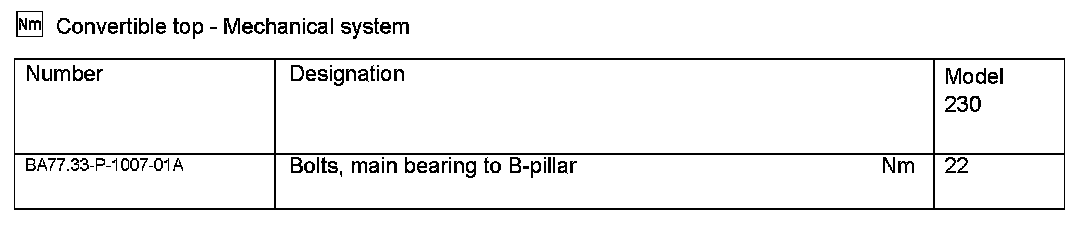

Convertible Top - Mechanical System:
