SM77.37-P-0003R Check Hydraulic Cylinder For Front Vario Roof Lock



SM77.37-P-0003R Check Hydraulic Cylinder For Front Vario Roof Lock

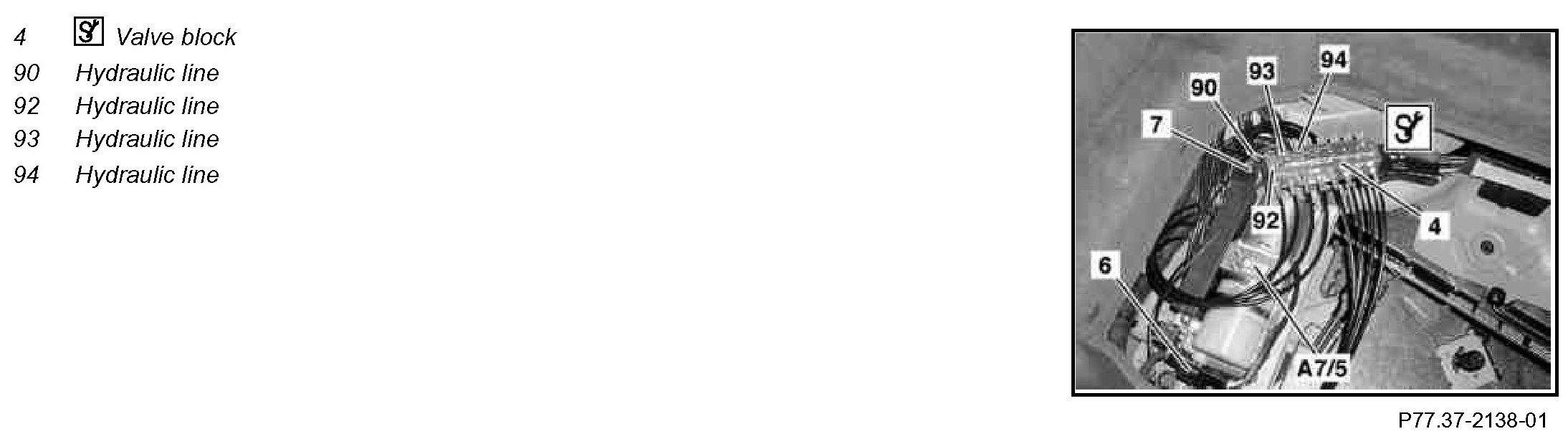

Component Identification:

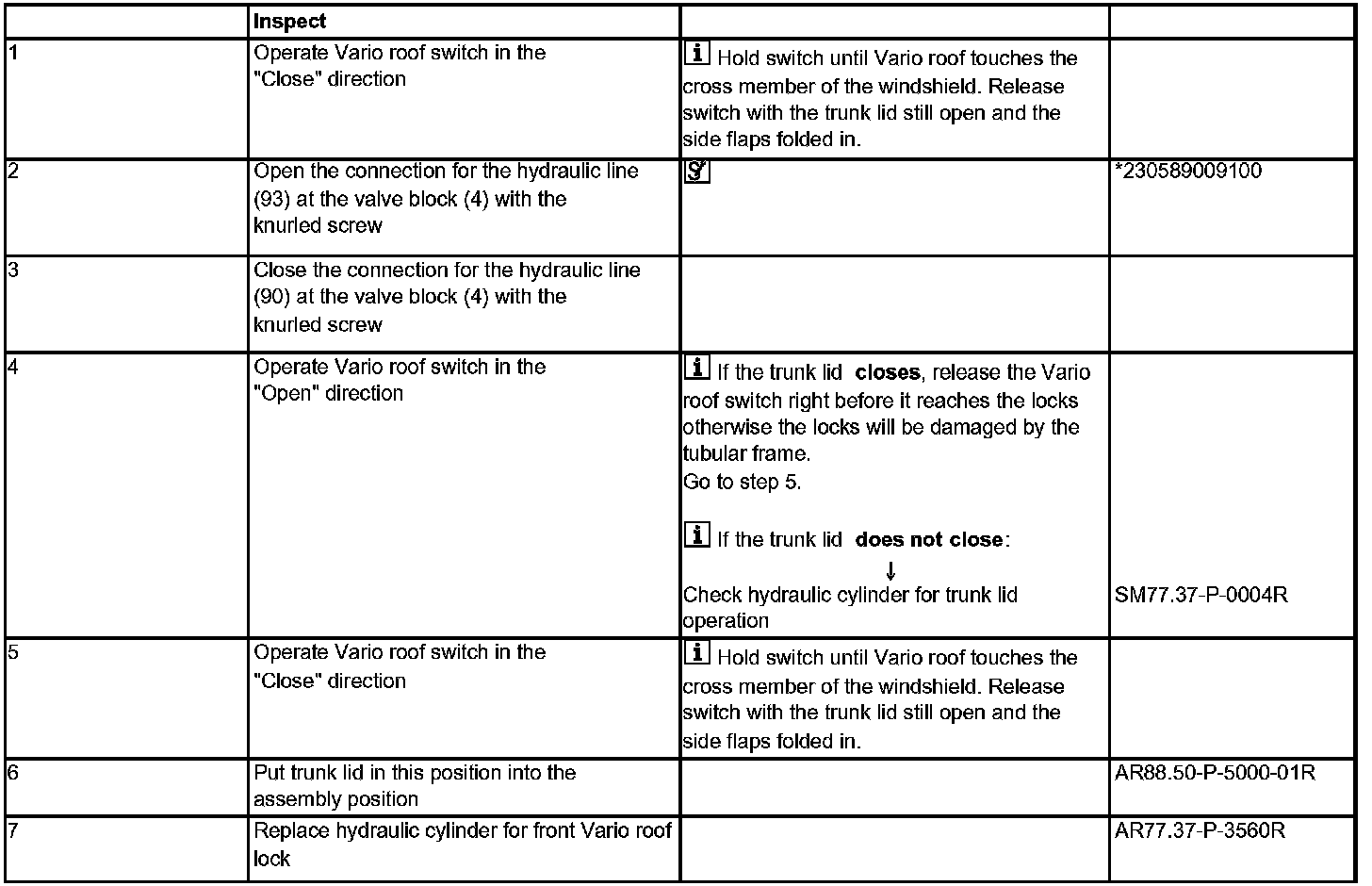

Steps 1 - 7:

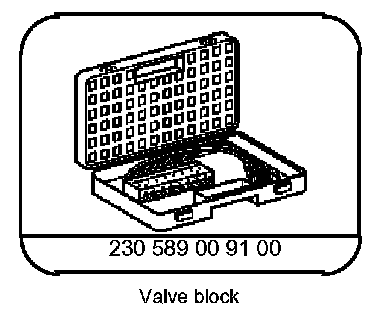

Special Tools:
