SM77.37-P-0001R Check Hydraulic Cylinder For Right Trunk Lid Lock



SM77.37-P-0001R Check Hydraulic Cylinder For Right Trunk Lid Lock

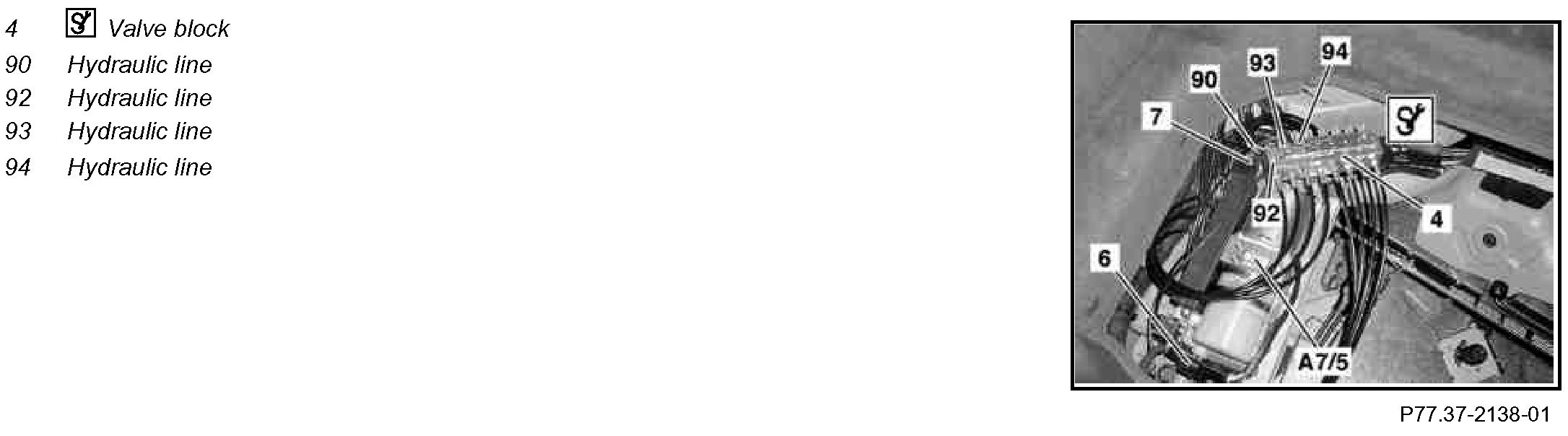

Component Identification:

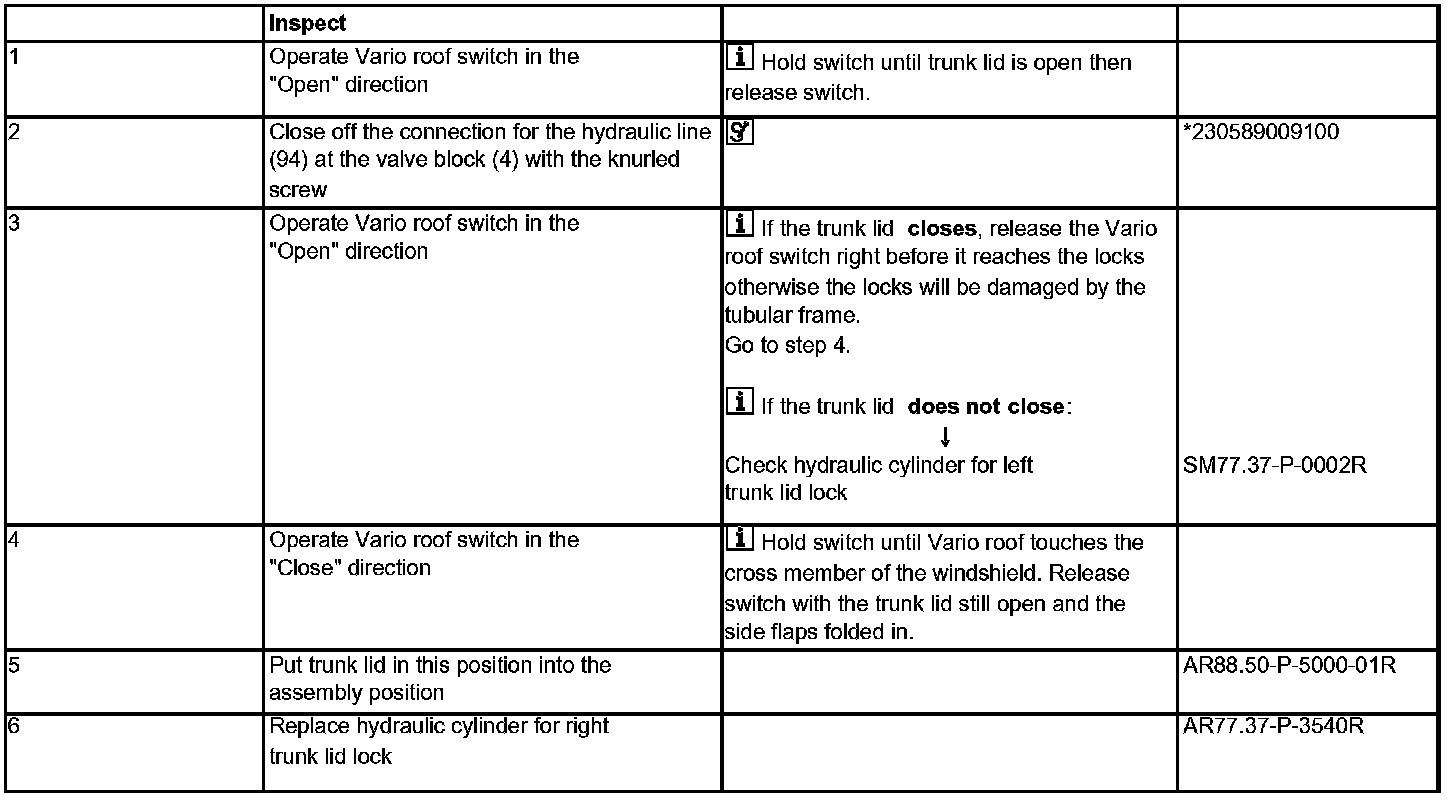

Steps 1 - 6:




Special Tools:
