SL 55 AMG (230.474) V8-5.5L SC (113.992)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Roof and Associated Components
>>
Convertible Top
>>
Convertible Top Hydraulic Cylinder
>>
Service and Repair
>>

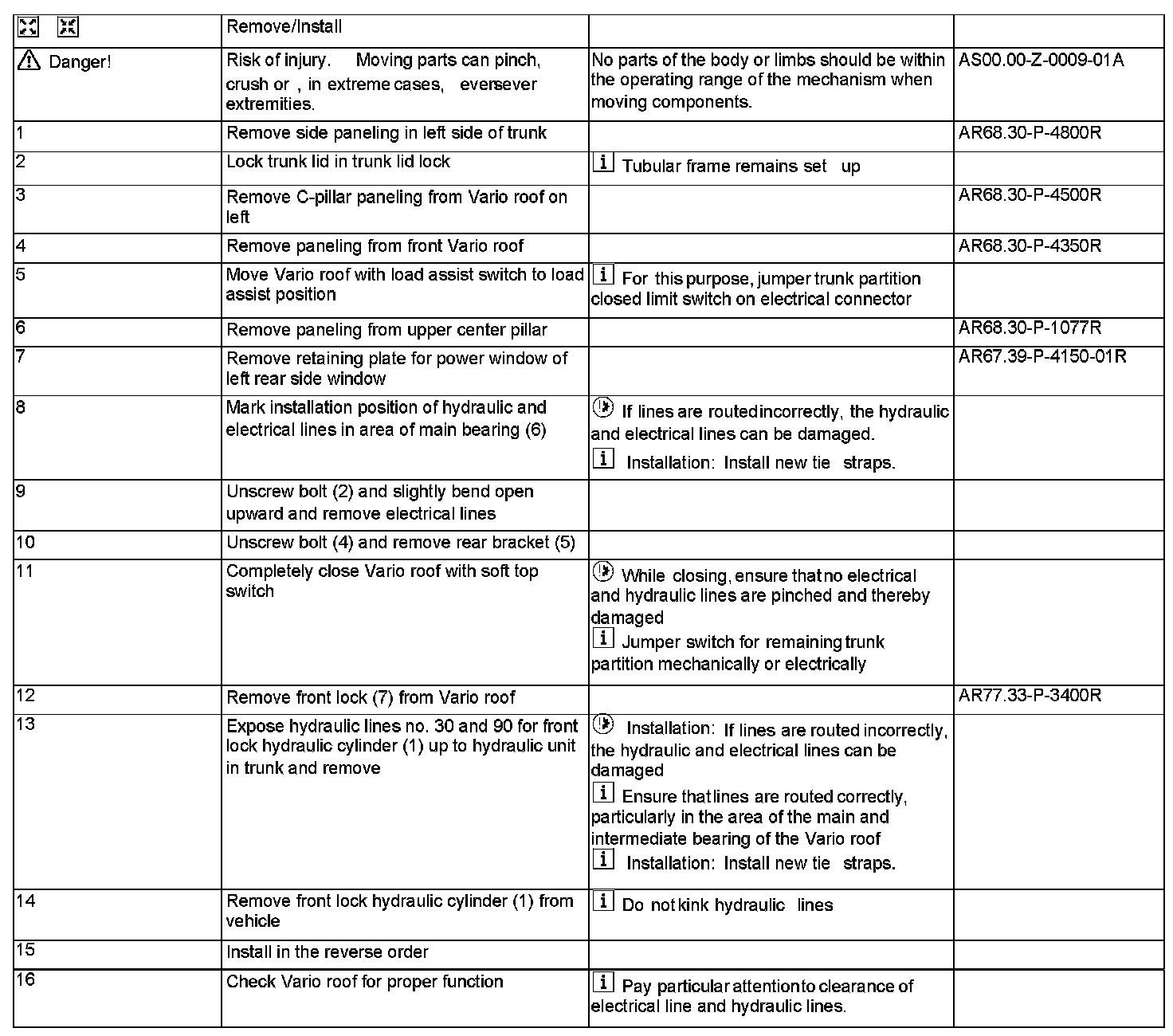

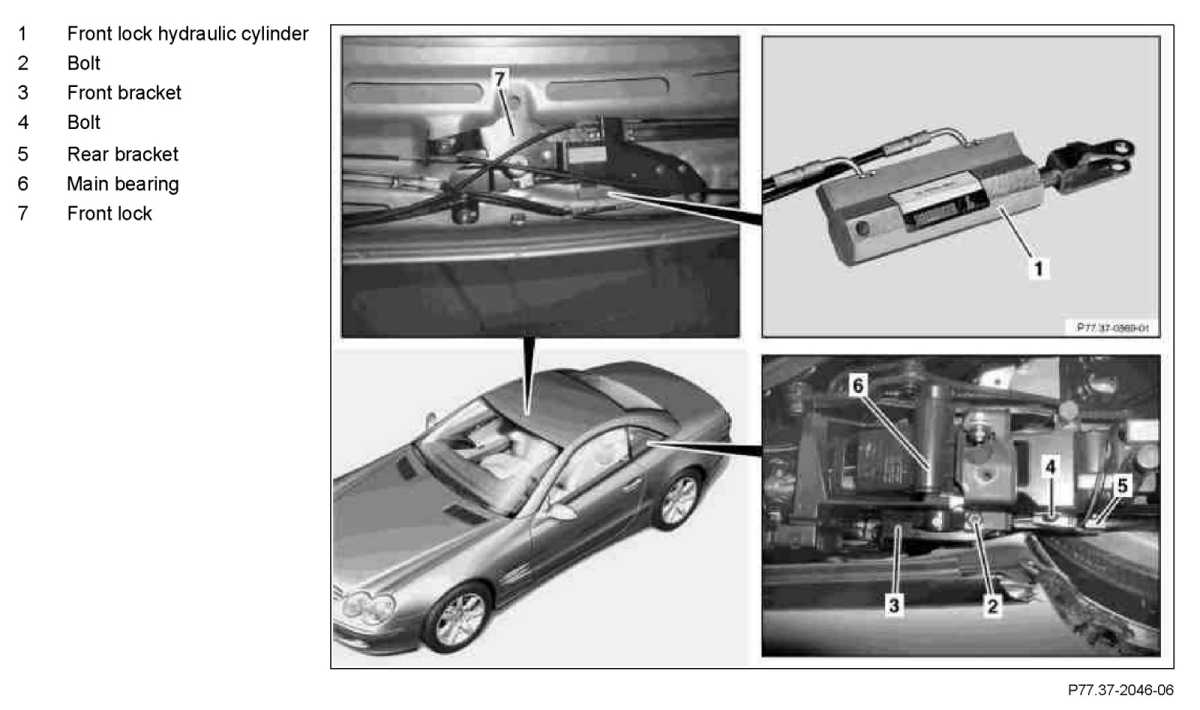

AR77.37-P-3560R Remove/Install Front Lock Hydraulic Cylinder
AR77.37-P-3560R Remove/Install Front Lock Hydraulic Cylinder
AR77.37-P-3560R Remove/Install Front Lock Hydraulic Cylinder
