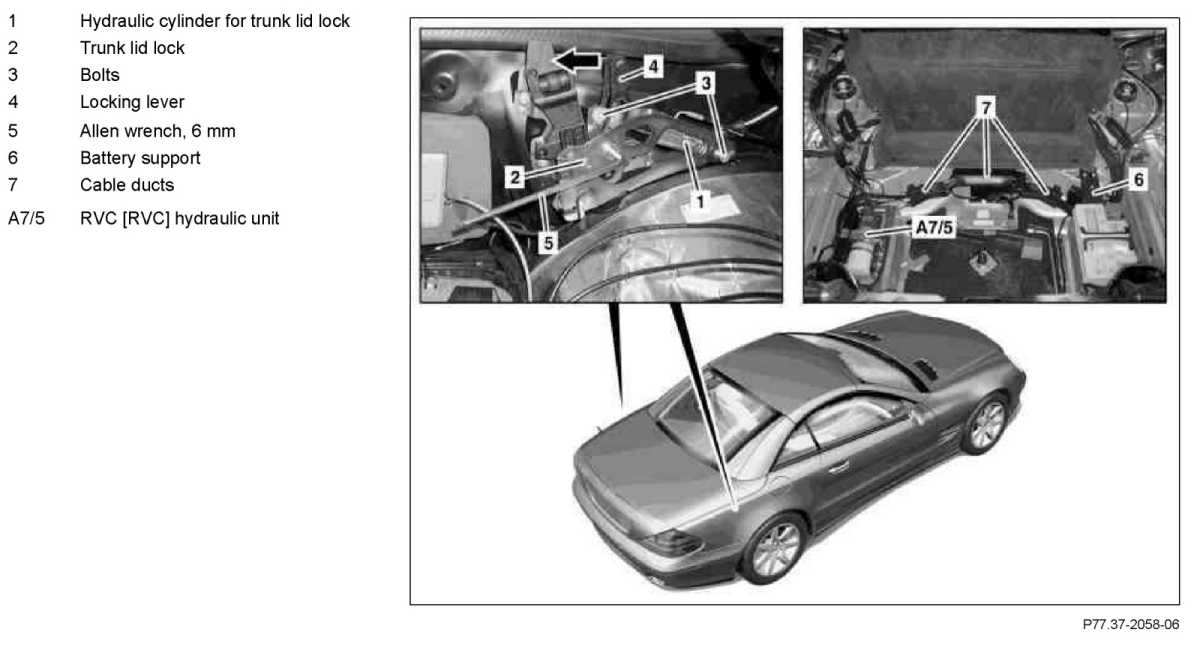

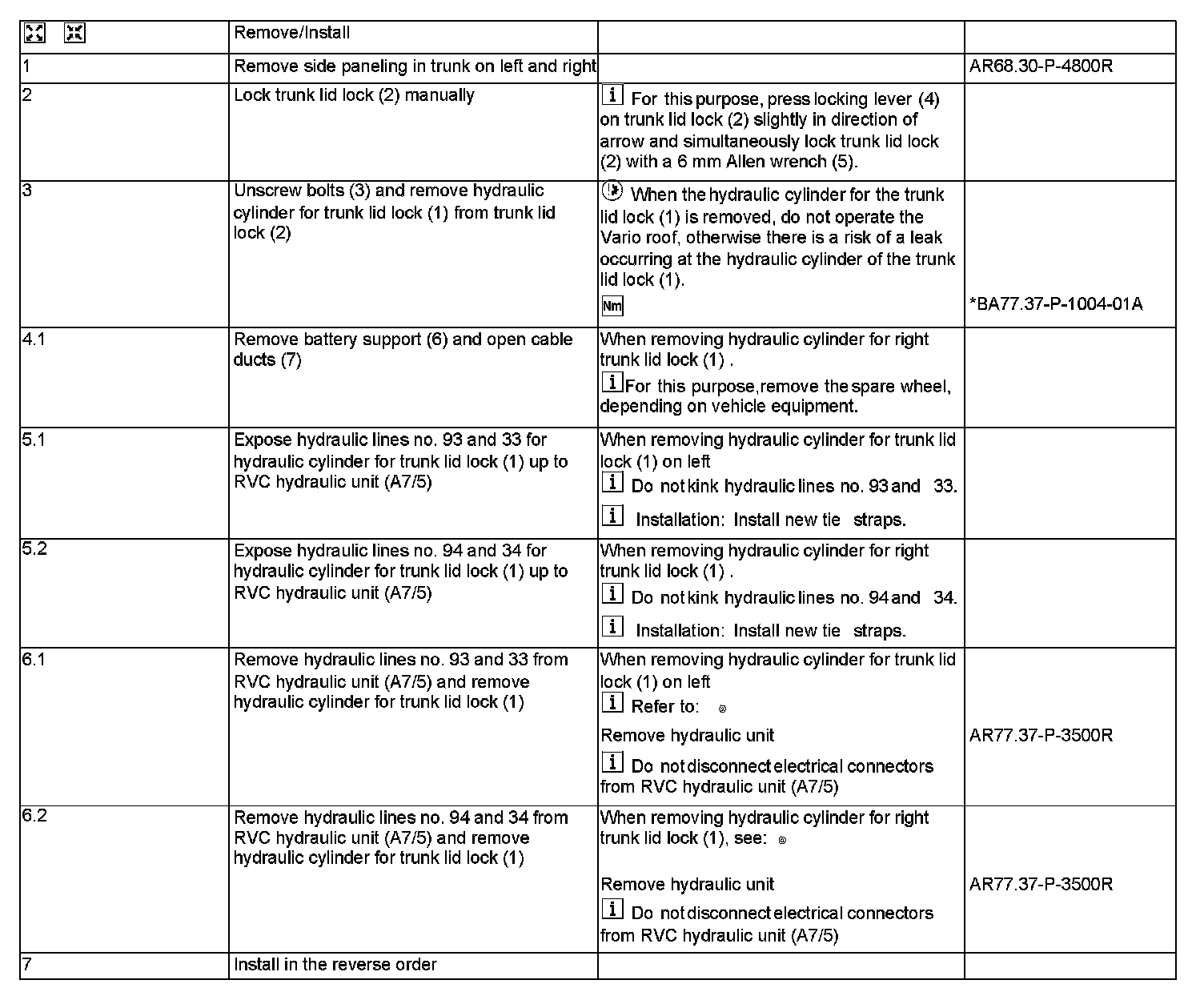

AR77.37-P-3540R Remove/Install Hydraulic Cylinder For Trunk Lid Lock
AR77.37-P-3540R Remove/Install Hydraulic Cylinder For Trunk Lid Lock
AR77.37-P-3540R Remove/Install Hydraulic Cylinder For Trunk Lid Lock

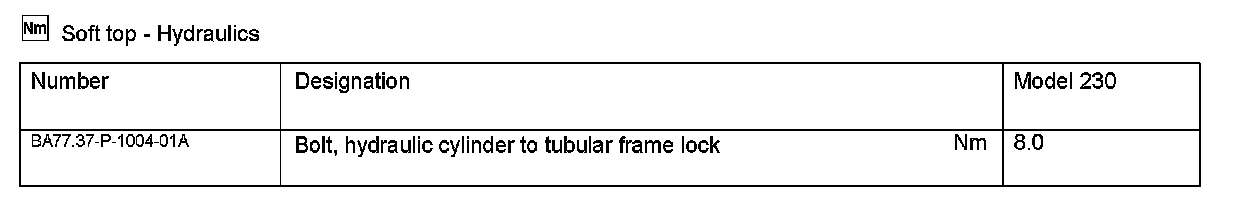

Soft Top - Hydraulics:
