Home >> Mercedes Benz >> 2004 >> SL 55 AMG (230.474) V8-5.5L SC (113.992) >> Repair and Diagnosis >> Body and Frame >> Roof and Associated Components >> Convertible Top >> Convertible Top Hydraulic Control Unit >> Locations

Convertible Top Hydraulic Control Unit: Locations

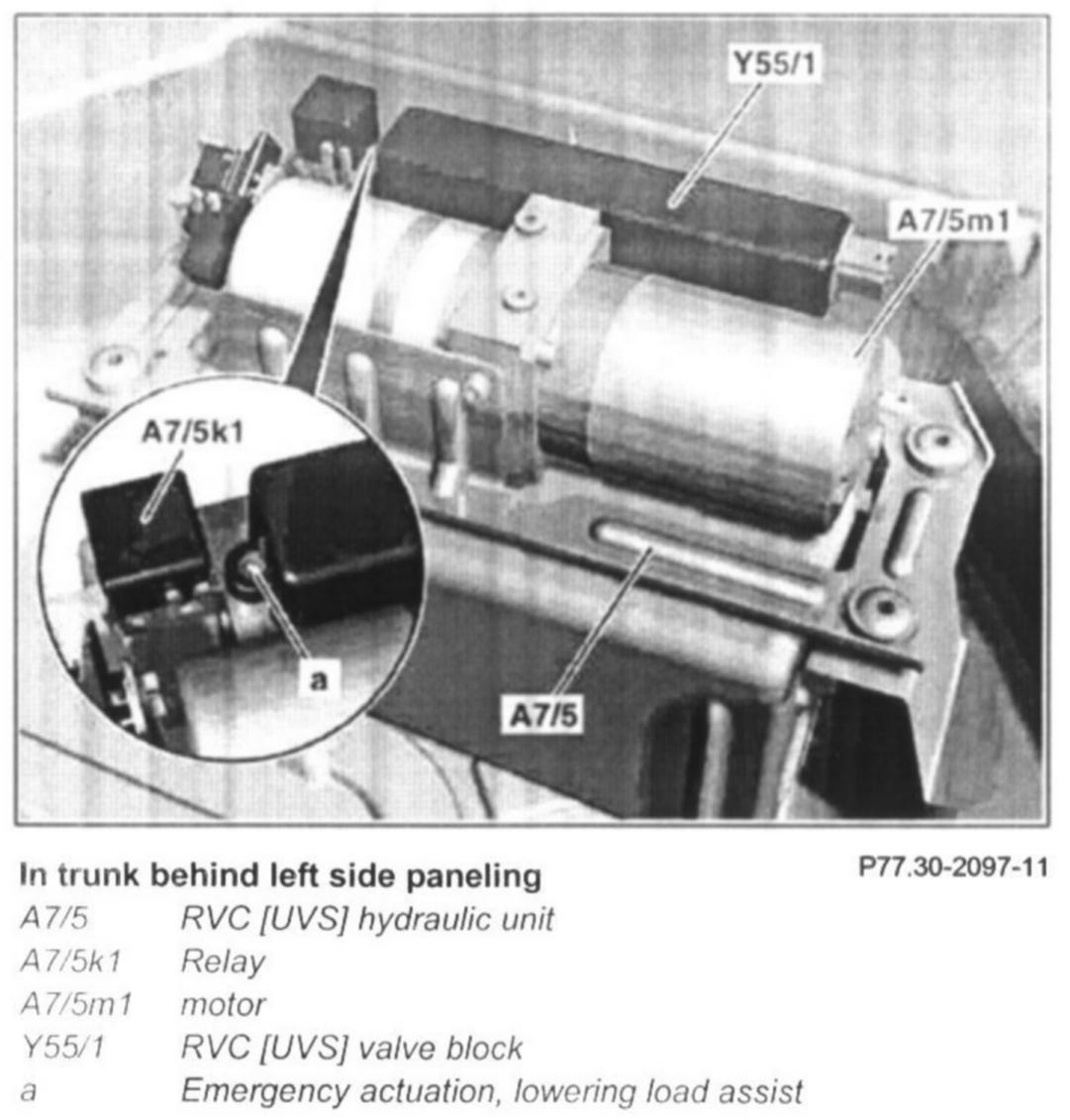

Hydraulic Unit For Rollover Bar/Vario Roof, Location
