GF80.20-P-3013R Open Trunk Lid Manually Function

GF80.20-P-3013R Open Trunk Lid Manually Function

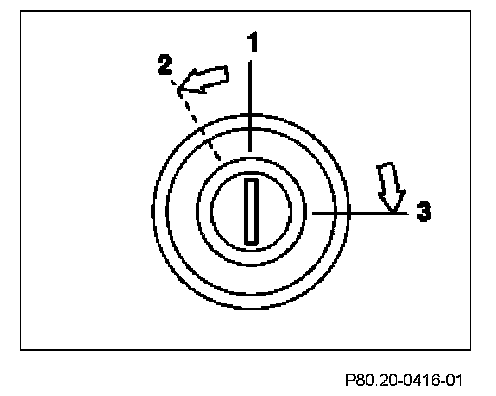

If the lock cylinder in the trunk locks is in the 0° position (1), the trunk lid lock is actuated pneumatically when the trunk lid external operation switch(S88/8) is pulled, if the vehicle is unlocked globally. If this is not the case, the mechanical key must be held in the 30° position (2) trunk lid external operation switch (S88/8) pulled in order to and the open the trunk lid manually.
It is not possible to open the trunk lid if the lock cylinder is in the 90° position (3). The trunk lid must be turned to the 0° position using the mechanical key

Opening with the mechanical key is always possible irrespective CL. of the status of the alarm is activated by the anti-theft If opening is performed with the mechanical key, an alarm (ATA). This can be terminated by inserting EIS the remote control key into the control module (N73) remote control key or by the "Opening/closing" signal of the (A8/1).
