AR68.30-P-7440RA Remove/Install Rear Luggage Box
AR68.30-P-7440RA Remove/Install Rear Luggage Box
AR68.30-P-7440RA Remove/Install Rear Luggage Box

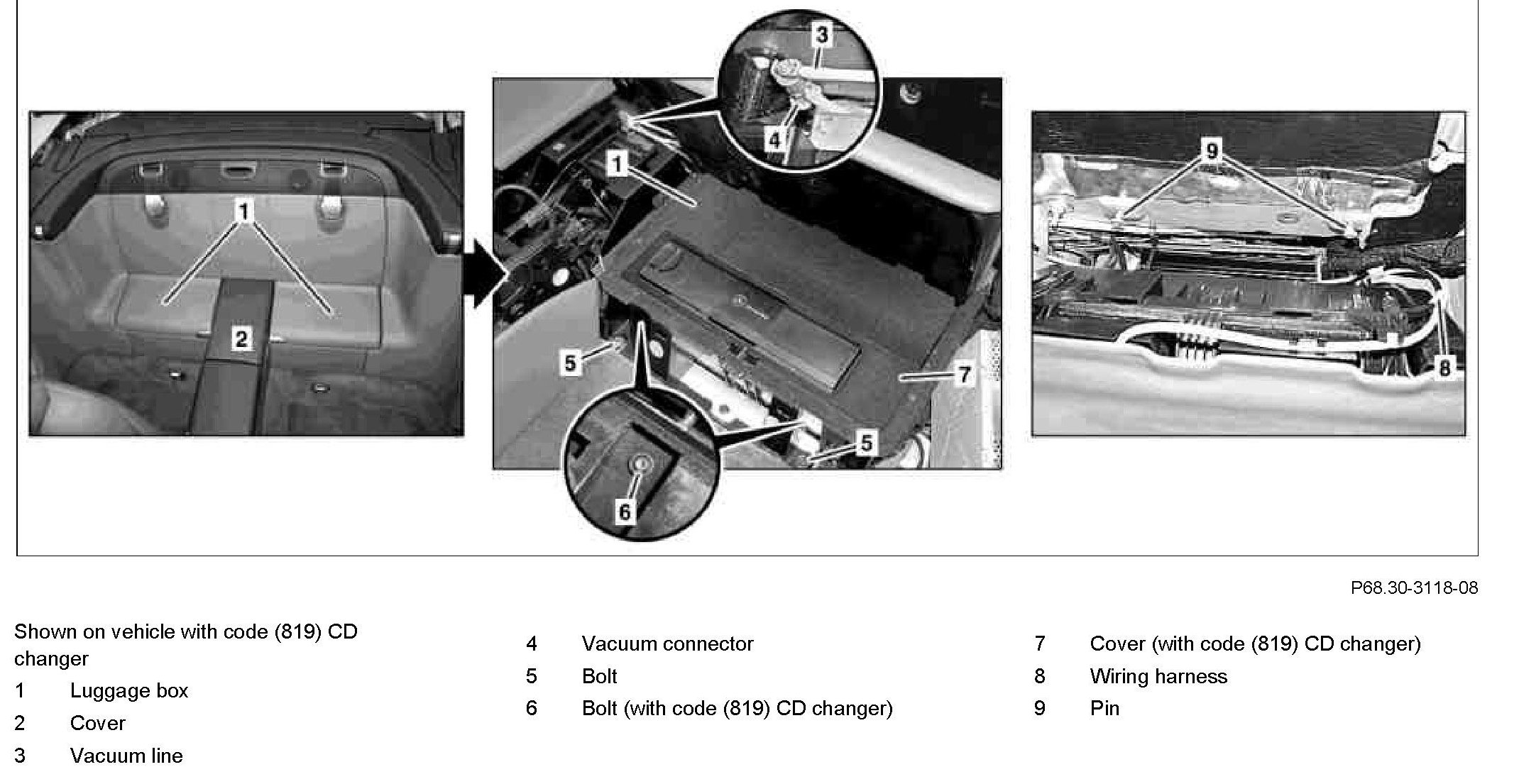

Component Identification:

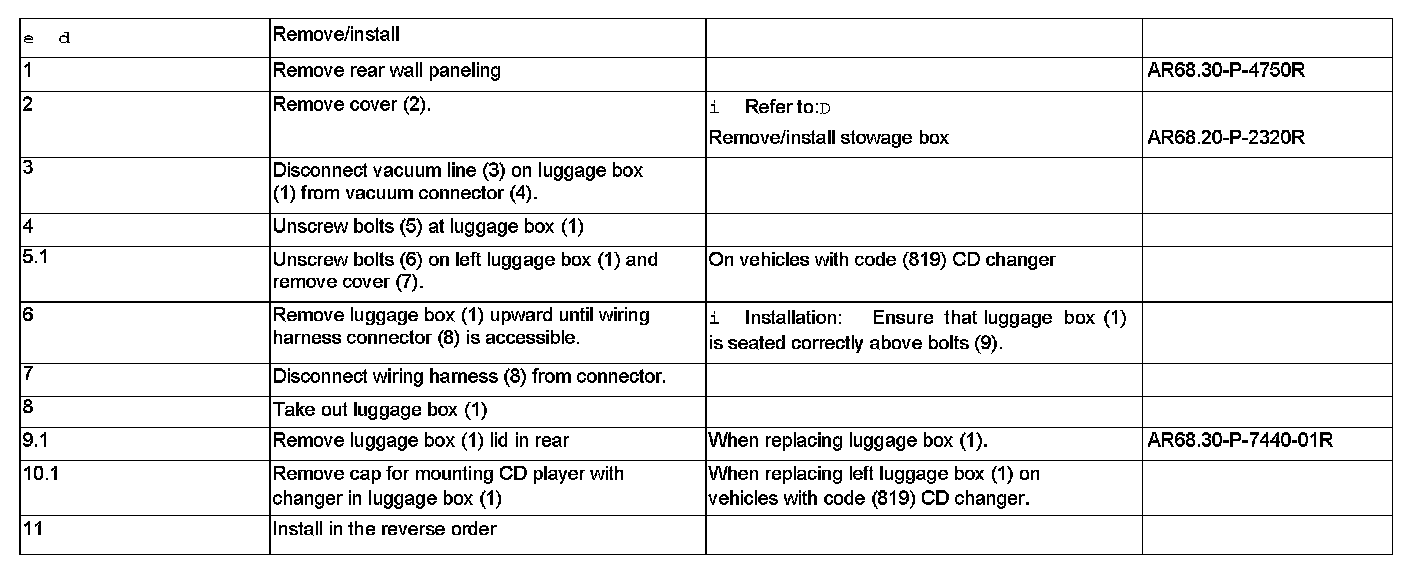

Steps 1 - 11:
