AR88.50-P-5060RBS Remove/Install Trunk Lid Handle With Lock Cylinder



AR88.50-P-5060RBS Remove/Install Trunk Lid Handle With Lock Cylinder
- with CODE (P99) Special model "AMG Black Series"

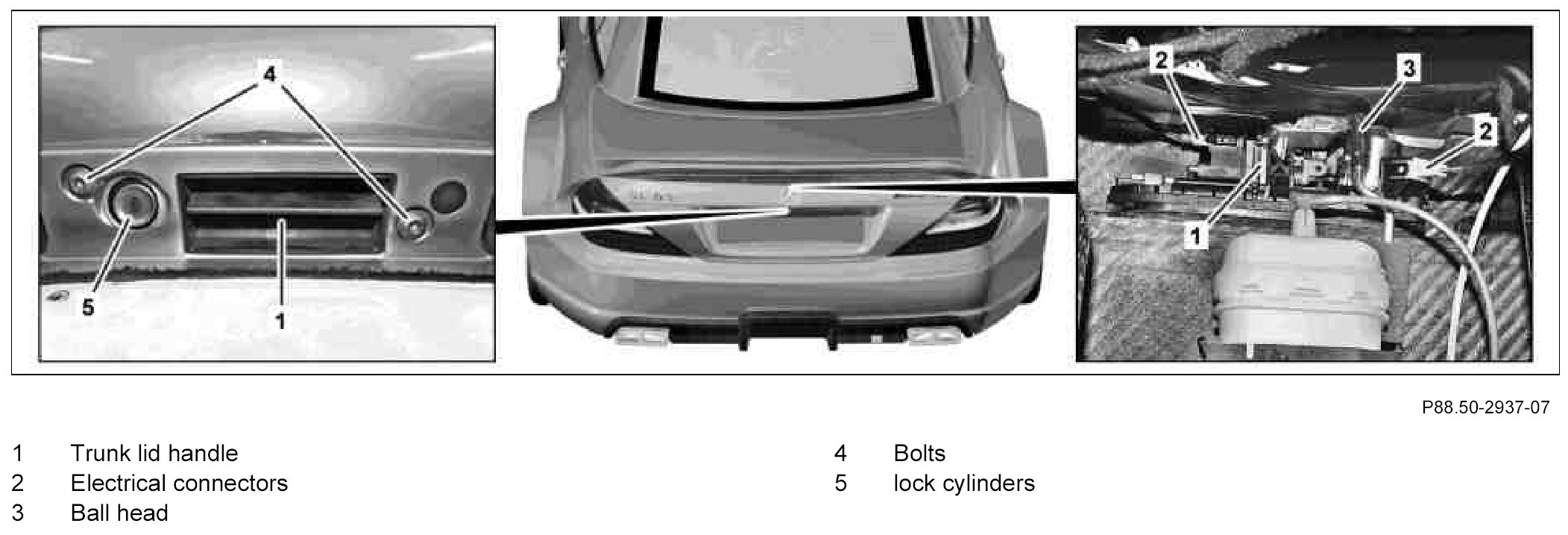

Component Identification:

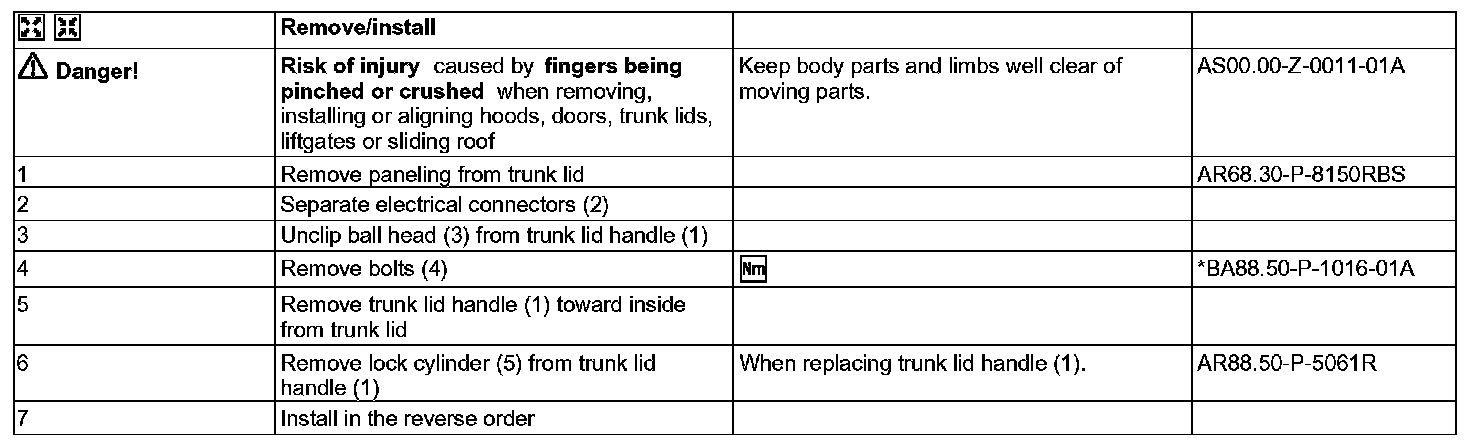

Steps 1 - 7:

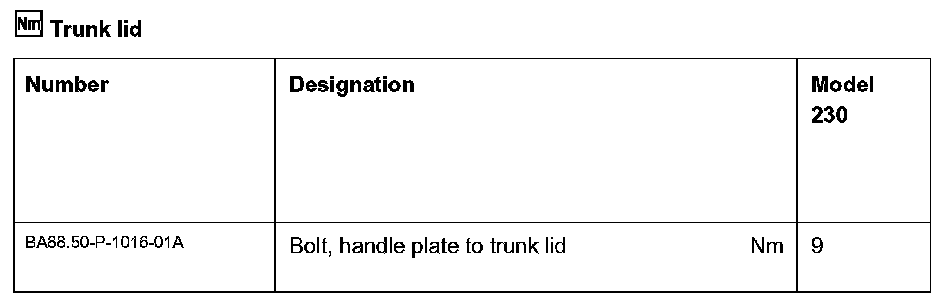

Trunk Lid:
