SL 55 AMG (230.474) V8-5.5L SC (113.992)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Doors, Hood and Trunk
>>
Trunk / Liftgate
>>
Trunk / Liftgate Handle
>>
Service and Repair
>>
Removal and Replacement
>>

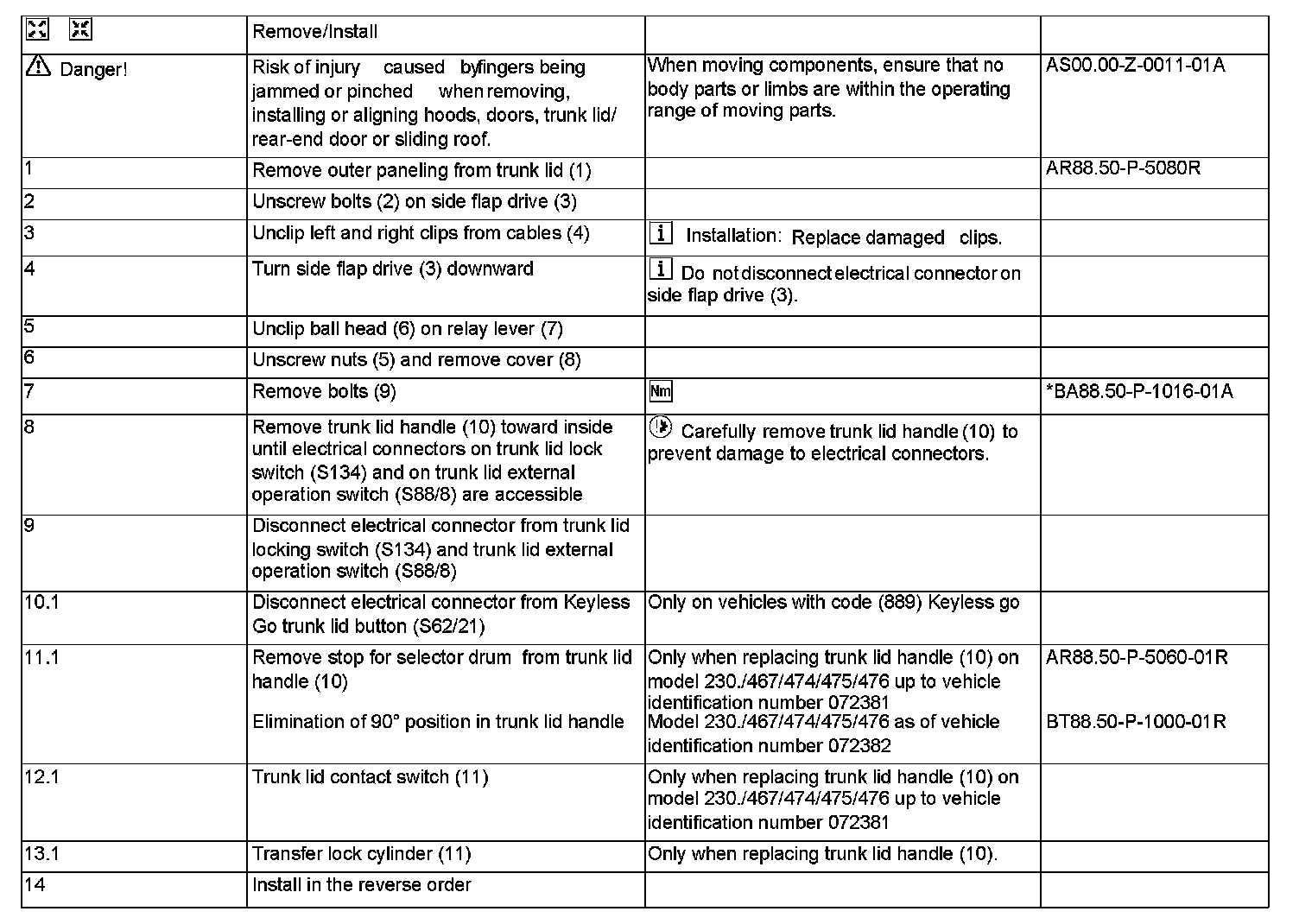

AR88.50-P-5060R Remove/Install Trunk Lid Handle With Lock Cylinder
AR88.50-P-5060R Remove/Install Trunk Lid Handle With Lock Cylinder
AR88.50-P-5060R Remove/Install Trunk Lid Handle With Lock Cylinder

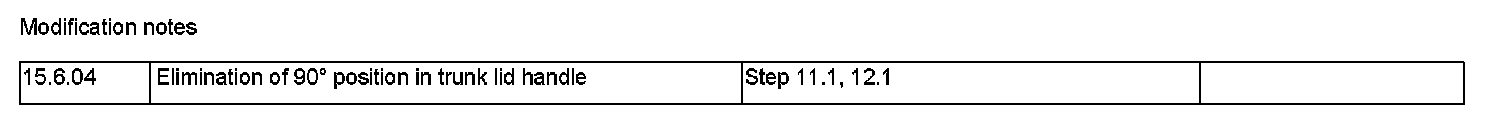

Modification Notes:

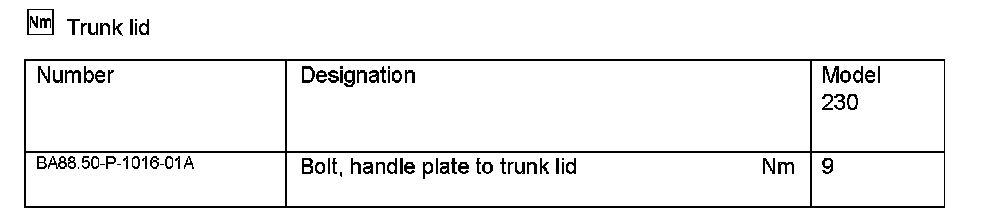

Trunk Lid:
