GF27.10-P-0001-09N Automatic Transmission (AT), Location of Hydraulic Components



GF27.10-P-0001-09N Automatic transmission (AT), location of hydraulic components
- Transmission 722.9

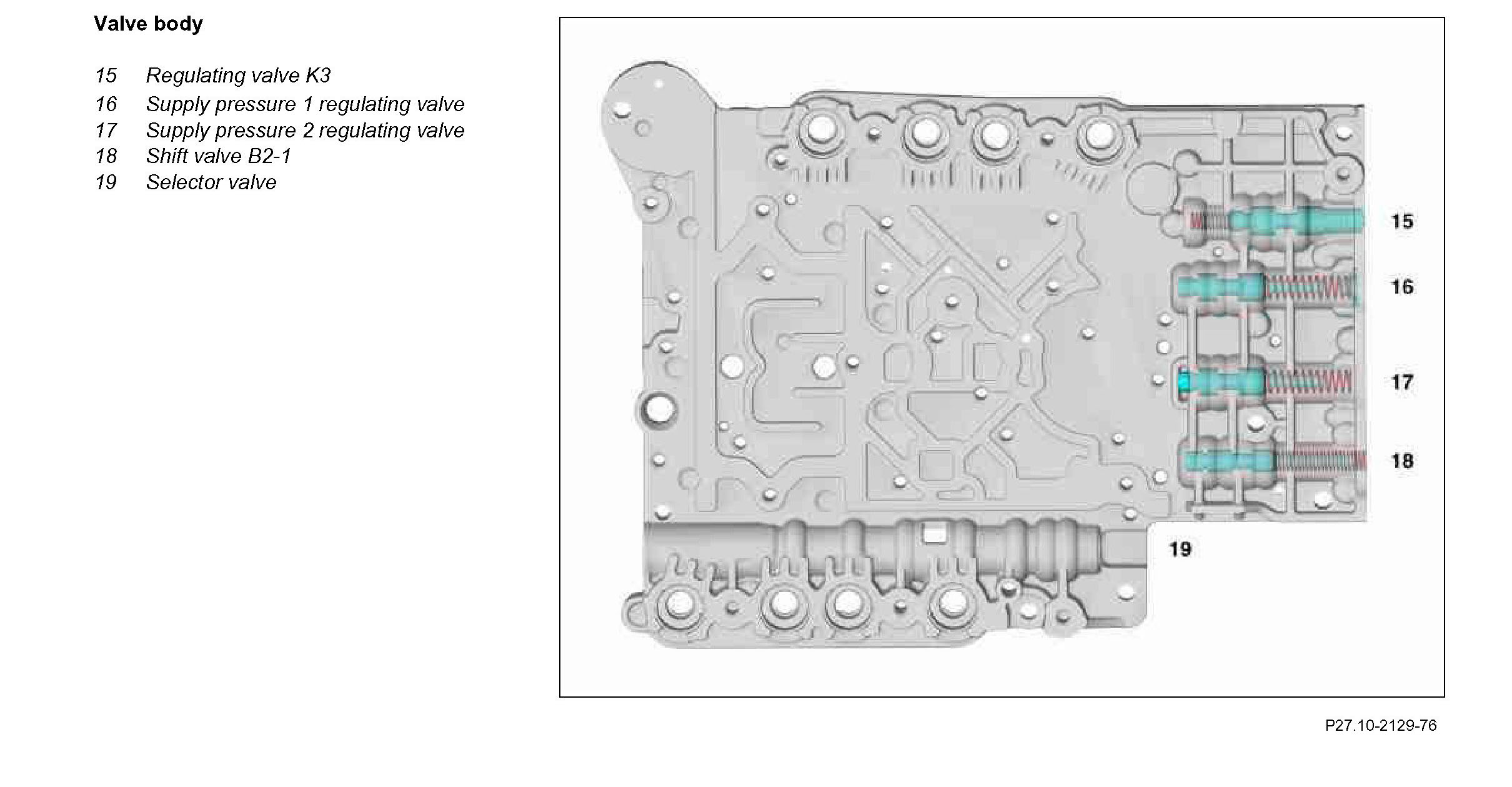

Component Identification:

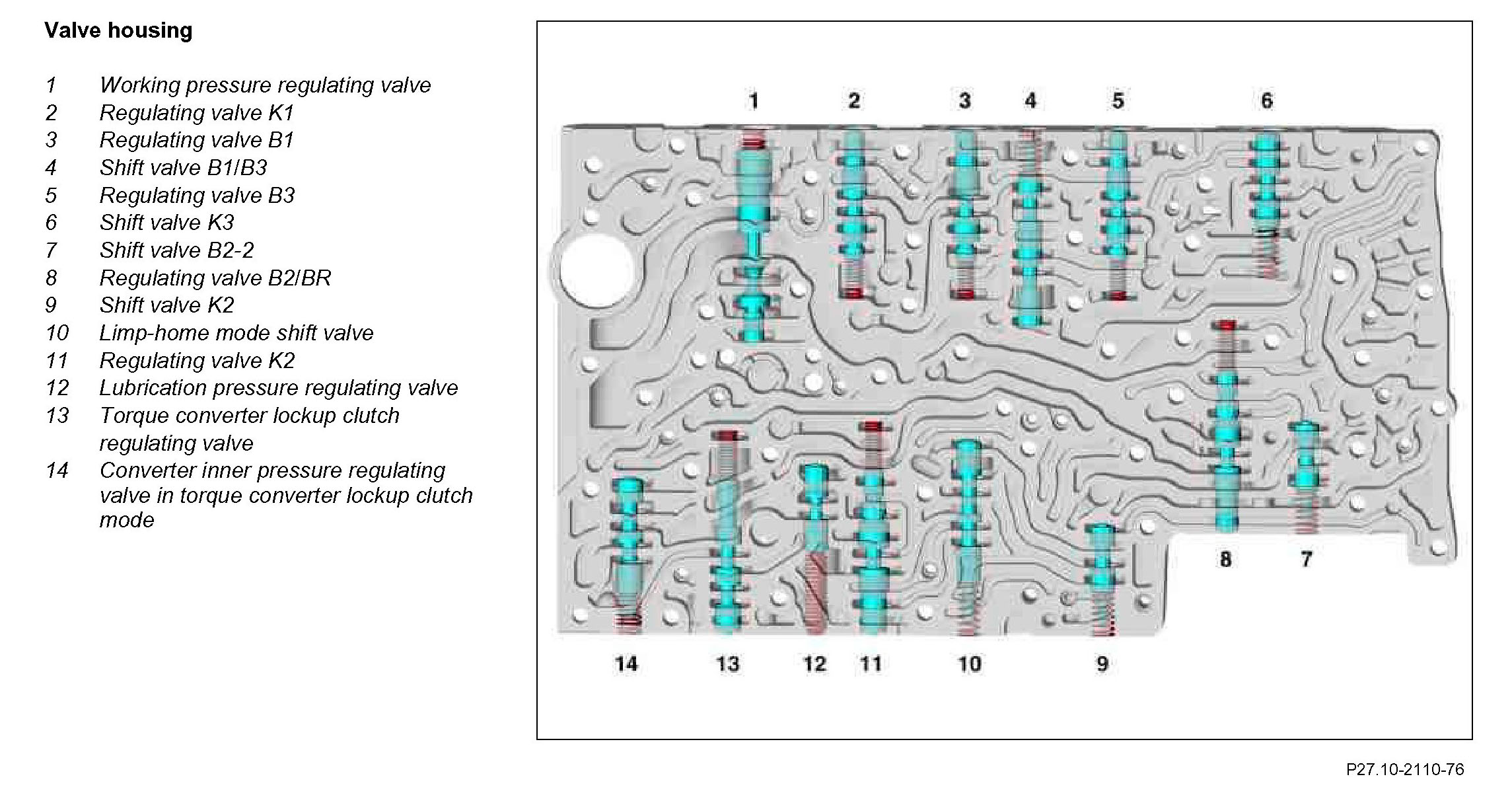

Component Identification:
